The STA-LOK 076 Long Stud Terminals range includes reusable self-fit long stud terminals for wire ropes from 4 mm to 16 mm, with imperial equivalents from 5/32" to 5/8" shown in the range table. Manufactured from high specification 316 stainless steel, these terminals are designed as a reusable alternative to swage fittings and allow damaged swaged fittings to be replaced without replacing the wire rope. They install using basic hand tools, require no pre-measurement, are packed for 1×19 wire as standard, are suitable for right hand and left hand lay wire rope, and are supplied with a split pin. The range uses right-hand UNF threads only, with thread sizes from 5/16" to 1".
- Description
- Ask a Question
-

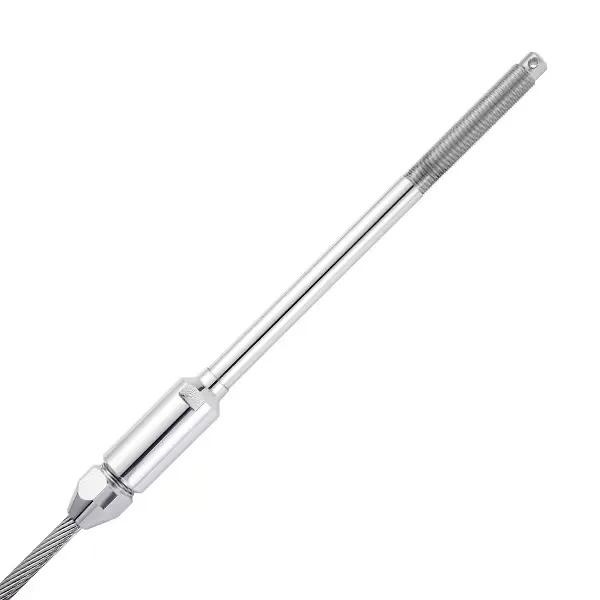

STA-LOK 076 Long Stud Terminals – Reusable 316 Stainless Steel Self-Fit Long Studs for 4–16 mm Wire Rope
The STA-LOK 076 Long Stud Terminals range is designed as a reusable alternative to swage fittings for wire rope terminations. The extended body allows replacement of damaged swaged fittings without replacing the wire rope, making these terminals suitable for onboard assembly, servicing, and emergency rigging repairs.
Manufactured from high specification 316 stainless steel, these self-fit long stud terminals are designed for strength, corrosion resistance, and long service life. They install with basic hand tools, require no pre-measurement, and are stated to be guaranteed stronger than wire rope. The terminals are packed for 1×19 wire as standard, are suitable for right hand and left hand lay wire rope, and are supplied with a split pin. The range uses right-hand thread only.
Key Features
- Sta-Lok Self-Fit Terminal, reusable alternative to swage
- Enables replacement of swaged fittings without replacing the wire rope
- Only basic hand tools required
- Quick and easy to install
- No pre-measurement needed
- Guaranteed stronger than wire rope
- Suitable for right hand and left hand lay wire rope
- Packed for 1×19 wire as standard
- Manufactured from high specification 316 stainless steel
- Supplied with split pin
- Right-hand thread only
Applications
These long stud terminals are suitable for standing rigging, emergency rigging repairs, and wire rope assemblies where a reusable extended stud fitting is required.
Technical Specifications
SKU Wire Size (Metric) Wire Size (Imperial) Thread (UNF) A (MM) A (INCH) B (MM) B (INCH) Weight (KG) Weight (LB) 076-04 4 MM 5/32" 5/16" 141.3 5.562 54.0 2.125 0.080 0.176 076-05-5/16 5 MM - 5/16" 154.0 6.062 54.0 2.125 0.120 0.265 076-05 5 MM - 3/8" 166.6 6.562 66.7 2.625 0.160 0.353 076-06-3/8 6 MM - 3/8" 180.2 7.094 66.7 2.625 0.180 0.397 076-06 6 MM - 7/16" 188.5 7.422 76.2 3.000 0.220 0.485 076-07 7 MM 9/32" 1/2" 225.4 8.875 82.6 3.250 0.380 0.838 076-08 8 MM 5/16" 1/2" 225.4 8.875 82.6 3.250 0.420 0.926 076-08-5/8 8 MM 5/16" 5/8" 271.5 10.687 95.2 3.750 0.600 1.323 076-10 10 MM - 5/8" 272.3 10.719 95.2 3.750 0.700 1.543 076-12 12 MM - 3/4" 339.7 13.375 115.1 4.531 1.300 2.866 076-14 14 MM 9/16" 7/8" 384.2 15.125 139.7 5.500 2.230 4.916 076-16 16 MM 5/8" 1" 442.0 17.041 139.7 5.500 2.850 6.283
Construction and Installation
- Reusable self-fit long stud terminal design
- Suitable for onsite or onboard assembly using basic hand tools
- Standard packing for 1×19 wire rope
- Separate wedges available for 7×7, 7×19, and compact strand constructions
- Supplied with split pin
- Right-hand thread only
-
