The STA-LOK 036 Stud Terminals range includes reusable self-fit stud terminals for wire ropes from 3 mm to 22 mm, with selected larger sizes up to 26 mm in the range table. Made from high specification 316 stainless steel, these terminals are designed as an alternative to machine swaging and can be installed using basic hand tools. They are suitable for right hand and left hand lay wire rope, supplied with a split pin, and feature right-hand UNF threads only.
- Description
- Ask a Question
-

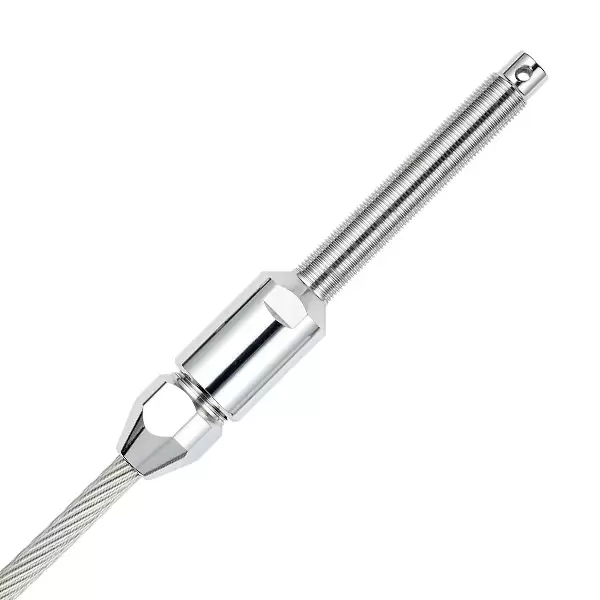

STA-LOK 036 Stud Terminals – Reusable 316 Stainless Steel Self-Fit Studs for Wire Rope
The STA-LOK 036 Stud Terminals range is designed for secure wire rope termination without machine swaging. These reusable self-fit terminals provide a strong, practical solution for marine rigging, architectural tension systems, and industrial wire rope assemblies.
Manufactured from high specification 316 stainless steel, STA-LOK stud terminals are built for corrosion resistance, strength, and long service life. They install with basic hand tools, require no pre-measurement, and are designed to be stronger than the wire rope. Each terminal is supplied with a split pin and uses a right-hand thread only.
Key Features
- Sta-Lok Self-Fit Terminal, reusable alternative to machine swaging
- Only basic hand tools required
- Quick and easy to install
- No pre-measurement needed
- Guaranteed stronger than wire rope
- Suitable for right hand and left hand lay wire rope
- Manufactured from high specification 316 stainless steel
- Supplied with split pin
- Right hand thread only
Applications
These stud terminals are suitable for use in standing rigging, turnbuckle assemblies, tensioned cable systems, and other wire rope installations where a reusable threaded terminal is required.
Technical Specifications
SKU Wire Size (Metric) Wire Size (Imperial) Thread (UNF) A (MM) A (INCH) B (MM) B (INCH) Weight (KG) Weight (LB) 036-03 3 MM 1/8" 1/4" 64.3 2.532 55.6 2.187 0.020 0.044 036-04-1/4 4 MM 5/32" 1/4" 65.0 2.562 55.6 2.187 0.040 0.088 036-04 4 MM 5/32" 5/16" 67.5 2.656 58.7 2.312 0.060 0.132 036-05-5/16 5 MM - 5/16" 70.6 2.780 58.7 2.312 0.080 0.176 036-05 5 MM - 3/8" 78.0 3.062 66.7 2.625 0.080 0.176 036-06-3/8 6 MM - 3/8" 84.0 3.312 66.7 2.625 0.120 0.265 036-06 6 MM - 7/16" 93.0 3.656 74.6 2.937 0.140 0.309 036-07-7/16 7 MM 9/32" 7/16" 95.0 3.750 74.6 2.937 0.180 0.397 036-07 7 MM 9/32" 1/2" 97.0 3.812 81.0 3.187 0.200 0.441 036-08 8 MM 5/16" 1/2" 98.0 3.875 81.0 3.187 0.240 0.529 036-08-5/8 8 MM 5/16" 5/8" 110.0 4.343 95.2 3.750 0.300 0.661 036-10 10 MM - 5/8" 111.0 4.375 95.2 3.750 0.360 0.794 036-10-3/4 10 MM - 3/4" 129.0 5.062 123.8 4.875 0.480 1.058 036-12 12 MM - 3/4" 139.0 5.468 123.8 4.875 0.760 1.676 036-12-7/8 12 MM - 7/8" 168.0 5.625 139.7 5.500 0.880 1.940 036-14 14 MM 9/16" 7/8" 170.0 6.687 139.7 5.500 1.300 2.866 036-14-1 14 MM 9/16" 1" 170.0 6.687 139.7 5.500 1.420 3.131 036-16 16 MM 5/8" 1" 171.0 6.750 139.7 5.500 1.660 3.660 036-19 19 MM 3/4" 1 1/8" 213.0 8.375 171.5 6.750 3.140 6.923 036-22 22 MM 7/8" 1 1/4" 275.0 10.812 227.0 8.937 4.540 10.009 036-26 26 MM 1" 1 3/8" 284.0 11.187 232.0 9.125 5.100 11.244
Construction and Installation
- Self-fit terminal design for reusable installation
- No machine swaging required
- Fits both right hand and left hand lay wire rope
- Split pin included
- Right-hand thread only
-
