ID
1355740
$ 14.69
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 7
- 8
- 10
- 12
- 14
- 16
- 19
- 22
Item:
- M6 RH
- M6 LH
- M8 RH
- M10 RH
- M12 RH
- M16 RH
- M20 RH
- M22 RH
- M24 RH
- M27 RH
- M30 RH
The STA-LOK 061 Closed Body Swage Stud range includes 316 stainless steel swage studs for 3 mm to 26 mm wire rope, with metric threads from M6 to M36 and both right-hand and left-hand thread options. These studs are designed for use with rotary and fixed die swaging machines and are intended for closed body turnbuckles only. They are suitable for 1×19, 7 strand, and compacted strand wire rope (IWRC), compatible with metric and inch wire ropes, require a minimum hole depth of 10× wire diameter, and are supplied without a nut. When using compacted strand wire rope, down-sized thread options are not suitable.
- Description
- Ask a Question
-

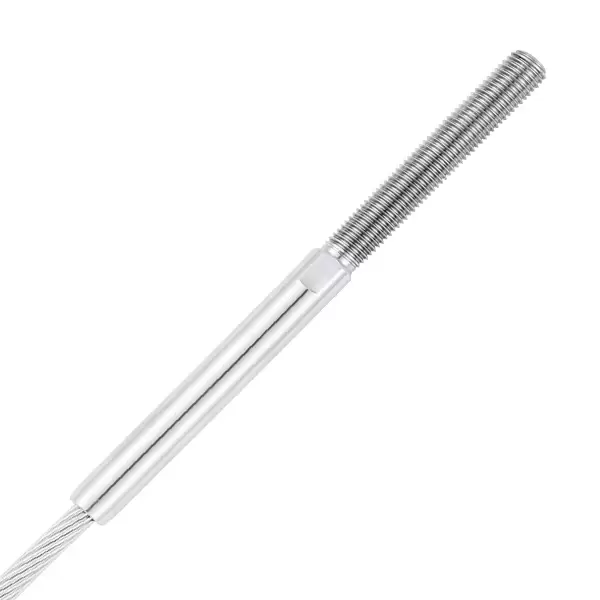

STA-LOK 061 Closed Body Swage Studs – 316 Stainless Steel Swage Studs for Closed Body Turnbuckles, 3–26 mm Wire Rope
The STA-LOK 061 Closed Body Swage Studs range is designed for wire rope terminations used with closed body turnbuckles only. These swage studs are manufactured from high specification 316 stainless steel and are intended for use with rotary and fixed die swaging machines.
The range covers wire sizes from 3 mm to 26 mm, with thread sizes from M6 to M36. Both right-hand and left-hand thread versions are available. These studs are suitable for 1×19, 7 strand, and compacted strand wire rope (IWRC), for both metric and inch wire rope sizes. Minimum hole depth must be 10× wire diameter. Nut supplied separately.
Key Features
- Swage stud design for closed body turnbuckles only
- Suitable for rotary and fixed die swaging machines
- Manufactured from high specification 316 stainless steel
- Suitable for 1×19, 7 strand, and compacted strand wire rope (IWRC)
- Compatible with metric and inch wire ropes
- Minimum hole depth: 10× wire diameter
- Available in right-hand and left-hand thread versions
- Nut supplied separately
Important Note
- When using compacted strand wire ropes, it is not suitable to use down-sized thread options
Applications
These swage studs are intended for wire rope assemblies using closed body turnbuckles where a swaged threaded terminal is required for tensioning and adjustment.
Technical Specifications
SKU Wire Size (Metric) Wire Size (Imperial) Thread (Metric) A (MM) A (INCH) B (MM) B (INCH) Weight (KG) Weight (LB) Thread Type 061-03-M6L 3 MM 1/8" M6 6.2 0.244 56.0 2.206 0.020 0.044 Left Hand 061-03-M6R 3 MM 1/8" M6 6.2 0.244 56.0 2.206 0.020 0.044 Right Hand 061-04-M6L 4 MM 5/32" M6 7.4 0.292 56.0 2.206 0.027 0.060 Left Hand 061-04-M6R 4 MM 5/32" M6 7.4 0.292 56.0 2.206 0.027 0.060 Right Hand 061-04-M8L 4 MM 5/32" M8 7.4 0.292 60.0 2.364 0.044 0.097 Left Hand 061-04-M8R 4 MM 5/32" M8 7.4 0.292 60.0 2.364 0.044 0.097 Right Hand 061-05-M8L 5 MM 3/16" M8 9.0 0.355 60.0 2.364 0.045 0.099 Left Hand 061-05-M8R 5 MM 3/16" M8 9.0 0.355 60.0 2.364 0.045 0.099 Right Hand 061-05-M10L 5 MM 3/16" M10 9.0 0.355 67.0 2.640 0.058 0.128 Left Hand 061-05-M10R 5 MM 3/16" M10 9.0 0.355 67.0 2.640 0.058 0.128 Right Hand 061-06-M10L 6 MM - M10 12.4 0.489 67.0 2.640 0.081 0.179 Left Hand 061-06-M10R 6 MM - M10 12.4 0.489 67.0 2.640 0.081 0.179 Right Hand 061-06-M12L 6 MM - M12 12.4 0.489 81.0 3.191 0.116 0.256 Left Hand 061-06-M12R 6 MM - M12 12.4 0.489 81.0 3.191 0.116 0.256 Right Hand 061-07-M12L 7 MM 9/32" M12 14.2 0.559 81.0 3.191 0.160 0.353 Left Hand 061-07-M12R 7 MM 9/32" M12 14.2 0.559 81.0 3.191 0.160 0.353 Right Hand 061-08-M12L 8 MM 5/16" M12 16.1 0.634 81.0 3.191 0.183 0.403 Left Hand 061-08-M12R 8 MM 5/16" M12 16.1 0.634 81.0 3.191 0.183 0.403 Right Hand 061-08-M16L 8 MM 5/16" M16 16.1 0.634 100.0 3.940 0.280 0.611 Left Hand 061-08-M16R 8 MM 5/16" M16 16.1 0.634 100.0 3.940 0.280 0.611 Right Hand 061-10-M16L 10 MM - M16 17.7 0.697 100.0 3.940 0.320 0.705 Left Hand 061-10-M16R 10 MM - M16 17.7 0.697 100.0 3.940 0.320 0.705 Right Hand 061-12-M20L 12 MM - M20 21.4 0.843 124.0 4.886 0.579 1.276 Left Hand 061-12-M20R 12 MM - M20 21.4 0.843 124.0 4.886 0.579 1.276 Right Hand 061-14-M22L 14 MM 9/16" M22 25.0 0.985 140.0 5.516 0.856 1.887 Left Hand 061-14-M22R 14 MM 9/16" M22 25.0 0.985 140.0 5.516 0.856 1.887 Right Hand 061-16-M24L 16 MM 5/8" M24 28.2 1.111 162.0 6.378 1.178 2.597 Left Hand 061-16-M24R 16 MM 5/8" M24 28.2 1.111 162.0 6.378 1.178 2.597 Right Hand 061-19-M27L 19 MM 3/4" M27 34.5 1.359 184.0 7.250 2.100 4.630 Left Hand 061-19-M27R 19 MM 3/4" M27 34.5 1.359 184.0 7.250 2.100 4.630 Right Hand 061-22-M30L 22 MM 7/8" M30 40.3 1.588 200.0 7.880 3.220 7.099 Left Hand 061-22-M30R 22 MM 7/8" M30 40.3 1.588 200.0 7.880 3.220 7.099 Right Hand 061-26-M36L 26 MM 1" M36 45.8 1.805 220.0 8.668 4.000 8.818 Left Hand 061-26-M36R 26 MM 1" M36 45.8 1.805 220.0 8.668 4.000 8.818 Right Hand
Construction and Installation
- Closed body swage stud design
- For use with closed body turnbuckles only
- Suitable for rotary and fixed die swaging processes
- Right-hand and left-hand thread versions available across the range
- Nut supplied separately
-
