ID
1355843
$ 104.13
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 7
- 8
- 10
- 12
Item:
- 3/8
- 7/16
- 1/2
- 5/8
- 3/4
The STA-LOK 078 Long Eye Terminals range includes reusable self-fit eye terminals for wire ropes from 5 mm to 16 mm, with imperial equivalents up to 5/8". Manufactured from high specification 316 stainless steel, these terminals provide a reusable alternative to swage fittings and allow installation using basic hand tools without pre-measurement. They are suitable for right hand and left hand lay wire rope, packed for 1×19 wire as standard, and wedges are available for 7 strand and compacted strand wire ropes. Pin sizes range from 3/8" to 1", depending on the model.
- Description
- Ask a Question
-

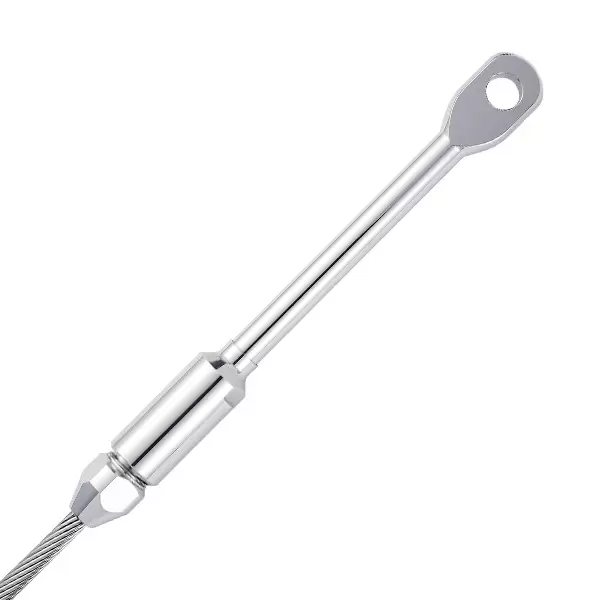

STA-LOK 078 Long Eye Terminals – 316 Stainless Steel Self-Fit Eye Terminals for 5–16 mm Wire Rope
The STA-LOK 078 Long Eye Terminals are reusable self-fit terminals designed for secure wire rope termination without the need for swaging. The long eye design allows straightforward replacement of damaged fittings without replacing the wire rope.
Manufactured from high specification 316 stainless steel, these terminals provide corrosion resistance and strength for marine and industrial applications. Installation is carried out using basic hand tools and does not require pre-measurement. The terminals are stated to be stronger than the wire rope and suitable for demanding rigging conditions.
They are suitable for right hand and left hand lay wire rope, supplied for 1×19 wire as standard, with wedges available for 7 strand and compacted strand wire ropes.
Key Features
- Sta-Lok Self-Fit Terminal, reusable alternative to swage
- Replacement of fittings without replacing the wire rope
- Installation using basic hand tools
- No pre-measurement required
- Guaranteed stronger than wire rope
- Suitable for right hand and left hand lay wire rope
- Packed for 1×19 wire as standard
- Manufactured from high specification 316 stainless steel
- Wedges available for 7 strand and compacted strand wire ropes
Applications
- Standing rigging
- Wire rope assemblies
- Emergency rigging repairs
- Marine and industrial cable systems
Technical Specifications
SKU Wire Size (Metric) Wire Size (Imperial) A (MM) A (INCH) B (MM) B (INCH) D (MM) D (INCH) H (MM) H (INCH) Weight (KG) Weight (LB) 078-05 5 MM - 106.0 4.187 82.5 3.250 7.5 0.295 9.8 3/8" 0.120 0.265 078-06-3/8 6 MM - 126.0 4.875 100.0 3.937 7.5 0.295 9.8 3/8" 0.200 0.441 078-06 6 MM - 126.0 4.875 100.0 3.937 9.5 0.375 11.5 7/16" 0.200 0.441 078-06-1/2 6 MM - 147.0 5.750 117.5 4.625 12.0 0.472 13.0 1/2" 0.260 0.573 078-07 7 MM 9/32" 147.0 5.781 117.5 4.625 12.0 0.472 13.0 1/2" 0.300 0.661 078-08 8 MM 5/16" 147.0 5.781 117.5 4.625 12.0 0.472 13.0 1/2" 0.360 0.794 078-08-5/8 8 MM 5/16" 175.0 6.889 136.4 5.369 13.5 0.531 16.0 5/8" 0.540 1.190 078-10 10 MM - 175.0 6.889 136.4 5.369 13.5 0.531 16.0 5/8" 0.640 1.411 078-12 12 MM - 254.0 10.000 205.8 8.102 19.0 0.748 19.5 3/4" 1.300 2.866 078-14 14 MM 9/16" 330.0 13.000 280.5 11.000 21.0 0.827 22.5 7/8" 2.100 4.630 078-16 16 MM 5/8" 320.0 12.600 303.6 11.955 24.0 0.945 25.6 1" 2.700 5.952
Construction and Installation
- Reusable self-fit long eye terminal design
- Installation using basic hand tools
- No pre-measurement required
- Supplied for 1×19 wire rope
- Wedges available for alternative wire constructions
-
