The STA-LOK 039 Swage Eyes for Wire Ropes are stainless steel eye terminals designed for use with rotary and fixed die swaging machines. Manufactured from high specification 316 stainless steel, they are suitable for 1×19, 7 strand, and compacted strand wire rope (IWRC) in both metric and inch sizes. The range includes forged and machined versions depending on size and requires a minimum hole depth of 10× wire diameter.
- Description
- Ask a Question
-
STA-LOK 039 Swage Eyes for Wire Ropes – 316 Stainless Steel Swage Eye Terminals
The STA-LOK 039 Swage Eyes for Wire Ropes are precision eye terminals designed for secure swaged wire rope terminations in marine, rigging, and industrial applications. Manufactured from high specification 316 stainless steel, they provide high corrosion resistance and long service life in demanding environments.
These terminals are suitable for use with rotary and fixed die swaging machines and can be used with 1×19, 7 strand, and compacted strand wire rope (IWRC). They are suitable for both metric and inch wire ropes.

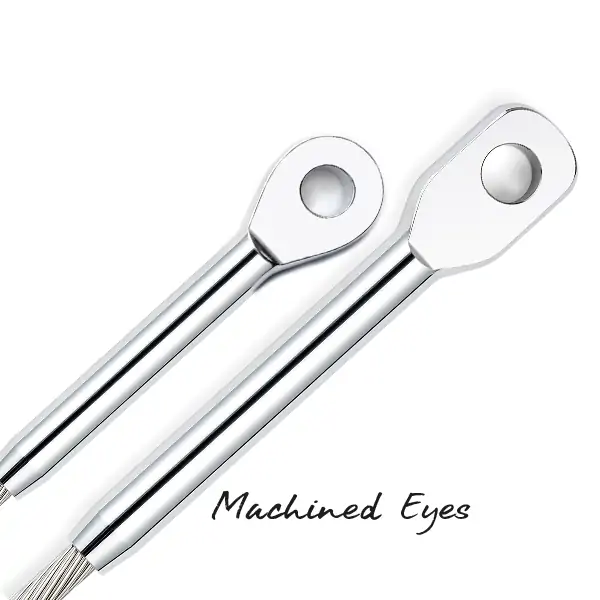

The range includes forged versions for smaller sizes and machined versions for larger sizes. For correct installation, a minimum hole depth of 10× wire diameter is required.
Key Features
- Manufactured from high specification 316 stainless steel
- Suitable for rotary and fixed die swaging machines
- Designed for wire rope eye terminations
- Compatible with 1×19, 7 strand, and compacted strand wire rope (IWRC)
- Suitable for metric and inch wire ropes
- Minimum hole depth: 10× wire diameter
- Available in forged and machined versions depending on size
Available Variants
Item Number Type Wire Size A (mm) D (mm) Eye H (mm) Weight (kg) ST039-03 Forged 3 mm (1/8") 6.2 5.0 6.4 0.020 ST039-04 Forged 4 mm (5/32") 7.4 6.5 8.1 0.020 ST039-05 Forged 5 mm (3/16") 9.0 7.8 9.6 0.040 ST039-06 Forged 6 mm 12.4 9.5 11.2 0.080 ST039-07 Forged 7 mm (9/32") 14.2 11.5 12.8 0.120 ST039-08 Forged 8 mm (5/16") 16.1 13.5 14.5 0.180 ST039-08-1/2 Forged 8 mm (5/16") 16.1 11.5 12.8 0.140 ST039-08-5/8 Forged 8 mm (5/16") 16.1 15.0 16.1 0.180 ST039-10 Forged 10 mm 17.7 15.0 16.1 0.240 ST039-12 Machined 12 mm 21.4 18.0 19.5 0.520 ST039-14 Machined 14 mm (9/16") 25.0 21.0 22.5 0.800 ST039-16 Machined 16 mm (5/8") 28.2 24.4 25.7 1.180 ST039-19 Machined 19 mm (3/4") 34.5 27.5 28.6 1.900 ST039-22 Machined 22 mm (7/8") 40.3 32.0 32.0 2.800
Technical Information
- Material: 316 stainless steel
- Product type: Swage eye terminal
- Installation method: Rotary or fixed die swaging machine
- Wire compatibility: 1×19, 7 strand, and compacted strand wire rope (IWRC)
- Wire size range: 3–22 mm
- Minimum hole depth: 10× wire diameter
-
