ID
1355577
$ 14.07
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 7
- 8
- 10
Item:
- Eye 13.0 mm
- Eye 16.5 mm
The STA-LOK 039N Swage Narrow Eyes are 316 stainless steel swage terminals designed for wire ropes from 3 mm to 10 mm. They provide a compact narrow-eye connection for rigging systems and are compatible with rotary and fixed die swaging machines. Suitable for 1×19, 7-strand, and compacted strand (IWRC) wire ropes, they require a minimum hole depth of 10× the wire diameter.
- Description
- Ask a Question
-

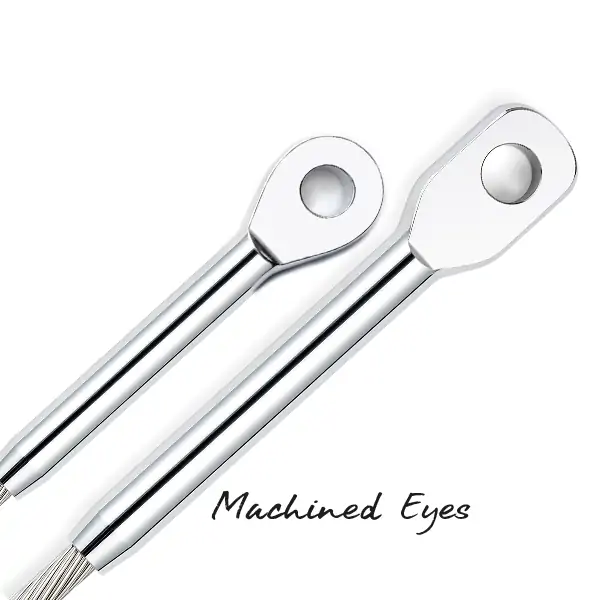

STA-LOK 039N Swage Narrow Eye – 316 Stainless Steel Swage Eyes for Wire Rope
The STA-LOK 039N Swage Narrow Eye is a precision swaged terminal designed for stainless steel wire rope assemblies. Manufactured from high specification 316 stainless steel, it provides a strong, corrosion-resistant connection suitable for marine and rigging applications.
The narrow eye profile allows installation in compact setups while maintaining reliable strength and durability. These swage eyes are compatible with rotary and fixed die swaging machines and support multiple wire rope constructions including 1×19, 7-strand, and compacted strand wire ropes (IWRC).
Key Features
- Manufactured from high specification 316 stainless steel
- Narrow eye design for compact installations
- Compatible with rotary and fixed die swaging machines
- Suitable for 1×19, 7 strand, and compacted strand wire ropes (IWRC)
- Works with both metric and inch wire ropes
- Minimum hole depth required: 10 × wire diameter
Available Variants
Item Number Wire Size A (mm) D (mm) Eye (H mm) Weight (kg) ST039N-03 3 mm (1/8") 6.2 4.0 6.5 0.014 ST039N-04 4 mm (5/32") 7.4 5.0 8.5 0.022 ST039N-05 5 mm (3/16") 9.0 6.0 10.0 0.040 ST039N-06 6 mm 12.4 8.0 11.5 0.100 ST039N-07 7 mm (9/32") 14.2 9.0 13.0 0.120 ST039N-08 8 mm (5/16") 16.1 10.0 13.0 0.180 ST039N-08-5/8 8 mm (5/16") 16.1 12.0 16.5 0.240 ST039N-10 10 mm 17.7 11.0 16.2 0.260
Technical Information
- Product type: Swage narrow eye terminal
- Material: 316 stainless steel
- Wire compatibility: 1×19, 7 strand, compacted strand (IWRC)
- Wire size range: 3–10 mm
- Installation: Rotary or fixed die swaging machines
- Minimum hole depth: 10 × wire diameter
-
