The STA-LOK 038 Swage Toggle Fork range includes 316 stainless steel swage fork terminals for wire ropes from 3 mm to 12 mm (1/8" to 1/2"), designed for use with rotary and fixed die swaging machines. These fittings provide articulation in two planes via a toggle mechanism and are compatible with 1×19, 7 strand, and compacted strand (IWRC) wire ropes. Dimensions vary by size (A: 6.2–21.3 mm, B: 14.4–34.0 mm, D: 6.4–19.1 mm, P: 6.4–18.5 mm), with weights from 0.040 kg to 1.140 kg. Minimum hole depth requirement is 10× wire diameter.
- Description
- Ask a Question
-

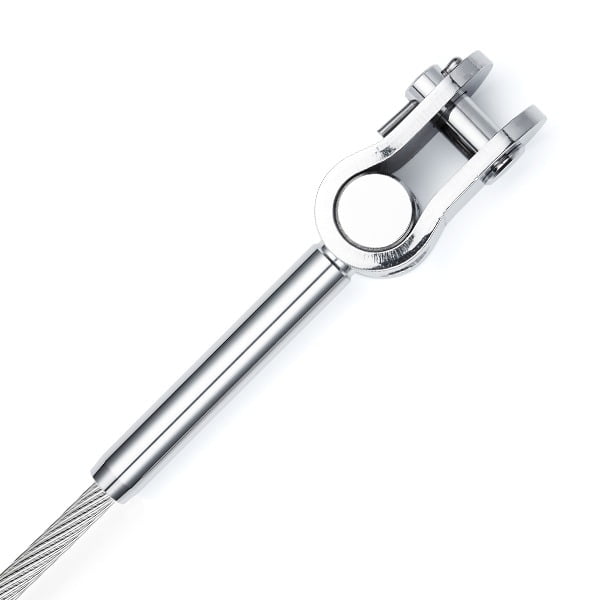

STA-LOK 038 Swage Toggle Forks – 316 Stainless Steel Swage Fork Terminals for 3–12 mm Wire Rope
The STA-LOK 038 Swage Toggle Forks range is designed for swaged wire rope terminations requiring articulation and alignment flexibility. These fork terminals are used with rotary and fixed die swaging machines and provide a reliable mechanical connection for marine, architectural, and industrial applications.
Manufactured from high specification 316 stainless steel, these fittings are suitable for use with 1×19, 7 strand, and compacted strand (IWRC) wire ropes. The integrated toggle mechanism allows movement in two planes, helping to accommodate load angles and reduce stress on the assembly.
Key Features
- Swage fork terminals for use with rotary and fixed die swaging machines
- Manufactured from high specification 316 stainless steel
- Suitable for 1×19, 7 strand, and compacted strand wire rope (IWRC)
- Compatible with metric and inch wire ropes
- Toggle design allows articulation in two planes
- Minimum hole depth requirement: 10× wire diameter
Applications
These toggle fork terminals are used in standing rigging, tensioned cable systems, and wire rope assemblies where controlled articulation and swaged end fittings are required.
Technical Specifications
SKU Wire Size (Metric) Wire Size (Imperial) A (MM) B (MM) D (MM) P (MM) Weight (KG) 038-03 3 MM 1/8" 6.2 14.4 6.4 6.4 0.040 038-04 4 MM 5/32" 7.4 19.0 8.4 7.9 0.060 038-05 5 MM 3/16" 9.0 20.0 9.9 9.5 0.100 038-06 6 MM - 12.4 25.0 11.5 11.1 0.200 038-07 7 MM 9/32" 14.2 28.0 13.1 12.7 0.280 038-08 8 MM 5/16" 16.1 28.0 13.1 12.7 0.320 038-10 10 MM - 17.7 33.0 16.3 16.0 0.560 038-12 12 MM - 21.3 34.0 19.1 18.5 1.140
Construction and Use
- Designed for permanent swaged installation
- Used with rotary or fixed die swaging equipment
- Provides articulation to reduce misalignment loads
- Suitable for marine and industrial wire rope systems
-
