The Barton N12430 is a Size 2 fiddle block with swivel shackle and ball bearing sheaves (30/45 mm), designed for ropes up to 8 mm. Weighing 98 g, it delivers smooth low-friction performance with a safe working load of 370 kg, break load of 740 kg, and maximum rolling load of 260 kg. The swivel attachment allows free rotation under load, making it ideal for dynamic multi-purchase systems on dinghies, dayboats, and yachts.
- Description
- Ask a Question
-
Barton N12430 - Fiddle Block Swivel Size 2 30/45mm – Ball Bearing, Ø30/45mm Sheaves, Max Rope 8mm

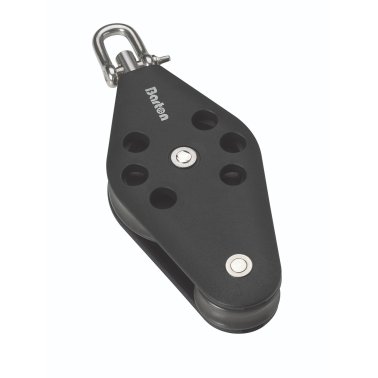

The Barton N12430 Fiddle Block with Swivel is part of the Size 2 (35 mm) block range, designed for smooth operation and high efficiency. It features a ball bearing fiddle sheave configuration (30/45 mm), ensuring low friction and precise line control in dynamic sailing systems.
Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block provides excellent durability and strength. The swivel shackle attachment allows free rotation under load, ensuring optimal alignment and reducing line twist in active rigging setups.
Key Features
- Fiddle block configuration with 30 mm and 45 mm sheaves
- Ball bearing system for smooth, low-friction operation
- Swivel shackle for flexible alignment and reduced line twist
- Lightweight and compact design – 98 g
- Ideal for dynamic multi-purchase systems
Technical Specifications
Part Number N12430 Block Type Fiddle Swivel Size Size 2 (35 mm) Sheave Diameter 30 mm / 45 mm Sheave Size 30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32") Bearing Type Ball Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 98 g Dimensions 126 × 48 × 25 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Dynamic multi-purchase systems (vangs, downhauls, kicking straps)
- Control and trimming lines
- Dinghies and dayboats
- General yacht rigging applications
The Barton Size 2 ball bearing fiddle swivel blocks are engineered for maximum efficiency and smooth control, delivering reliable performance in demanding sailing conditions. :contentReference[oaicite:0]{index=0}
-
