ID
1360688
$ 120.93
1-2 weeks delivery time
-
+
The Barton N02440 is a Size 2 fiddle block with snap shackle and plain bearing sheaves (30/45 mm), designed for ropes up to 8 mm. Weighing 133 g, it is optimized for high static loads with a safe working load of 370 kg and break load of 740 kg. The snap shackle allows quick attachment and release, making it ideal for versatile multi-purchase systems and frequently adjusted rigging.
- Description
- Ask a Question
-

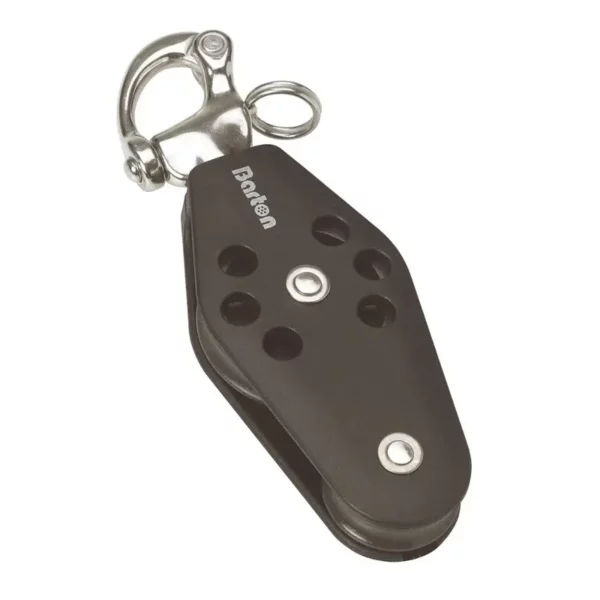

Barton N02440 - Fiddle Block Snap Shackle Size 2 30/45mm – Plain Bearing, Ø30/45mm Sheaves, Max Rope 8mm
The Barton N02440 Fiddle Block with Snap Shackle is part of the Size 2 (35 mm) block range, designed for strength, versatility, and reliable performance. It features a plain bearing fiddle sheave configuration (30/45 mm), making it suitable for handling higher static loads.
Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block ensures durability and long service life. The snap shackle attachment enables fast connection and disconnection, providing flexibility in dynamic and frequently adjusted rigging systems.
Key Features
- Fiddle block configuration with 30 mm and 45 mm sheaves
- Plain bearing sheaves for high load applications
- Snap shackle for quick attachment and release
- Heavy-duty construction with stainless steel internal frame
- Suitable for versatile rigging setups
Technical Specifications
Part Number N02440 Block Type Fiddle Snap Shackle Size Size 2 (35 mm) Sheave Diameter 30 mm / 45 mm Sheave Size 30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32") Bearing Type Plain Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 133 g Dimensions 143 × 48 × 25 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Multi-purchase systems (vangs, downhauls, kicking straps)
- Control and trimming lines
- Quick-release rigging setups
- Dinghies and dayboats
The Barton Size 2 fiddle snap shackle blocks are engineered for durability and ease of use, offering reliable performance and flexibility in a wide range of sailing applications. :contentReference[oaicite:0]{index=0}
-
