The Barton N02430 is a Size 2 fiddle block with swivel shackle and plain bearing sheaves (30/45 mm), designed for ropes up to 8 mm. Weighing 97 g, it is optimized for high static loads with a safe working load of 370 kg and break load of 740 kg. The swivel attachment allows free rotation and alignment under load, making it ideal for versatile multi-purchase systems on dinghies, dayboats, and yachts.
- Description
- Ask a Question
-

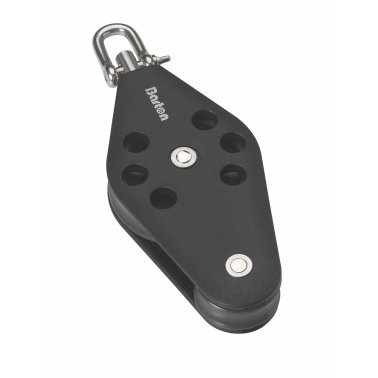

Barton N02430 - Fiddle Block Swivel Size 2 30/45mm – Plain Bearing, Ø30/45mm Sheaves, Max Rope 8mm
The Barton N02430 Fiddle Block with Swivel is part of the Size 2 (35 mm) block range, designed for high strength and versatility in a compact format. It features a plain bearing fiddle sheave configuration (30/45 mm), making it well suited for handling higher static loads with consistent performance.
Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block offers durability and structural integrity. The swivel shackle attachment allows free rotation under load, ensuring optimal alignment and reducing line twist in dynamic and multi-directional rigging systems.
Key Features
- Fiddle block configuration with 30 mm and 45 mm sheaves
- Plain bearing sheaves for high load applications
- Swivel shackle for flexible alignment and reduced line twist
- Compact and lightweight design – 97 g
- Suitable for versatile rigging and multi-purchase systems
Technical Specifications
Part Number N02430 Block Type Fiddle Swivel Size Size 2 (35 mm) Sheave Diameter 30 mm / 45 mm Sheave Size 30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32") Bearing Type Plain Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 97 g Dimensions 126 × 48 × 25 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Multi-purchase systems (vangs, downhauls, kicking straps)
- Control and trimming lines
- Dinghies and dayboats
- General yacht rigging applications
The Barton Size 2 fiddle swivel blocks are engineered for reliable load handling and flexible alignment, providing dependable performance across a wide range of sailing applications. :contentReference[oaicite:0]{index=0}
-
