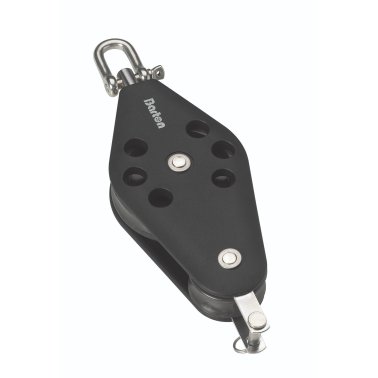

Barton N02431 - Fiddle Block Swivel with Becket Size 2 30/45mm – Plain Bearing, Ø30/45mm Sheaves, Max Rope 8mm

ID 1360687

$ 49.57

1-2 weeks delivery time

- +

Add to cart

The Barton N02431 is a Size 2 fiddle block with swivel shackle and becket, featuring plain bearing sheaves (30/45 mm) for ropes up to 8 mm. Weighing 105 g, it is designed for high static loads with a safe working load of 370 kg and break load of 740 kg. The swivel allows flexible alignment under load, while the becket provides secure rope termination, making it ideal for compact multi-purchase systems.

Description
Ask a Question

Barton N02431 - Fiddle Block Swivel with Becket Size 2 30/45mm – Plain Bearing, Ø30/45mm Sheaves, Max Rope 8mm

The Barton N02431 Fiddle Block with Swivel and Becket is part of the Size 2 (35 mm) block range, designed for strength, versatility, and reliable performance. It features a plain bearing fiddle sheave configuration (30/45 mm), ideal for handling higher static loads.

Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block ensures durability and structural integrity. The swivel shackle allows free rotation and optimal alignment under load, while the integrated becket enables efficient rope termination in multi-purchase systems.

Key Features

Fiddle block configuration with 30 mm and 45 mm sheaves
Plain bearing sheaves for high load applications
Swivel shackle for flexible alignment
Integrated becket for rope termination
Compact and durable construction – 105 g

Technical Specifications

Part Number	N02431
Block Type	Fiddle Swivel + Becket
Size	Size 2 (35 mm)
Sheave Diameter	30 mm / 45 mm
Sheave Size	30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32")
Bearing Type	Plain Bearing
Number of Sheaves	Fiddle (Double)
Max Rope Diameter	8 mm (5/16")
Safe Working Load (SWL)	370 kg (815 lbs)
Break Load	740 kg (1630 lbs)
Weight	105 g
Dimensions	145 × 48 × 25 mm
Materials	Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame

Applications

Multi-purchase systems (vangs, downhauls, kicking straps)
Control and trimming lines
Dinghies and dayboats
General yacht rigging applications

The Barton Size 2 fiddle blocks with swivel and becket are engineered for durability and efficient load handling, offering reliable performance across a wide range of sailing applications. :contentReference[oaicite:0]{index=0}
