The Barton N12631 is a Size 2 fiddle block with swivel, becket, and cam cleat, featuring ball bearing sheaves (30/45 mm) for ropes up to 8 mm. Weighing 160 g, it delivers smooth low-friction performance with a safe working load of 370 kg, break load of 740 kg, and maximum rolling load of 260 kg. The integrated cam cleat enables secure line holding, while the swivel and becket provide flexible alignment and rope termination, making it ideal for dynamic control systems.
- Description
- Ask a Question
-

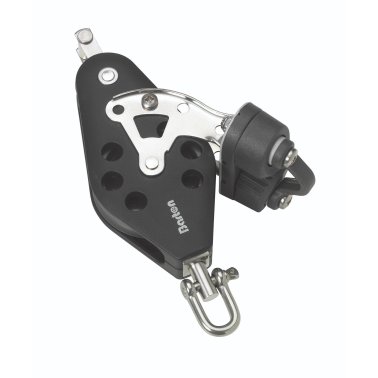

Barton N12631 - Fiddle Block Swivel with Becket and Cam Size 2 30/45mm – Ball Bearing, Ø30/45mm Sheaves, Max Rope 8mm
The Barton N12631 Fiddle Block with Swivel, Becket and Cam is part of the Size 2 (35 mm) block range, designed for high performance and efficient line control. It features a ball bearing fiddle sheave configuration (30/45 mm), ensuring low friction and smooth operation in dynamic sailing systems.
Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block offers excellent durability and strength. The swivel shackle allows free rotation under load for optimal alignment, while the integrated becket enables rope termination and the cam cleat provides fast and secure line locking.
Key Features
- Fiddle block with swivel, becket, and integrated cam cleat
- Ball bearing system for smooth, low-friction performance
- Cam cleat for quick and secure line control
- Swivel for flexible alignment and reduced line twist
- Compact and durable construction – 160 g
Technical Specifications
Part Number N12631 Block Type Fiddle Swivel + Becket + Cam Size Size 2 (35 mm) Sheave Diameter 30 mm / 45 mm Sheave Size 30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32") Bearing Type Ball Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 160 g Dimensions 145 × 75 × 51 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Downhauls and kicking straps
- Control systems with integrated cleat
- Dynamic multi-purchase systems
- Dinghies and dayboats
The Barton Size 2 ball bearing fiddle blocks with cam cleat are engineered for maximum efficiency and control, delivering smooth operation and reliable performance in demanding sailing conditions. :contentReference[oaicite:0]{index=0}
-
