ID
1360822
$ 128.24
1-2 weeks delivery time
-
+
The Barton N12440 is a Size 2 fiddle block with snap shackle and ball bearing sheaves (30/45 mm), designed for ropes up to 8 mm. Weighing 129 g, it delivers smooth low-friction performance with a safe working load of 370 kg, break load of 740 kg, and maximum rolling load of 260 kg. The snap shackle enables quick attachment and release, making it ideal for dynamic and frequently adjusted rigging systems.
- Description
- Ask a Question
-

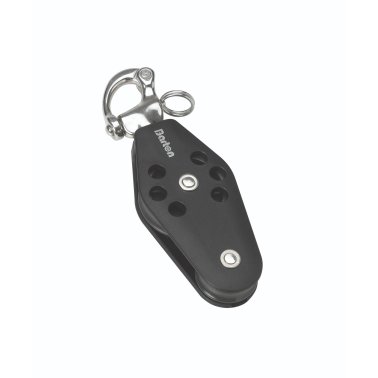

Barton N12440 - Fiddle Block Snap Shackle Size 2 30/45mm – Ball Bearing, Ø30/45mm Sheaves, Max Rope 8mm
The Barton N12440 Fiddle Block with Snap Shackle is part of the Size 2 (35 mm) block range, designed for high performance and efficient line handling. It features a ball bearing fiddle sheave configuration (30/45 mm), providing smooth, low-friction operation in dynamic sailing systems.
Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block ensures durability and strength. The snap shackle attachment allows rapid connection and disconnection, offering flexibility and convenience in active rigging setups.
Key Features
- Fiddle block configuration with 30 mm and 45 mm sheaves
- Ball bearing system for smooth, low-friction performance
- Snap shackle for quick attachment and release
- Heavy-duty construction with stainless steel internal frame
- Optimized for dynamic rigging applications
Technical Specifications
Part Number N12440 Block Type Fiddle Snap Shackle Size Size 2 (35 mm) Sheave Diameter 30 mm / 45 mm Sheave Size 30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32") Bearing Type Ball Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 129 g Dimensions 143 × 48 × 25 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Dynamic multi-purchase systems (vangs, downhauls, kicking straps)
- Control and trimming lines
- Quick-release rigging setups
- Dinghies and dayboats
The Barton Size 2 ball bearing fiddle snap shackle blocks are engineered for maximum efficiency and ease of use, delivering reliable performance in demanding sailing environments. :contentReference[oaicite:0]{index=0}
-
