The Barton N12411 is a Size 2 fiddle block with fixed eye and becket, featuring ball bearing sheaves (30/45 mm) for ropes up to 8 mm. Weighing 98 g, it delivers smooth low-friction performance with a safe working load of 370 kg, break load of 740 kg, and maximum rolling load of 260 kg. The integrated becket enables secure rope termination, making it ideal for dynamic multi-purchase systems on dinghies, dayboats, and yachts.
- Description
- Ask a Question
-

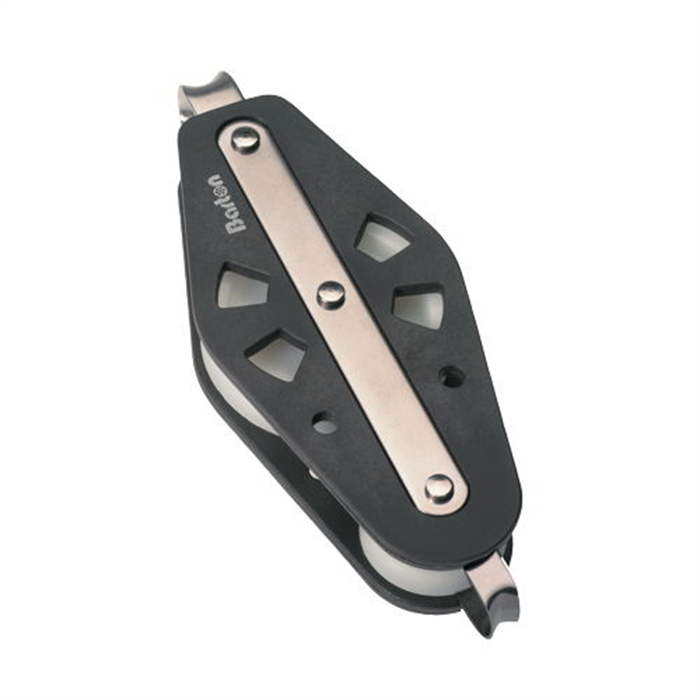

Barton N12411 - Fiddle Block Fixed Eye with Becket Size 2 30/45mm – Ball Bearing, Ø30/45mm Sheaves, Max Rope 8mm
The Barton N12411 Fiddle Block with Fixed Eye and Becket is part of the Size 2 (35 mm) block range, designed for high performance and smooth operation. It features a ball bearing fiddle sheave configuration (30/45 mm), providing low friction and efficient line handling in dynamic sailing systems.
Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block ensures excellent durability and strength. The fixed eye attachment provides secure mounting, while the integrated becket allows efficient rope termination in multi-purchase systems.
Key Features
- Fiddle block configuration with 30 mm and 45 mm sheaves
- Ball bearing system for smooth, low-friction performance
- Fixed eye for stable and secure attachment
- Integrated becket for rope termination
- Lightweight and compact construction – 98 g
Technical Specifications
Part Number N12411 Block Type Fiddle Fixed Eye + Becket Size Size 2 (35 mm) Sheave Diameter 30 mm / 45 mm Sheave Size 30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32") Bearing Type Ball Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 98 g Dimensions 131 × 48 × 25 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Dynamic multi-purchase systems (vangs, downhauls, kicking straps)
- Control and trimming lines
- Dinghies and dayboats
- General yacht rigging applications
The Barton Size 2 ball bearing fiddle blocks with becket are engineered for maximum efficiency and smooth control, delivering reliable performance in demanding sailing conditions.
-
