ID
1360691
$ 111.95
1-2 weeks delivery time
-
+
The Barton N02631 is a Size 2 fiddle block with swivel, becket, and cam cleat, featuring plain bearing sheaves (30/45 mm) for ropes up to 8 mm. Weighing 159 g, it is designed for high static loads with a safe working load of 370 kg and break load of 740 kg. The integrated cam cleat enables secure line holding, while the swivel and becket provide flexible alignment and rope termination, making it ideal for compact control systems.
- Description
- Ask a Question
-

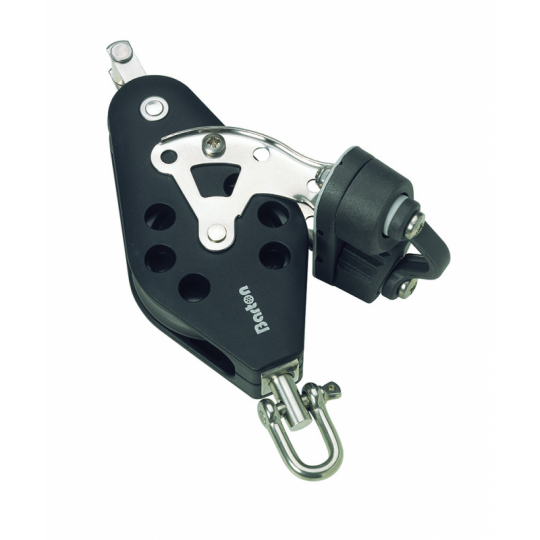

Barton N02631 - Fiddle Block Swivel with Becket and Cam Size 2 30/45mm – Plain Bearing, Ø30/45mm Sheaves, Max Rope 8mm
The Barton N02631 Fiddle Block with Swivel, Becket and Cam is part of the Size 2 (35 mm) block range, designed for efficient control and reliable load handling. It features a plain bearing fiddle sheave configuration (30/45 mm), optimized for handling higher static loads in compact rigging systems.
Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block ensures durability and strength. The swivel shackle allows free rotation and optimal alignment under load, while the integrated becket enables rope termination and the cam cleat provides quick and secure line locking for precise control.
Key Features
- Fiddle block with swivel, becket, and integrated cam cleat
- Plain bearing sheaves for high load applications
- Cam cleat for quick and secure line locking
- Swivel for flexible alignment and reduced line twist
- Compact and durable construction – 159 g
Technical Specifications
Part Number N02631 Block Type Fiddle Swivel + Becket + Cam Size Size 2 (35 mm) Sheave Diameter 30 mm / 45 mm Sheave Size 30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32") Bearing Type Plain Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 159 g Dimensions 145 × 75 × 51 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Downhauls and kicking straps
- Control systems requiring line locking
- Multi-purchase systems with integrated cleat
- Dinghies and dayboats
The Barton Size 2 fiddle blocks with cam cleat are engineered for efficient control and secure line handling, providing reliable performance in a wide range of sailing applications. :contentReference[oaicite:0]{index=0}
-
