The Barton N02641 is a Size 2 fiddle block with snap shackle, becket, and cam cleat, featuring plain bearing sheaves (30/45 mm) for ropes up to 8 mm. Weighing 196 g, it is designed for high static loads with a safe working load of 370 kg and break load of 740 kg. The snap shackle allows quick attachment, while the becket and cam cleat provide secure rope termination and line control, making it ideal for compact control systems.
- Description
- Ask a Question
-

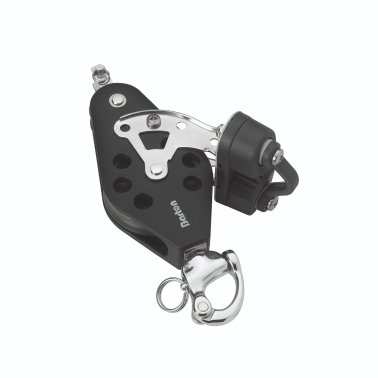

Barton N02641 - Fiddle Block Snap Shackle with Becket and Cam Size 2 30/45mm – Plain Bearing, Ø30/45mm Sheaves, Max Rope 8mm
The Barton N02641 Fiddle Block with Snap Shackle, Becket and Cam is part of the Size 2 (35 mm) block range, engineered for strength and reliable performance. It features a plain bearing fiddle sheave configuration (30/45 mm), making it well suited for handling higher static loads.
Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block ensures durability and structural integrity. The snap shackle attachment allows fast connection and release, while the integrated becket enables rope termination and the cam cleat provides quick and secure line locking for precise control.
Key Features
- Fiddle block with snap shackle, becket, and cam cleat
- Plain bearing sheaves for high load applications
- Snap shackle for quick attachment and release
- Cam cleat for secure and fast line control
- Heavy-duty construction with stainless steel internal frame
Technical Specifications
Part Number N02641 Block Type Fiddle Snap Shackle + Becket + Cam Size Size 2 (35 mm) Sheave Diameter 30 mm / 45 mm Sheave Size 30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32") Bearing Type Plain Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 196 g Dimensions 162 × 75 × 51 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Downhauls and kicking straps
- Control systems with integrated cam cleat
- Multi-purchase systems with quick-release attachment
- Dinghies and dayboats
The Barton Size 2 fiddle blocks with cam cleat are engineered for efficient control and reliable load handling, offering dependable performance across a wide range of sailing applications. :contentReference[oaicite:0]{index=0}
-
