The Barton N12641 is a Size 2 fiddle block with snap shackle, becket, and cam cleat, featuring ball bearing sheaves (30/45 mm) for ropes up to 8 mm. Weighing 195 g, it delivers smooth low-friction performance with a safe working load of 370 kg, break load of 740 kg, and maximum rolling load of 260 kg. The snap shackle allows quick attachment, while the becket and cam cleat provide secure rope termination and precise line control, making it ideal for dynamic control systems.
- Description
- Ask a Question
-

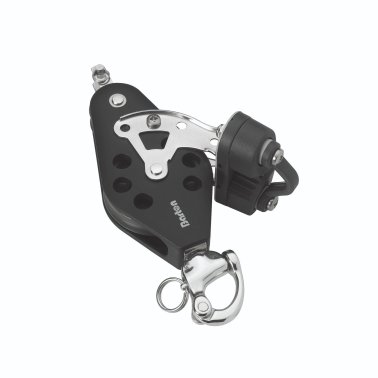

Barton N12641 - Fiddle Block Snap Shackle with Becket and Cam Size 2 30/45mm – Ball Bearing, Ø30/45mm Sheaves, Max Rope 8mm
The Barton N12641 Fiddle Block with Snap Shackle, Becket and Cam is part of the Size 2 (35 mm) block range, designed for high efficiency and smooth operation. It features a ball bearing fiddle sheave configuration (30/45 mm), ensuring low friction and precise control in dynamic sailing systems.
Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block ensures durability and structural strength. The snap shackle attachment allows rapid connection and disconnection, while the integrated becket enables rope termination and the cam cleat provides quick and secure line locking for accurate control.
Key Features
- Fiddle block with snap shackle, becket, and integrated cam cleat
- Ball bearing system for smooth, low-friction performance
- Snap shackle for quick attachment and release
- Cam cleat for fast and secure line control
- Heavy-duty construction with stainless steel internal frame
Technical Specifications
Part Number N12641 Block Type Fiddle Snap Shackle + Becket + Cam Size Size 2 (35 mm) Sheave Diameter 30 mm / 45 mm Sheave Size 30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32") Bearing Type Ball Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 195 g Dimensions 162 × 75 × 51 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame
Applications
- Downhauls and kicking straps
- Control systems with integrated cam cleat
- Dynamic multi-purchase systems
- Dinghies and dayboats
The Barton Size 2 ball bearing fiddle blocks with cam cleat are engineered for maximum efficiency and precise control, delivering reliable performance in demanding sailing environments. :contentReference[oaicite:0]{index=0}
-
