Tecnoseal Volvo Penta SX-A / DPS-A Sterndrive Anode Kit with Mounting Hardware

ID 1405392

$ 108.85

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

1.06 kg
2.55 kg
810 g

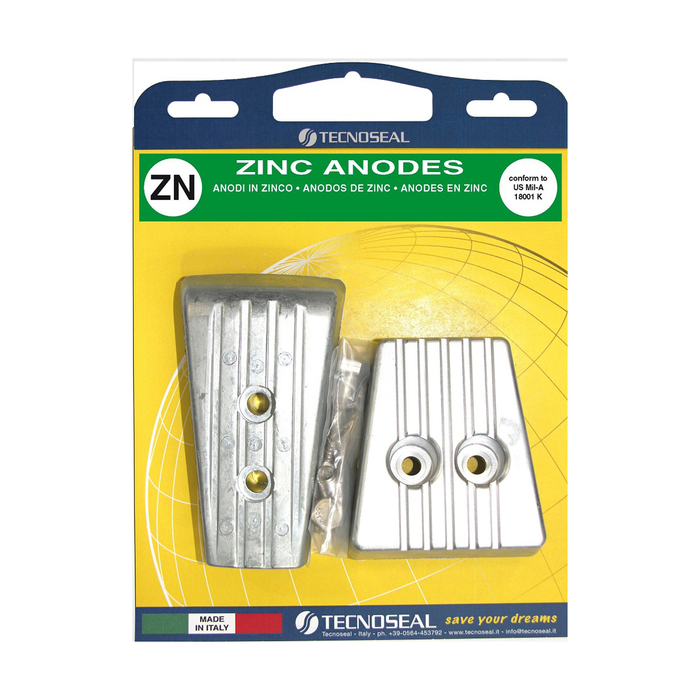

The Tecnoseal KITVOLVOSXA/DPSA series consists of sacrificial anode kits designed for Volvo Penta SX-A and DPS-A sterndrives. Each kit includes one cavitation plate anode from the 00733BIS series and one transom plate anode from the 00737 series, together with mounting hardware. Three material versions are available: zinc (KITVOLVOSXA/DPSA, 2.55 kg), aluminium (KITVOLVOSXA-DPSA-AL, 1.06 kg) and magnesium (KITVOLVOSXA-DPSA-MG, 0.81 kg). The cavitation plate measures 152 mm in length, with widths of 88 mm and 56 mm and a height of 25 mm. The transom plate measures 90 mm in length, 100 mm in width and 28 mm in height. Each kit contains two anodes of the selected material to help protect submerged sterndrive components against galvanic corrosion.

Description
Ask a Question

Tecnoseal Volvo Penta SX-A / DPS-A Sterndrive Anode Kit with Mounting Hardware

The Tecnoseal KITVOLVOSXA/DPSA series consists of sacrificial anode kits designed for Volvo Penta SX-A and DPS-A sterndrives. Each kit contains one cavitation plate anode from the Tecnoseal 00733BIS series and one transom plate anode from the 00737 series, together with mounting hardware. Both components help protect submerged metallic sterndrive parts against galvanic corrosion.

Available in zinc, aluminium and magnesium, these kits contain two anodes of the selected material. The 00733BIS cavitation plate measures 152 mm in length, 88 mm at its wider end and 25 mm in height. The 00737 transom plate measures 90 mm in length, 100 mm in width and 28 mm in height. The corresponding Osculati kit references are 43.346.00, 43.346.01 and 43.346.02, depending on the material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Sterndrive Anode Kit
Compatible Manufacturer	Volvo Penta
Compatible Drives	SX-A / DPS-A
Available Materials	Zinc, Aluminium, Magnesium
Included Anodes	1 Cavitation Plate Anode + 1 Transom Plate Anode
Total Anodes	2 pcs
Mounting Hardware	Included

Available Kits and Cross-References

Tecnoseal Kit Code	Material	Included Components	Kit Weight	Osculati Reference
KITVOLVOSXA/DPSA	Zinc	1 × 00733BIS + 1 × 00737	2.55 kg (5.62 lbs)	43.346.00
KITVOLVOSXA-DPSA-AL	Aluminium	1 × 00733BISAL + 1 × 00737AL	1.06 kg (2.34 lbs)	43.346.01
KITVOLVOSXA-DPSA-MG	Magnesium	1 × 00733BISMG + 1 × 00737MG	0.81 kg (1.79 lbs)	43.346.02

Cavitation Plate Anode Dimensions (00733BIS Series)

Length (l)	152 mm (5.98 in)
Width (a)	88 mm (3.46 in)
Width (b)	56 mm (2.20 in)
Height (h)	25 mm (0.98 in)
Height (h1)	16 mm (0.63 in)
Dimension (i)	35 mm (1.38 in)
Diameter (Ø)	9 mm (0.35 in)

Transom Plate Anode Dimensions (00737 Series)

Length (l)	90 mm (3.54 in)
Dimension (l1)	61 mm (2.40 in)
Width (a)	100 mm (3.94 in)
Height (h)	28 mm (1.10 in)
Height (h1)	14 mm (0.55 in)
Dimension (i)	30 mm (1.18 in)
Diameter (Ø)	21 mm (0.83 in)
Diameter (Ø1)	9 mm (0.35 in)

Product Codes and EAN

Tecnoseal Kit Code	EAN
KITVOLVOSXA/DPSA	8033837068839
KITVOLVOSXA-DPSA-AL	8059617815486
KITVOLVOSXA-DPSA-MG	8059617815493

Kit Contents

Zinc Kit – KITVOLVOSXA/DPSA: 1 × Tecnoseal 00733BIS zinc cavitation plate anode and 1 × Tecnoseal 00737 zinc transom plate anode.
Aluminium Kit – KITVOLVOSXA-DPSA-AL: 1 × Tecnoseal 00733BISAL aluminium cavitation plate anode and 1 × Tecnoseal 00737AL aluminium transom plate anode.
Magnesium Kit – KITVOLVOSXA-DPSA-MG: 1 × Tecnoseal 00733BISMG magnesium cavitation plate anode and 1 × Tecnoseal 00737MG magnesium transom plate anode.
Mounting hardware included with each kit.

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Drives: SX-A and DPS-A Sterndrives
Zinc Kit: Tecnoseal KITVOLVOSXA/DPSA / Osculati 43.346.00
Aluminium Kit: Tecnoseal KITVOLVOSXA-DPSA-AL / Osculati 43.346.01
Magnesium Kit: Tecnoseal KITVOLVOSXA-DPSA-MG / Osculati 43.346.02
00733BIS Series OEM Reference: Volvo Penta 3888814
00737 Series OEM References: Volvo Penta 3888817 / 3888816 / 3888818

Individual Anode Cross-References

Tecnoseal Code	Material	Osculati Reference
00733BIS	Zinc	43.554.01
00733BISAL	Aluminium	43.554.20
00733BISMG	Magnesium	43.554.21
00737	Zinc	43.554.02
00737AL	Aluminium	43.554.22
00737MG	Magnesium	43.554.23

Key Features

Complete two-anode kit for Volvo Penta SX-A and DPS-A sterndrives.
Includes one 00733BIS series cavitation plate and one 00737 series transom plate.
Available in zinc, aluminium and magnesium versions.
Mounting hardware included.
Helps protect submerged metallic drive components against galvanic corrosion.
Cavitation plate overall dimensions: 152 mm length, 88 mm maximum width and 25 mm height.
Transom plate overall dimensions: 90 × 100 × 28 mm.
Available packaging options include branded box, blister pack, polybag and skin pack.
Osculati kit cross-references: 43.346.00, 43.346.01 and 43.346.02.

Compatibility Note: Verify the Volvo Penta drive model, OEM references and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
