The Tecnoseal 01102 is a zinc trim tab anode designed for Mariner 90–140 HP outboard motors, providing sacrificial protection against galvanic corrosion of submerged lower-unit components. Its circular base incorporates an extended trim fin, with an overall height of 99 mm, a base diameter of 90 mm and a lower section height of 17 mm. The anode features a 7/16" UNC mounting thread and weighs 0.60 kg (1.32 lbs). It is also identified by Tecnoseal part number 00801, making it suitable as a replacement where this reference is specified. The integrated fin combines the trim tab design with the corrosion protection function of a replaceable zinc anode.
- Description
- Ask a Question
-
Tecnoseal 01102 Yamaha & Mariner Trim Tab Zinc Anode for Mariner 90–140 HP Outboards

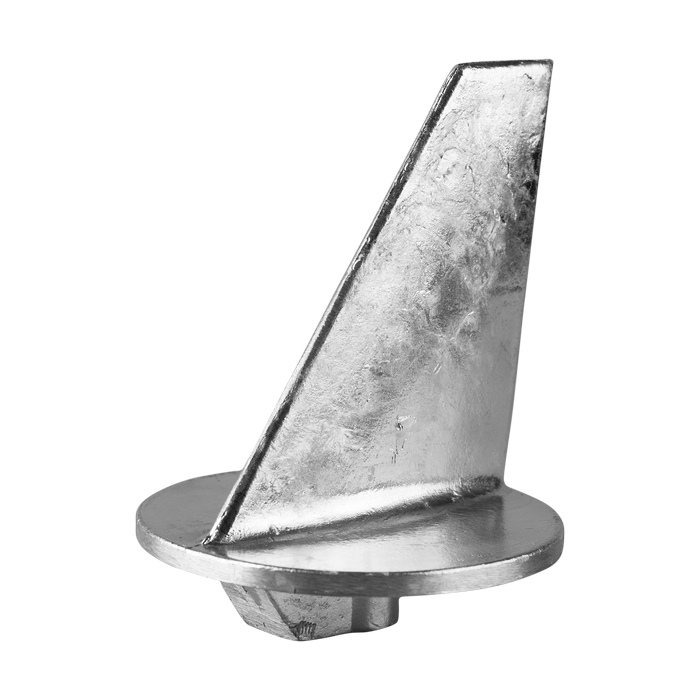

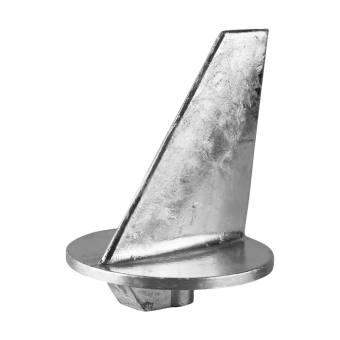

The Tecnoseal 01102 is a zinc sacrificial trim tab anode designed for Mariner 90–140 HP outboard motors. Featuring a circular mounting base with an integrated trim fin, the anode helps protect submerged metallic components of the outboard lower unit against galvanic corrosion.
The anode measures 90 mm (3.54 in) in base diameter and 99 mm (3.90 in) in overall height, with a lower section height of 17 mm (0.67 in). It features a 7/16" UNC mounting thread and weighs 0.60 kg (1.32 lbs). The same anode is also listed under Tecnoseal reference 00801.
Technical Specifications
Manufacturer Tecnoseal Product Code 01102 Product Type Trim Tab Anode Material Zinc Compatible Outboard Mariner 90–140 HP Overall Height (h) 99 mm (3.90 in) Lower Section Height (h1) 17 mm (0.67 in) Base Diameter (Ø) 90 mm (3.54 in) Mounting Thread (m) 7/16" UNC Weight 0.60 kg (1.32 lbs) EAN 8033837065074
Compatibility and References
- Compatible Outboard: Mariner 90–140 HP
- Tecnoseal Part Number: 01102
- Alternative Tecnoseal Reference: 00801
- Mounting Thread: 7/16" UNC
Key Features
- Zinc trim tab anode for Mariner 90–140 HP outboards.
- Circular base with integrated trim fin.
- Helps protect submerged outboard components against galvanic corrosion.
- Base diameter: 90 mm.
- Overall height: 99 mm.
- Lower section height: 17 mm.
- 7/16" UNC mounting thread.
- Also catalogued as Tecnoseal 00801.
Compatibility Note: Verify the outboard model, existing anode dimensions and 7/16" UNC thread before ordering.
-
