Tecnoseal 6E5-45371-01 / 6L6-45371-00 Yamaha 90–200 HP Trim Tab Anode

ID 1405413

$ 44.33

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

150 g
430 g
100 g

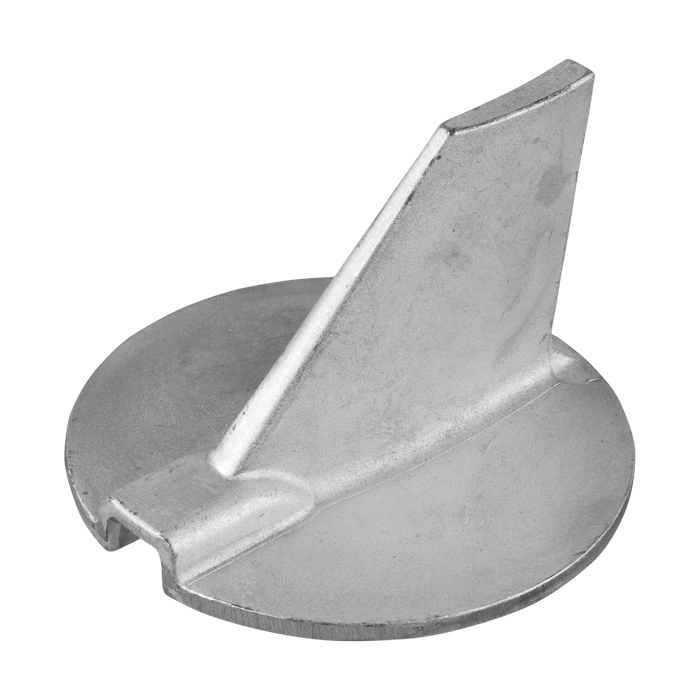

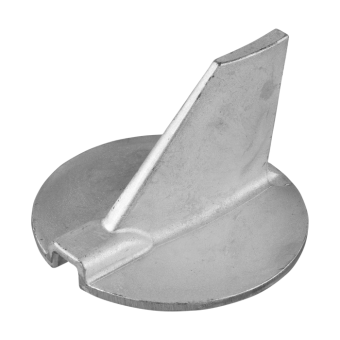

The Tecnoseal 01103 series consists of sacrificial trim tab anodes designed for Yamaha 90–200 HP outboard motors, replacing OEM part numbers 6E5-45371-01 and 6L6-45371-00. Each anode features a circular mounting base with an integrated trim fin, helping protect submerged metallic components of the outboard lower unit against galvanic corrosion. The anode measures 91 mm in base diameter, 57 mm in overall height and 19 mm in lower section height, with an M10 × 1.25 mounting thread. Available in zinc (01103, 430 g), aluminium (01103AL, 150 g) and magnesium (01103MG, 100 g), the three versions share the same dimensions and mounting configuration for compatible Yamaha outboard applications.

Description
Ask a Question

Tecnoseal 6E5-45371-01 / 6L6-45371-00 Yamaha 90–200 HP Trim Tab Anode

The Tecnoseal 01103 series consists of sacrificial trim tab anodes designed for Yamaha 90–200 HP outboard motors. Compatible with Yamaha OEM part numbers 6E5-45371-01 and 6L6-45371-00, these replacement anodes combine a circular mounting base with an integrated trim fin. Their sacrificial metal construction helps protect submerged metallic components of the outboard lower unit against galvanic corrosion.

The anode measures 91 mm (3.58 in) in base diameter and 57 mm (2.24 in) in overall height, with a lower section height of 19 mm (0.75 in). Its M10 × 1.25 mounting thread is designed for compatible Yamaha outboard assemblies. Zinc, aluminium and magnesium versions are available, sharing identical dimensions and mounting configurations. The zinc and aluminium versions also correspond to Osculati references 43.253.00 and 43.253.10, respectively.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Compatible Manufacturer	Yamaha
Compatible Outboards	90–200 HP
Yamaha OEM References	6E5-45371-01 / 6L6-45371-00
Available Materials	Zinc, Aluminium, Magnesium
Mounting Thread	M10 × 1.25

Available Versions and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
01103	Zinc	0.43 kg (0.95 lbs)	43.253.00
01103AL	Aluminium	0.15 kg (0.33 lbs)	43.253.10
01103MG	Magnesium	0.10 kg (0.22 lbs)	Not specified

Dimensions and Mounting Specifications

Overall Height (h)	57 mm (2.24 in)
Lower Section Height (h1)	19 mm (0.75 in)
Base Diameter (Ø)	91 mm (3.58 in)
Mounting Thread (m)	M10 × 1.25

Product Codes and EAN

Tecnoseal Code	EAN
01103	8033837065081
01103AL	8059617815578
01103MG	8052744983585

Compatibility and OEM References

Compatible Manufacturer: Yamaha
Outboard Power Range: 90–200 HP
Yamaha OEM Part Number: 6E5-45371-01
Additional Yamaha OEM Part Number: 6L6-45371-00
Zinc Version: Tecnoseal 01103 / Osculati 43.253.00
Aluminium Version: Tecnoseal 01103AL / Osculati 43.253.10
Magnesium Version: Tecnoseal 01103MG

Key Features

Designed for compatible Yamaha 90–200 HP outboard motors.
Replacement for Yamaha OEM references 6E5-45371-01 and 6L6-45371-00.
Circular mounting base with an integrated trim fin.
Helps protect submerged lower-unit components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Base diameter of 91 mm and overall height of 57 mm.
Lower section height of 19 mm.
M10 × 1.25 mounting thread.
Zinc cross-reference: Osculati 43.253.00.
Aluminium cross-reference: Osculati 43.253.10.

Compatibility Note: Before ordering, verify the Yamaha outboard model, original part number and existing anode dimensions. Confirm the M10 × 1.25 mounting thread and select the appropriate anode material for the vessel's operating water conditions.
