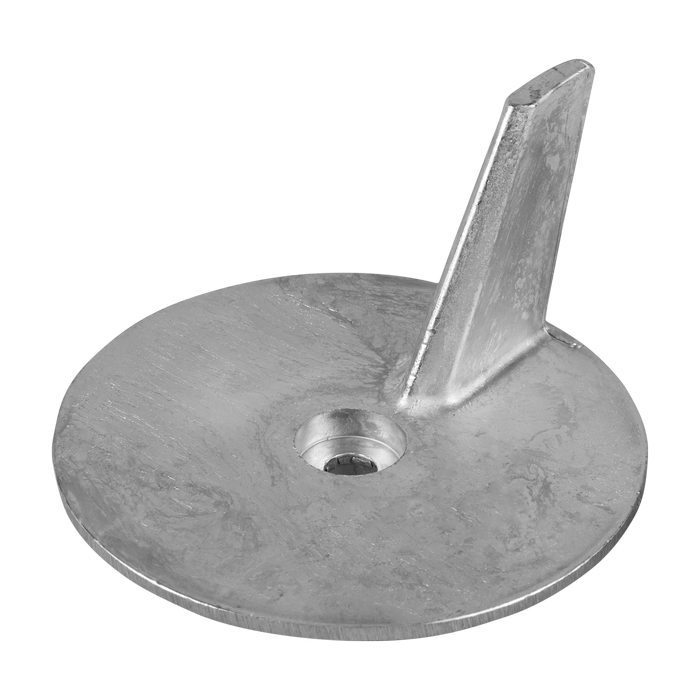

The Tecnoseal 01100 series consists of trim tab sacrificial anodes designed for Yamaha 20–50 HP and Mariner 10–50 HP outboard motors, replacing Yamaha OEM part 664-45371-01. Available in zinc (01100, 0.21 kg), aluminium (01100AL, 0.08 kg) and magnesium (01100MG, 0.05 kg), each anode features a circular base with an integrated trim fin for corrosion protection of compatible outboard lower units. Dimensions are 91.5 mm in base diameter, 55 mm in overall height, Ø17 mm and Ø8.5 mm for the mounting features.
- Description
- Ask a Question
-

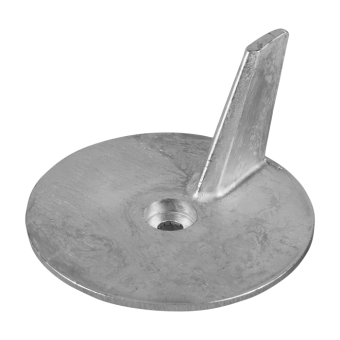

Tecnoseal Yamaha & Mariner Trim Tab Anode for 20–50 HP / 10–50 HP Outboards
The Tecnoseal 01100 series consists of sacrificial trim tab anodes designed for Yamaha 20–50 HP and Mariner 10–50 HP outboard motors. Featuring a circular mounting base with an integrated trim fin, these anodes help protect submerged metallic components of the outboard lower unit against galvanic corrosion.
Three material versions are available: zinc, aluminium and magnesium. Each anode measures 91.5 mm in base diameter and 55 mm in overall height, with mounting dimensions of Ø17 mm and Ø8.5 mm. The design is compatible with Yamaha OEM reference 664-45371-01 and is also listed under Tecnoseal references 00712 and 01412. Corresponding Osculati cross-references are 43.256.00, 43.256.01 and 43.256.02, depending on the selected material.
Technical Specifications
Manufacturer Tecnoseal Product Type Trim Tab Anode Compatible Manufacturers Yamaha, Mariner Yamaha Compatibility 20–50 HP Outboards Mariner Compatibility 10–50 HP Outboards Available Materials Zinc, Aluminium, Magnesium Yamaha OEM Reference 664-45371-01 Equivalent Tecnoseal References 00712, 01412
Available Versions and Cross-References
Tecnoseal Code Material Weight Osculati Reference 01100 Zinc 0.21 kg (0.46 lbs) 43.256.00 01100AL Aluminium 0.08 kg (0.18 lbs) 43.256.01 01100MG Magnesium 0.05 kg (0.11 lbs) 43.256.02
Dimensions
Overall Height (h) 55 mm (2.17 in) Base Diameter (Ø) 91.50 mm (3.60 in) Diameter (Ø1) 17 mm (0.67 in) Diameter (Ø2) 8.50 mm (0.33 in)
Product Codes and EAN
Tecnoseal Code EAN 01100 8033837067740 01100AL 8059617815530 01100MG 8059617818241
Compatibility and References
- Compatible Manufacturers: Yamaha and Mariner
- Yamaha Engine Range: 20–50 HP
- Mariner Engine Range: 10–50 HP
- Yamaha OEM Reference: 664-45371-01
- Zinc Anode: Tecnoseal 01100 / Osculati 43.256.00
- Aluminium Anode: Tecnoseal 01100AL / Osculati 43.256.01
- Magnesium Anode: Tecnoseal 01100MG / Osculati 43.256.02
- Other Tecnoseal References: 00712 / 01412
Key Features
- Trim tab anode for compatible Yamaha and Mariner outboard motors.
- Circular base with integrated trim fin.
- Available in zinc, aluminium and magnesium versions.
- Helps protect submerged outboard components against galvanic corrosion.
- Base diameter: 91.5 mm.
- Overall height: 55 mm.
- Mounting dimensions: Ø17 mm and Ø8.5 mm.
- Compatible with Yamaha OEM part 664-45371-01.
- Osculati cross-references: 43.256.00, 43.256.01 and 43.256.02.
Compatibility Note: Verify the original part number, outboard model and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
-
