ID
1405391
$ 220.15
1-2 weeks delivery time
-
+
The Tecnoseal KITVOLVOIPS is a sacrificial anode kit designed for Volvo Penta IPS drives, combining one zinc propeller anode (Tecnoseal 00738) and one aluminium transom plate anode (Tecnoseal 00739AL). The kit weighs 2.61 kg (5.75 lbs) and provides corrosion protection for submerged IPS drive components. The propeller anode measures 70 mm in height and 49 mm in diameter, with a Ø10.5 mm mounting hole. The transom plate measures 267 × 85 × 30 mm, with a mounting dimension (i) of 138 mm. Supplied as a two-piece mixed-material anode kit, without mounting hardware.
- Description
- Ask a Question
-

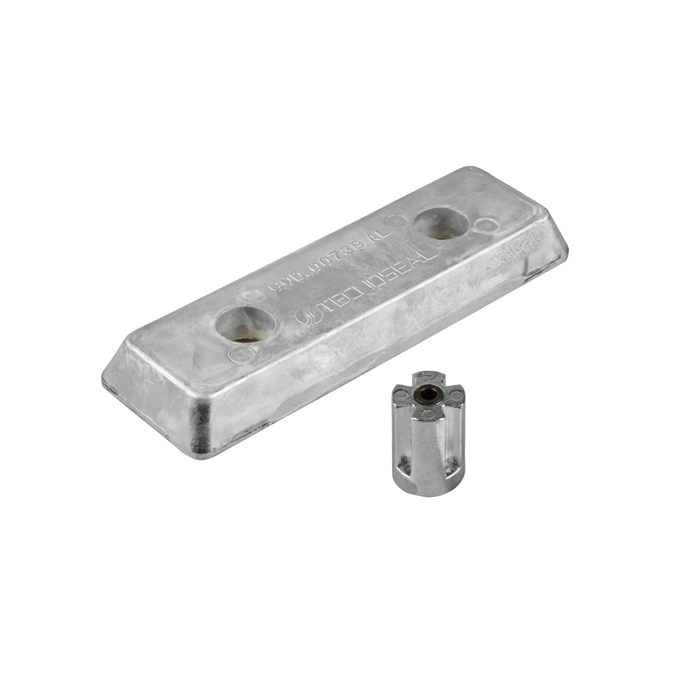

Tecnoseal KITVOLVOIPS Volvo Penta IPS Drive Anode Kit – Zinc and Aluminium
The Tecnoseal KITVOLVOIPS is a sacrificial anode kit designed for Volvo Penta IPS propulsion systems. It combines a zinc propeller anode and an aluminium transom plate anode to help protect submerged metallic drive components against galvanic corrosion.
The kit contains one Tecnoseal 00738 zinc propeller anode and one Tecnoseal 00739AL aluminium transom plate anode. The propeller anode measures 70 mm in height and 49 mm in diameter, while the transom plate measures 267 × 85 × 30 mm. The complete kit weighs 2.61 kg (5.75 lbs). Mounting hardware is not included.
Technical Specifications
Manufacturer Tecnoseal Product Code KITVOLVOIPS (Osculati 43.509.00) Product Type IPS Drive Anode Kit Compatible Manufacturer Volvo Penta Application IPS Drive Materials Zinc and Aluminium Number of Anodes 2 pcs Total Kit Weight 2.61 kg (5.75 lbs) Mounting Hardware Not Included EAN 8033837068853
Kit Contents
Quantity Tecnoseal Code Component Material 1 00738 IPS Propeller Anode Zinc 1 00739AL IPS Transom Plate Anode Aluminium
Propeller Anode Dimensions – Tecnoseal 00738
Material Zinc Height (h) 70 mm (2.76 in) Diameter (Ø) 49 mm (1.93 in) Mounting Hole Diameter (Ø1) 10.50 mm (0.41 in) Individual Anode Weight 0.74 kg (1.63 lbs) Volvo Penta OEM Reference 3593981
Transom Plate Anode Dimensions – Tecnoseal 00739AL
Material Aluminium Length (l) 267 mm (10.51 in) Width (a) 85 mm (3.35 in) Height (h) 30 mm (1.18 in) Mounting Dimension (i) 138 mm (5.43 in) Individual Anode Weight 1.55 kg (3.42 lbs)
Compatibility and References
- Compatible Manufacturer: Volvo Penta
- Compatible Drive System: IPS
- Kit Reference: Tecnoseal KITVOLVOIPS
- Propeller Anode: Tecnoseal 00738 – Zinc
- Propeller Anode OEM Reference: Volvo Penta 3593981
- Transom Plate Anode: Tecnoseal 00739AL – Aluminium
Key Features
- Two-piece anode kit for Volvo Penta IPS drives.
- Contains one zinc propeller anode and one aluminium transom plate anode.
- Helps protect submerged IPS drive components against galvanic corrosion.
- Propeller anode dimensions: Ø49 × 70 mm.
- Transom plate dimensions: 267 × 85 × 30 mm.
- Total kit weight: 2.61 kg.
- Mounting hardware is not included.
- Available packaging options include branded box, polybag and skin pack.
Compatibility Note: Check the Volvo Penta IPS drive model and the dimensions of the existing anodes before ordering. This kit combines zinc and aluminium components as specified in the Tecnoseal catalogue.
-
