The Tecnoseal 01101 series consists of sacrificial trim tab anodes designed for Yamaha 55 HP outboard motors, compatible with OEM part number 679-45251-00. Featuring a circular base with an integrated trim fin, each anode measures 91 mm in diameter, 61 mm in overall height and 19 mm in lower section height (h1), with an M10 × 1.25 mounting thread. Three material versions are available: zinc (01101, 460 g), aluminium (01101AL, 170 g) and magnesium (01101MG, 120 g). These replacement anodes help protect submerged outboard components against galvanic corrosion.
- Description
- Ask a Question
-

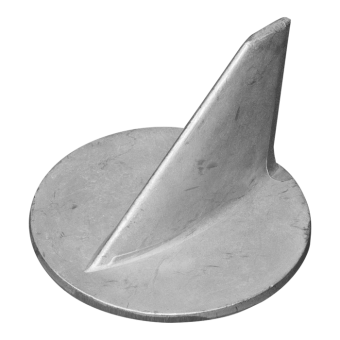

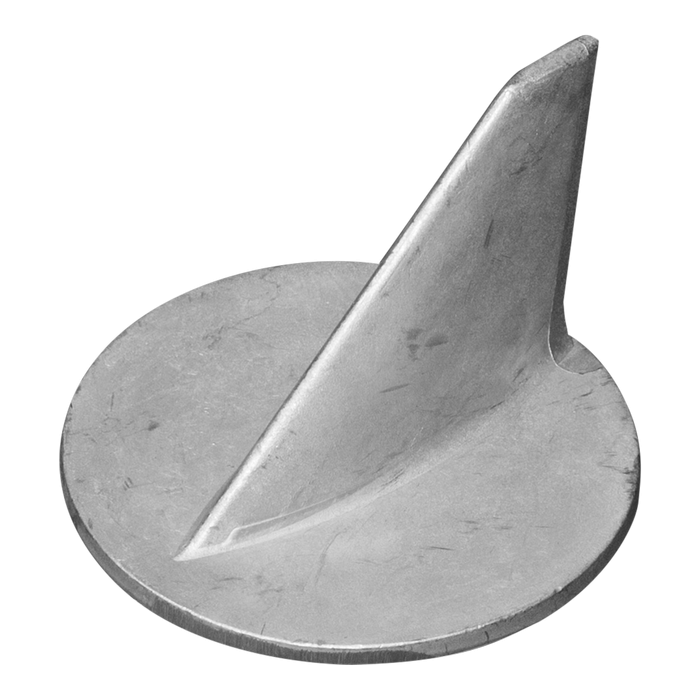

Tecnoseal 679-45251-00 Yamaha 55 HP Trim Tab Anode
The Tecnoseal 01101 series consists of sacrificial trim tab anodes designed for Yamaha 55 HP outboard motors. Compatible with Yamaha OEM part number 679-45251-00, these anodes feature a circular mounting base with an integrated trim fin and help protect submerged metallic components of the outboard lower unit against galvanic corrosion.
The anode measures 91 mm (3.58 in) in base diameter and 61 mm (2.40 in) in overall height, with a lower section height (h1) of 19 mm (0.75 in) and an M10 × 1.25 mounting thread. Three material options are available: zinc, aluminium and magnesium, allowing the appropriate version to be selected for the vessel's operating water conditions.
Technical Specifications
Manufacturer Tecnoseal Product Type Trim Tab Anode Compatible Manufacturer Yamaha Compatible Outboard Yamaha 55 HP Yamaha OEM Reference 679-45251-00 Available Materials Zinc, Aluminium, Magnesium Mounting Thread M10 × 1.25
Available Versions
Tecnoseal Code Material Weight EAN 01101 Zinc 0.46 kg (1.01 lbs) 8033837065067 01101AL Aluminium 0.17 kg (0.37 lbs) 8059617815547 01101MG Magnesium 0.12 kg (0.26 lbs) 8052744983578
Dimensions and Mounting Specifications
Overall Height (h) 61 mm (2.40 in) Lower Section Height (h1) 19 mm (0.75 in) Base Diameter (Ø) 91 mm (3.58 in) Thread (m) M10 × 1.25
Compatibility and References
- Compatible Manufacturer: Yamaha
- Outboard Power: 55 HP
- Yamaha OEM Part Number: 679-45251-00
- Zinc Version: Tecnoseal 01101
- Aluminium Version: Tecnoseal 01101AL
- Magnesium Version: Tecnoseal 01101MG
Key Features
- Trim tab anode for Yamaha 55 HP outboard motors.
- Replacement for Yamaha OEM reference 679-45251-00.
- Circular mounting base with an integrated trim fin.
- Available in zinc, aluminium and magnesium.
- Helps protect submerged outboard components against galvanic corrosion.
- Base diameter: 91 mm.
- Overall height: 61 mm.
- Lower section height: 19 mm.
- Mounting thread: M10 × 1.25.
Compatibility Note: Check the Yamaha outboard model, original part number and mounting dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
-
