Tecnoseal Volvo Penta 3-Blade Folding Propeller Saildrive Anode Kit with Mounting Hardware

ID 1405387

$ 45.37

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

250 g
440 g
210 g

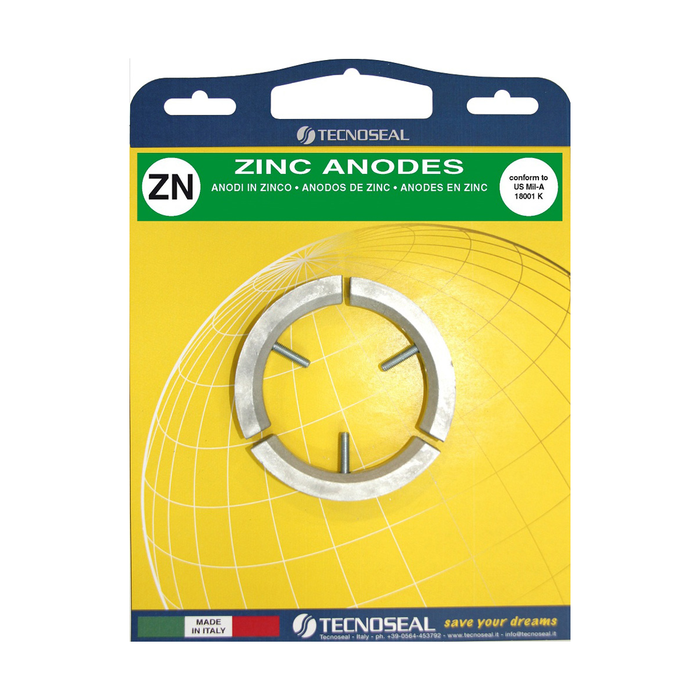

The Tecnoseal KITVOLVOELICA3PALE series consists of sacrificial anode kits for Volvo Penta 3-blade folding propellers used with saildrive systems. Each kit contains one split collar anode from the Tecnoseal 00728 series, together with mounting hardware. The collar measures 87 mm in length, 15 mm in width and 12 mm in height, with Ø10 mm and Ø5.5 mm mounting dimensions. Available in zinc (KITVOLVOELICA3PALE, 0.44 kg), aluminium (KITVOLVO3PALEAL, 0.25 kg) and magnesium (KITVOLVO3PALEMG, 0.21 kg), these kits provide sacrificial corrosion protection for compatible Volvo Penta folding propeller assemblies.

Description
Ask a Question

Tecnoseal Volvo Penta 3-Blade Folding Propeller Saildrive Anode Kit with Mounting Hardware

The Tecnoseal KITVOLVOELICA3PALE series consists of sacrificial anode kits designed for Volvo Penta 3-blade folding propellers used with saildrive systems. Each kit contains one split collar anode from the Tecnoseal 00728 series, together with mounting hardware. The anode helps protect submerged metallic components of the propeller assembly against galvanic corrosion.

The kits are available in zinc, aluminium and magnesium versions. The split collar anode measures 87 mm in length, 15 mm in width and 12 mm in height, with mounting dimensions of Ø10 mm and Ø5.5 mm. All three versions use the same anode configuration, with different kit weights depending on the selected material. The corresponding Osculati kit references are 43.347.00, 43.347.01 and 43.347.02.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Folding Propeller Anode Kit
Compatible Manufacturer	Volvo Penta
Application	3-Blade Folding Propeller / Saildrive
Anode Type	Split Collar Anode
Available Materials	Zinc, Aluminium, Magnesium
Included Anode	Tecnoseal 00728 Series
Quantity	1 Anode per Kit
Mounting Hardware	Included

Available Kits and Cross-References

Tecnoseal Kit Code	Material	Included Component	Kit Weight	Osculati Reference
KITVOLVOELICA3PALE	Zinc	1 × 00728	0.44 kg (0.97 lbs)	43.347.00
KITVOLVOELICA3PALE-AL	Aluminium	1 × 00728AL	0.25 kg (0.55 lbs)	43.347.01
KITVOLVOELICA3PALE-MG	Magnesium	1 × 00728MG	0.21 kg (0.46 lbs)	43.347.02

Split Collar Anode Dimensions (00728 Series)

Length (l)	87 mm (3.43 in)
Width (a)	15 mm (0.59 in)
Height (h)	12 mm (0.47 in)
Diameter (Ø)	10 mm (0.39 in)
Diameter (Ø1)	5.50 mm (0.22 in)

Product Codes and EAN

Tecnoseal Catalogue Kit Code	EAN
KITVOLVOELICA3PALE	8059617815509
KITVOLVO3PALEAL	8059617815516
KITVOLVO3PALEMG	8052744987637

Kit Contents

Zinc Kit – KITVOLVOELICA3PALE: 1 × Tecnoseal 00728 zinc split collar anode, with mounting hardware.
Aluminium Kit – KITVOLVOELICA3PALE-AL: 1 × Tecnoseal 00728AL aluminium split collar anode, with mounting hardware.
Magnesium Kit – KITVOLVOELICA3PALE-MG: 1 × Tecnoseal 00728MG magnesium split collar anode, with mounting hardware.

Compatibility and References

Compatible Manufacturer: Volvo Penta
Application: 3-Blade Folding Propeller / Saildrive
Zinc Kit: Tecnoseal KITVOLVOELICA3PALE / Osculati 43.347.00
Aluminium Kit: Tecnoseal KITVOLVOELICA3PALE-AL / Osculati 43.347.01
Magnesium Kit: Tecnoseal KITVOLVOELICA3PALE-MG / Osculati 43.347.02

Individual Anode Cross-References

Tecnoseal Anode	Material	Osculati Reference
00728	Zinc	43.535.00
00728AL	Aluminium	43.535.10
00728MG	Magnesium	43.535.11

Key Features

Anode kit for Volvo Penta 3-blade folding propellers.
Includes one split collar anode from the Tecnoseal 00728 series.
Available in zinc, aluminium and magnesium versions.
Mounting hardware included.
Helps protect submerged propeller components against galvanic corrosion.
Collar dimensions: 87 × 15 × 12 mm.
Mounting dimensions: Ø10 mm and Ø5.5 mm.
Available packaging options include branded box, blister pack, polybag and skin pack.
Osculati kit cross-references: 43.347.00, 43.347.01 and 43.347.02.

Compatibility Note: Verify the existing anode dimensions and Volvo Penta propeller configuration before ordering. Select the appropriate anode material for the vessel's operating water conditions.
