Tecnoseal Volvo Penta DPI Sterndrive Anode Kit

ID 1405397

$ 141.77

1-2 weeks delivery time

Type:

Magnesium
Aluminium

Item:

650 g
1.00 kg

The Tecnoseal KITVOLVODPI series comprises sacrificial anode kits for Volvo Penta DPI sterndrives, each containing one transom bar anode (00735 series) and one trim tab anode (00748 series). Available in zinc (KITVOLVODPI, 2.50 kg), aluminium (KITVOLVODPIAL, 1.00 kg) and magnesium (KITVOLVODPIMG, 0.65 kg), the kits provide corrosion protection for submerged drive components. The transom bar measures 118 mm in length, 37 mm in width and 25 mm in height, while the trim tab anode measures 155 mm in length, 112 mm in width and 40 mm in height. The aluminium and magnesium variants correspond to Osculati references 43.552.01 and 43.559.01, respectively. Each kit contains two anodes of the selected material, supplied without mounting hardware.

Description
Ask a Question

Tecnoseal Volvo Penta DPI Sterndrive Anode Kit – Zinc, Aluminium & Magnesium

The Tecnoseal KITVOLVODPI series consists of sacrificial anode kits designed for Volvo Penta DPI sterndrives. Each kit includes one transom bar anode from the Tecnoseal 00735 series and one trim tab anode from the 00748 series. These replaceable components help protect submerged metallic parts of the drive system against galvanic corrosion.

Three material versions are available: zinc, aluminium and magnesium. The transom bar anode measures 118 mm in length, 37 mm in width and 25 mm in height, while the trim tab anode measures 155 mm in length, 112 mm in width and 40 mm in height. Each kit contains two anodes of the selected material. Mounting hardware is not included.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Sterndrive Anode Kit
Compatible Manufacturer	Volvo Penta
Compatible Drive	DPI
Available Materials	Zinc, Aluminium, Magnesium
Included Anodes	1 Transom Bar Anode + 1 Trim Tab Anode
Total Anodes	2 pcs
Mounting Hardware	Not Included

Available Kits and Cross-References

Tecnoseal Kit Code	Material	Included Components	Kit Weight	Osculati Reference
KITVOLVODPI	Zinc	1 × 00748 + 1 × 00735	2.50 kg (5.51 lbs)	–
KITVOLVODPIAL	Aluminium	1 × 00748AL + 1 × 00735AL	1.00 kg (2.20 lbs)	43.552.01
KITVOLVODPIMG	Magnesium	1 × 00748MG + 1 × 00735MG	0.65 kg (1.43 lbs)	43.559.01

Trim Tab Anode Dimensions – Tecnoseal 00748 Series

Height (h)	40 mm (1.57 in)
Length (l)	155 mm (6.10 in)
Width (a)	112 mm (4.41 in)
Dimension (i)	35 mm (1.38 in)
Dimension (b)	63 mm (2.48 in)
Diameter (Ø1)	8.50 mm (0.33 in)

Transom Bar Anode Dimensions – Tecnoseal 00735 Series

Length (l)	118 mm (4.65 in)
Width (a)	37 mm (1.46 in)
Dimension (b)	101 mm (3.98 in)
Dimension (c)	85 mm (3.35 in)
Height (h)	25 mm (0.98 in)
Dimension (i)	86 mm (3.39 in)
Diameter (Ø)	9.50 mm (0.37 in)
Diameter (Ø1)	15 mm (0.59 in)

Product Codes and EAN

Tecnoseal Kit Code	EAN
KITVOLVODPI	8052530702314
KITVOLVODPIAL	8052530705599
KITVOLVODPIMG	8052530702833

Kit Contents

Zinc Kit – KITVOLVODPI: 1 × Tecnoseal 00748 zinc trim tab anode and 1 × Tecnoseal 00735 zinc transom bar anode.

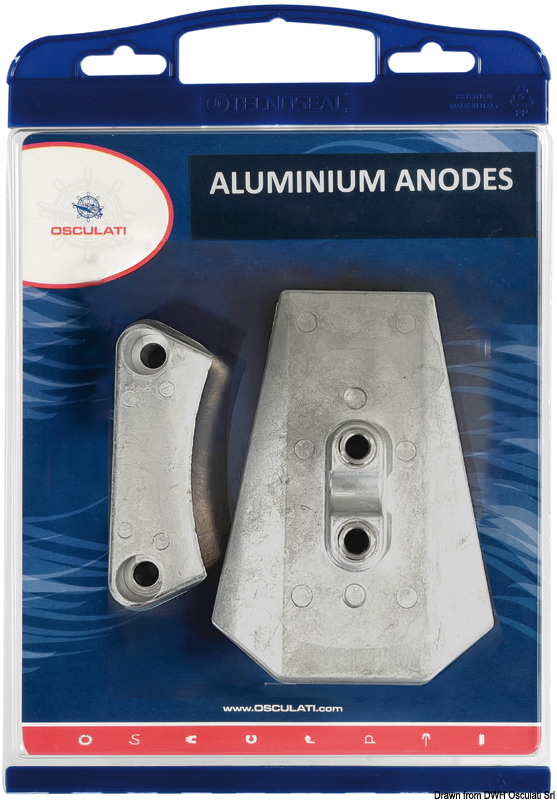

Aluminium Kit – KITVOLVODPIAL: 1 × Tecnoseal 00748AL aluminium trim tab anode and 1 × Tecnoseal 00735AL aluminium transom bar anode.
Magnesium Kit – KITVOLVODPIMG: 1 × Tecnoseal 00748MG magnesium trim tab anode and 1 × Tecnoseal 00735MG magnesium transom bar anode.

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Drive: DPI Sterndrive
Zinc Kit: Tecnoseal KITVOLVODPI
Aluminium Kit: Tecnoseal KITVOLVODPIAL / Osculati 43.552.01
Magnesium Kit: Tecnoseal KITVOLVODPIMG / Osculati 43.559.01
00748 Series OEM References: Volvo Penta 23520859 / 23520860
00735 Series OEM References: Volvo Penta 3588745 / 3588770 / 3588768
Additional Osculati Kit Reference: Volvo Penta 852835-8

Individual Component Cross-References

Tecnoseal Code	Material	Osculati Reference
00735	Zinc	43.554.15
00735AL	Aluminium	43.554.28
00735MG	Magnesium	43.554.19

Key Features

Two-anode kit for Volvo Penta DPI sterndrives.
Includes one 00748 series trim tab anode and one 00735 series transom bar anode.
Available in zinc, aluminium and magnesium versions.
Helps protect submerged metallic drive components against galvanic corrosion.
Trim tab anode dimensions: 155 × 112 × 40 mm.
Transom bar anode dimensions: 118 × 37 × 25 mm.
Mounting hardware is not included.
Available packaging options include branded box, polybag and skin pack.
Osculati aluminium and magnesium kit references: 43.552.01 and 43.559.01.

Compatibility Note: Check the Volvo Penta DPI drive model, OEM references and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions. Mounting hardware is not included.
