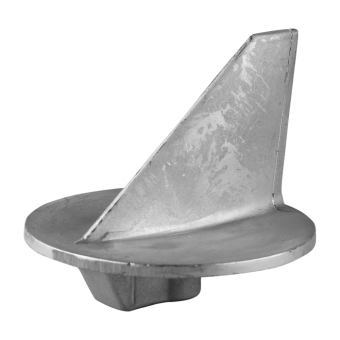

Tecnoseal Yamaha & Mariner Trim Tab Anode for Mariner 40–60 HP Outboards (After 1991)

Name: Tecnoseal Yamaha & Mariner Trim Tab Anode for Mariner 40–60 HP Outboards (After 1991)
SKU: Tecnoseal 01101-1

ID 1405408

$ 33.53

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

170 g
460 g
120 g

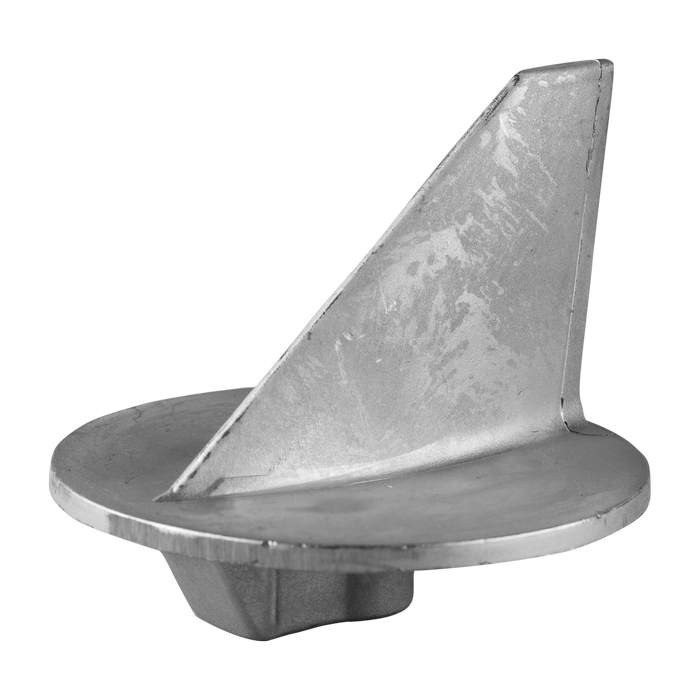

The Tecnoseal 01101-1 series consists of sacrificial trim tab anodes for Mariner 40–60 HP outboard motors manufactured after 1991. Each anode features a circular base with an integrated trim fin, measuring 91 mm in diameter, 61 mm in overall height and 19 mm in lower section height (h1), with a 7/16" UNC mounting thread. Three materials are available: zinc (01101-1, 460 g), aluminium (01101-1AL, 170 g) and magnesium (01101-1MG, 120 g). The design is also listed under Tecnoseal references 00800, 01411 and 08405. These sacrificial anodes help protect submerged outboard components against galvanic corrosion.

Description
Ask a Question

Tecnoseal Yamaha & Mariner Trim Tab Anode for Mariner 40–60 HP Outboards (After 1991)

The Tecnoseal 01101-1 series consists of sacrificial trim tab anodes for Mariner 40–60 HP outboard motors manufactured after 1991. The circular anode features an integrated trim fin and helps protect submerged metallic components of the outboard lower unit against galvanic corrosion.

Available in zinc, aluminium and magnesium, each version measures 91 mm in diameter and 61 mm in overall height, with a lower section height of 19 mm and a 7/16" UNC mounting thread. The same design is also listed under Tecnoseal references 00800, 01411 and 08405. Choose the appropriate material according to the vessel's operating water conditions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Compatible Outboard	Mariner 40–60 HP
Model Years	After 1991
Available Materials	Zinc, Aluminium, Magnesium
Mounting Thread	7/16" UNC
Other Tecnoseal References	00800, 01411, 08405

Available Versions

Tecnoseal Code	Material	Weight	EAN
01101-1	Zinc	0.46 kg (1.01 lbs)	8059617815554
01101-1AL	Aluminium	0.17 kg (0.37 lbs)	8059617815561
01101-1MG	Magnesium	0.12 kg (0.26 lbs)	8052744983561

Dimensions and Mounting Specifications

Overall Height (h)	61 mm (2.40 in)
Lower Section Height (h1)	19 mm (0.75 in)
Base Diameter (Ø)	91 mm (3.58 in)
Thread (m)	7/16" UNC

Compatibility and References

Compatible Outboard: Mariner 40–60 HP, after 1991
Zinc Version: Tecnoseal 01101-1
Aluminium Version: Tecnoseal 01101-1AL
Magnesium Version: Tecnoseal 01101-1MG
Other Tecnoseal References: 00800 / 01411 / 08405

Key Features

Trim tab anode for Mariner 40–60 HP outboard motors manufactured after 1991.
Circular base with an integrated trim fin.
Available in zinc, aluminium and magnesium versions.
Helps protect submerged outboard components against galvanic corrosion.
Base diameter: 91 mm.
Overall height: 61 mm.
Lower section height: 19 mm.
Mounting thread: 7/16" UNC.
Also listed under Tecnoseal references 00800, 01411 and 08405.

Compatibility Note: Verify the original trim tab dimensions, mounting thread and outboard model before ordering. The 01101-1 series uses a 7/16" UNC thread and should not be confused with the M10 × 1.25 threaded 01101 series.
