Tecnoseal Volvo Penta SX / DP-SM Sterndrive Anode Kit with Mounting Hardware

ID 1405383

$ 137.06

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

680 g
920 g
2.19 kg

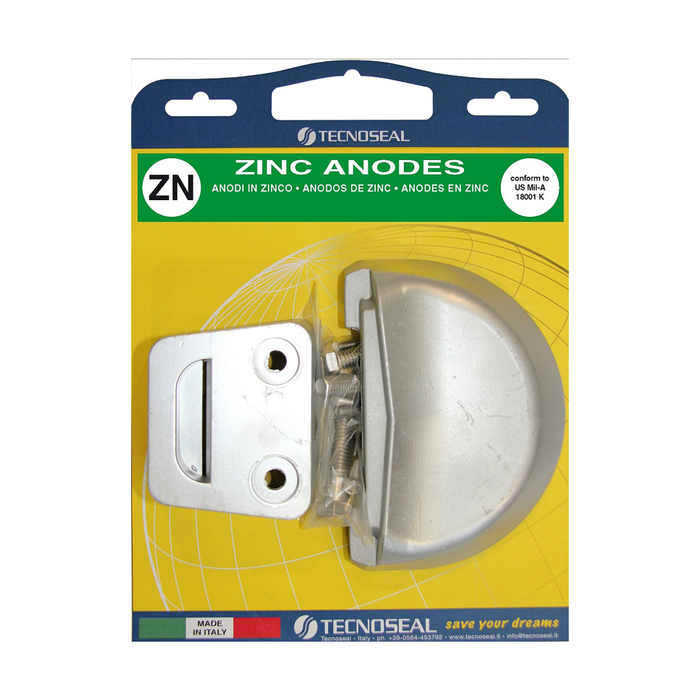

The Tecnoseal KITVOLVOSX series is a sacrificial anode kit designed for Volvo Penta SX and DP-SM sterndrives. Each kit contains one transom plate anode from the 00718 series and one cavitation plate anode from the 00726 series, together with mounting hardware. Three material versions are available: zinc (KITVOLVOSX, 2.19 kg), aluminium (KITVOLVOSX/AL, 0.92 kg) and magnesium (KITVOLVOSX-MG, 0.68 kg). The 00718 transom plate measures 91 × 79 × 47 mm, while the 00726 cavitation plate measures 146 × 104 × 38 mm. Each kit contains two anodes of the selected material to help protect submerged sterndrive components against galvanic corrosion.

Description
Ask a Question

Tecnoseal Volvo Penta SX / DP-SM Sterndrive Anode Kit with Mounting Hardware

The Tecnoseal KITVOLVOSX series consists of sacrificial anode kits designed for Volvo Penta SX and DP-SM sterndrives. Each kit includes one Tecnoseal 00718 series transom plate anode and one 00726 series cavitation plate anode, together with mounting hardware. The replaceable anodes help protect submerged metallic sterndrive components against galvanic corrosion.

Three material versions are available: zinc, aluminium and magnesium. The 00718 series anode measures 91 × 79 × 47 mm, while the 00726 series anode measures 146 × 104 × 38 mm. Each kit contains one anode of each type, made from the selected material. The kits are also cross-referenced to Osculati part numbers 43.342.00, 43.342.01 and 43.342.02, depending on the material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Sterndrive Anode Kit
Compatible Manufacturer	Volvo Penta
Compatible Drives	SX / DP-SM
Available Materials	Zinc, Aluminium, Magnesium
Included Anodes	1 × 00718 Series + 1 × 00726 Series
Total Anodes	2 pcs
Mounting Hardware	Included

Available Kits and Cross-References

Tecnoseal Kit Code	Material	Included Components	Kit Weight	Osculati Reference
KITVOLVOSX	Zinc	1 × 00718 + 1 × 00726	2.19 kg (4.83 lbs)	43.342.00
KITVOLVOSX/AL	Aluminium	1 × 00718AL + 1 × 00726AL	0.92 kg (2.03 lbs)	43.342.01
KITVOLVOSX-MG	Magnesium	1 × 00718MG + 1 × 00726MG	0.68 kg (1.50 lbs)	43.342.02

Transom Plate Anode Dimensions (00718 Series)

Length (l)	91 mm (3.58 in)
Width (a)	79 mm (3.11 in)
Height (h)	47 mm (1.85 in)
Height (h1)	38 mm (1.50 in)
Dimension (i)	51 mm (2.01 in)
Diameter (Ø)	9 mm (0.35 in)
Diameter (Ø1)	20 mm (0.79 in)
Diameter (Ø2)	10 mm (0.39 in)

Cavitation Plate Anode Dimensions (00726 Series)

Length (l)	146 mm (5.75 in)
Width (a)	104 mm (4.09 in)
Height (h)	38 mm (1.50 in)
Dimension (i)	113 mm (4.45 in)
Thread (m)	1/4" UNC

Product Codes and EAN

Tecnoseal Kit Code	EAN
KITVOLVOSX	8033837068600
KITVOLVOSX/AL	8033837069287
KITVOLVOSX-MG	8059617815479

Kit Contents

Zinc Kit – KITVOLVOSX: 1 × Tecnoseal 00718 zinc transom plate anode and 1 × Tecnoseal 00726 zinc cavitation plate anode.
Aluminium Kit – KITVOLVOSX/AL: 1 × Tecnoseal 00718AL aluminium transom plate anode and 1 × Tecnoseal 00726AL aluminium cavitation plate anode.
Magnesium Kit – KITVOLVOSX-MG: 1 × Tecnoseal 00718MG magnesium transom plate anode and 1 × Tecnoseal 00726MG magnesium cavitation plate anode.
Mounting hardware included with each kit.

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Drives: SX and DP-SM Sterndrives
Zinc Kit: Tecnoseal KITVOLVOSX / Osculati 43.342.00
Aluminium Kit: Tecnoseal KITVOLVOSX/AL / Osculati 43.342.01
Magnesium Kit: Tecnoseal KITVOLVOSX-MG / Osculati 43.342.02
00718 Series OEM Reference: Volvo Penta 3854130
00726 Series OEM References: Volvo Penta 3855412 / 3862193

Individual Component Cross-References

Tecnoseal Component	Osculati Reference
00718	43.541.30
00718AL	43.541.31
00718MG	43.541.32
00726	43.554.11
00726AL	43.554.09
00726MG	43.554.10

Key Features

Two-anode kit for Volvo Penta SX and DP-SM sterndrives.
Includes one 00718 series transom plate anode and one 00726 series anode.
Available in zinc, aluminium and magnesium versions.
Mounting hardware included.
Helps protect submerged metallic drive components against galvanic corrosion.
00718 series dimensions: 91 × 79 × 47 mm.
00726 series dimensions: 146 × 104 × 38 mm.
Available packaging options include branded box, blister pack, polybag and skin pack.
Osculati kit cross-references: 43.342.00, 43.342.01 and 43.342.02.

Compatibility Note: Check the Volvo Penta drive model, OEM references and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
