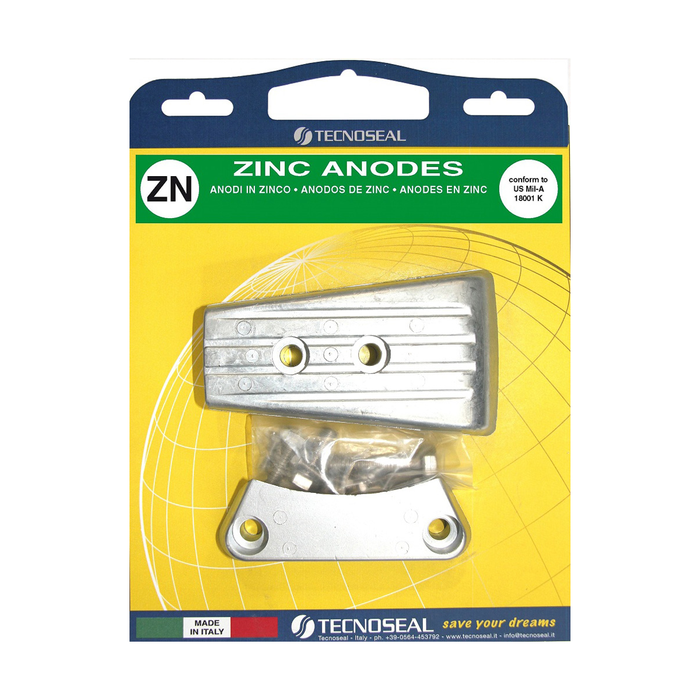

Tecnoseal Volvo Penta DPH/DPR Sterndrive Anode Kit with Mounting Hardware

ID 1405379

$ 118.98

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

550 g
730 g
1.56 kg

The Tecnoseal KITVOLVODPH/DPR series consists of sacrificial anode kits designed for Volvo Penta DPH and DPR sterndrives. Each kit includes one cavitation plate anode from the 00733 series and one transom bar anode from the 00735 series, together with mounting hardware. Three material versions are available: zinc (KITVOLVODPH/DPR, 1.56 kg), aluminium (KITVOLVODPH-DPR-AL, 0.73 kg) and magnesium (KITVOLVODPH-DPR-MG, 0.55 kg). The cavitation plate measures 133 mm in length, 76 mm at its wider end and 35 mm in height, while the transom bar measures 118 mm in length, 37 mm in width and 25 mm in height. Each kit contains two anodes to help protect compatible submerged sterndrive components against galvanic corrosion.

Description
Ask a Question

Tecnoseal Volvo Penta DPH/DPR Sterndrive Anode Kit with Mounting Hardware

The Tecnoseal KITVOLVODPH/DPR series includes sacrificial anode kits designed for Volvo Penta DPH and DPR sterndrives. Each kit contains one cavitation plate anode and one transom bar anode, together with mounting hardware. These anodes help protect submerged metallic sterndrive components against galvanic corrosion.

Three material versions are available: zinc, aluminium and magnesium. Each kit includes one Tecnoseal 00733 series cavitation plate anode and one 00735 series transom bar anode, both made from the selected material. The cavitation plate measures 133 mm in length, 76 mm at its wider end and 35 mm in height, while the transom bar measures 118 mm in length, 37 mm in width and 25 mm in height. All three kits contain the same components, with different weights depending on the anode material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Sterndrive Anode Kit
Compatible Manufacturer	Volvo Penta
Compatible Drives	DPH, DPR
Available Materials	Zinc, Aluminium, Magnesium
Included Anodes	1 Cavitation Plate Anode + 1 Transom Bar Anode
Total Anodes	2 pcs
Mounting Hardware	Included

Available Kits and Cross-References

Tecnoseal Kit Code	Material	Included Components	Kit Weight	Osculati Reference
KITVOLVODPH/DPR	Zinc	1 × 00733 + 1 × 00735	1.56 kg (3.44 lbs)	43.345.00
KITVOLVODPH-DPR-AL	Aluminium	1 × 00733AL + 1 × 00735AL	0.73 kg (1.61 lbs)	43.345.01
KITVOLVODPH-DPR-MG	Magnesium	1 × 00733MG + 1 × 00735MG	0.55 kg (1.21 lbs)	43.345.02

Cavitation Plate Anode Dimensions (00733 Series)

Length (l)	133 mm (5.24 in)
Width (a)	76 mm (2.99 in)
Width (b)	46 mm (1.81 in)
Height (h)	35 mm (1.38 in)
Dimension (i)	35 mm (1.38 in)
Diameter (Ø)	14 mm (0.55 in)
Diameter (Ø1)	9 mm (0.35 in)

Transom Bar Anode Dimensions (00735 Series)

Length (l)	118 mm (4.65 in)
Width (a)	37 mm (1.46 in)
Dimension (b)	101 mm (3.98 in)
Dimension (c)	85 mm (3.35 in)
Height (h)	25 mm (0.98 in)
Dimension (i)	86 mm (3.39 in)
Diameter (Ø)	9.50 mm (0.37 in)
Diameter (Ø1)	15 mm (0.59 in)

Product Codes and EAN

Tecnoseal Kit Code	EAN
KITVOLVODPH/DPR	8033837068846
KITVOLVODPH-DPR-AL	8059617815455
KITVOLVODPH-DPR-MG	8059617815462

Kit Contents

Zinc Kit – KITVOLVODPH/DPR: 1 × Tecnoseal 00733 zinc cavitation plate anode and 1 × Tecnoseal 00735 zinc transom bar anode.
Aluminium Kit – KITVOLVODPH-DPR-AL: 1 × Tecnoseal 00733AL aluminium cavitation plate anode and 1 × Tecnoseal 00735AL aluminium transom bar anode.
Magnesium Kit – KITVOLVODPH-DPR-MG: 1 × Tecnoseal 00733MG magnesium cavitation plate anode and 1 × Tecnoseal 00735MG magnesium transom bar anode.
Mounting hardware included with each kit.

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Drives: DPH and DPR Sterndrives
Zinc Kit: Tecnoseal KITVOLVODPH/DPR / Osculati 43.345.00
Aluminium Kit: Tecnoseal KITVOLVODPH-DPR-AL / Osculati 43.345.01
Magnesium Kit: Tecnoseal KITVOLVODPH-DPR-MG / Osculati 43.345.02

Key Features

Two-anode kit for Volvo Penta DPH and DPR sterndrives.
Includes one cavitation plate anode and one transom bar anode.
Available in zinc, aluminium and magnesium versions.
Mounting hardware included.
Helps protect submerged metallic drive components against galvanic corrosion.
Cavitation plate dimensions: 133 mm length, 76 mm maximum width and 35 mm height.
Transom bar dimensions: 118 mm length, 37 mm width and 25 mm height.
Available packaging options include branded box, blister pack, polybag and skin pack.
Osculati cross-references: 43.345.00, 43.345.01 and 43.345.02.

Compatibility Note: Verify the Volvo Penta drive model and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
