Tecnoseal Volvo Penta 290 Series Sterndrive Anode Kit with Mounting Hardware

Name: Tecnoseal Volvo Penta 290 Series Sterndrive Anode Kit with Mounting Hardware
SKU: Tecnoseal KITVOLVO290

ID 1405363

$ 89.31

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

780 g
1.76 kg
590 g

The Tecnoseal KITVOLVO290 series consists of sacrificial anode kits designed for Volvo Penta 290 Series sterndrives. Each kit contains one outdrive ring anode from the 00703 series and one transom bar anode from the 00708 series, together with mounting hardware. Three material versions are available: zinc (KITVOLVO290, 1.76 kg), aluminium (KITVOLVO290/AL, 0.78 kg) and magnesium (KITVOLVO290-MG, 0.59 kg). The ring anode measures 156 mm in overall length and 35 mm in height, while the transom bar measures 132 × 46 × 25 mm. These anodes provide sacrificial corrosion protection for compatible submerged Volvo Penta 290 Series sterndrive components.

Description
Ask a Question

Tecnoseal Volvo Penta 290 Series Sterndrive Anode Kit with Mounting Hardware

The Tecnoseal KITVOLVO290 series includes sacrificial anode kits designed for Volvo Penta 290 Series sterndrives. Each kit consists of an outdrive ring anode and a transom bar anode, supplied with mounting hardware. The anodes help protect submerged metallic drive components against galvanic corrosion.

Three material versions are available: zinc, aluminium and magnesium. Each kit contains one Tecnoseal 00703 series ring anode and one 00708 series transom bar anode, both made from the selected material. The ring anode measures 156 mm in overall length and 35 mm in height, while the transom bar measures 132 mm in length, 46 mm in width and 25 mm in height. All three kits contain the same types of components, with different weights depending on the anode material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Sterndrive Anode Kit
Compatible Manufacturer	Volvo Penta
Compatible Drive	290 Series Sterndrive
Available Materials	Zinc, Aluminium, Magnesium
Included Anodes	1 Outdrive Ring Anode + 1 Transom Bar Anode
Mounting Hardware	Included

Available Kits and Components

Tecnoseal Kit Code	Material	Included Components	Kit Weight
KITVOLVO290	Zinc	1 × 00703 + 1 × 00708	1.76 kg (3.88 lbs)
KITVOLVO290/AL	Aluminium	1 × 00703AL + 1 × 00708AL	0.78 kg (1.72 lbs)
KITVOLVO290-MG	Magnesium	1 × 00703MG + 1 × 00708MG	0.59 kg (1.30 lbs)

Outdrive Ring Anode Dimensions (00703 Series)

Overall Length (l)	156 mm (6.14 in)
Height (h)	35 mm (1.38 in)
Dimension (i)	80 mm (3.15 in)
Diameter (Ø)	120 mm (4.72 in)
Diameter (Ø1)	61 mm (2.40 in)
Diameter (Ø2)	104 mm (4.09 in)
Diameter (Ø3)	9 mm (0.35 in)

Transom Bar Anode Dimensions (00708 Series)

Length (l)	132 mm (5.20 in)
Width (a)	46 mm (1.81 in)
Height (h)	25 mm (0.98 in)
Dimension (i)	86 mm (3.39 in)
Diameter (Ø)	8.50 mm (0.33 in)
Diameter (Ø1)	14 mm (0.55 in)

Product Codes and EAN

Tecnoseal Kit Code	EAN
KITVOLVO290	8033837068617
KITVOLVO290/AL	8033837069263
KITVOLVO290-MG	8059617815370

Kit Contents

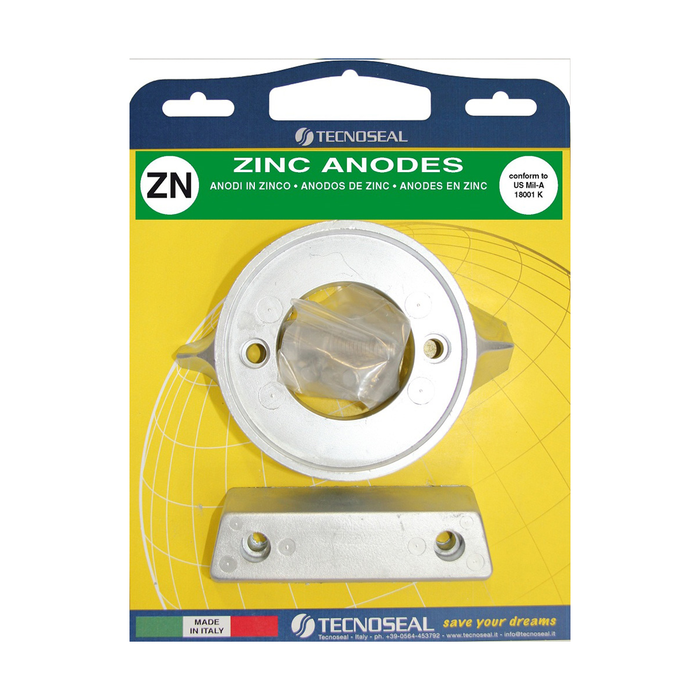

Zinc Kit – KITVOLVO290: 1 × Tecnoseal 00703 zinc outdrive ring anode and 1 × Tecnoseal 00708 zinc transom bar anode.
Aluminium Kit – KITVOLVO290/AL: 1 × Tecnoseal 00703AL aluminium outdrive ring anode and 1 × Tecnoseal 00708AL aluminium transom bar anode.
Magnesium Kit – KITVOLVO290-MG: 1 × Tecnoseal 00703MG magnesium outdrive ring anode and 1 × Tecnoseal 00708MG magnesium transom bar anode.
Mounting hardware included with each kit.

Key Features

Two-anode kit for Volvo Penta 290 Series sterndrives.
Includes one outdrive ring anode and one transom bar anode.
Available in zinc, aluminium and magnesium versions.
Mounting hardware included.
Helps protect submerged metallic sterndrive components against galvanic corrosion.
Ring anode overall length: 156 mm.
Transom bar dimensions: 132 × 46 × 25 mm.
Available packaging options include branded box, blister pack, polybag and skin pack.

Compatibility Note: Verify the Volvo Penta drive model and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
