Tecnoseal Volvo Penta 280 Series Sterndrive Anode Kit with Mounting Hardware

ID 1405355

$ 93.26

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

870 g
1.94 kg

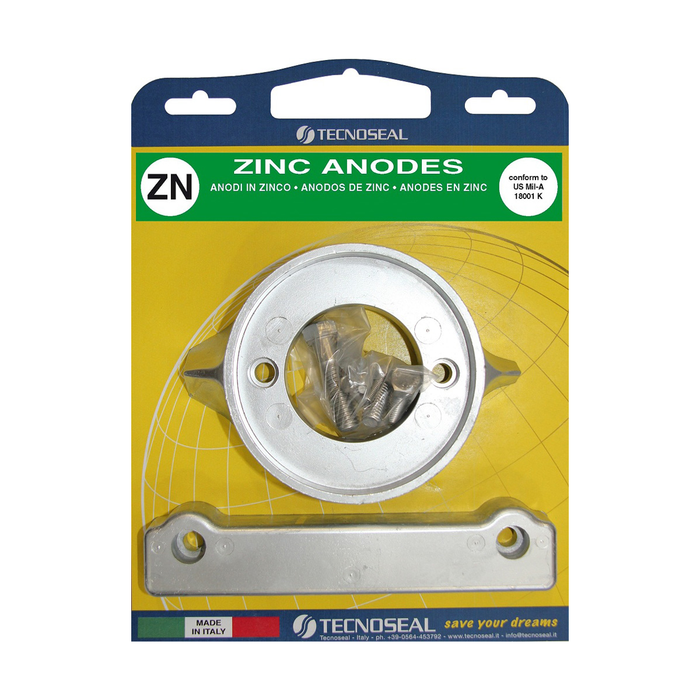

The Tecnoseal KITVOLVO280 series is a sacrificial anode kit designed for Volvo Penta 280 Series sterndrives. Each kit contains two anodes: one outdrive ring anode (00703 series) and one transom bar anode (00707 series), together with mounting hardware. Three material options are available: zinc (KITVOLVO280, 1.94 kg), aluminium (KITVOLVO280/AL, 0.87 kg) and magnesium (KITVOLVO280-MG, 0.87 kg). The ring anode measures 156 mm in overall length and 35 mm in height, while the transom bar measures 188 × 41 × 22 mm. The kit provides sacrificial corrosion protection for compatible Volvo Penta 280 Series sterndrive components.

Description
Ask a Question

Tecnoseal Volvo Penta 280 Series Sterndrive Anode Kit with Mounting Hardware

The Tecnoseal KITVOLVO280 series consists of sacrificial anode kits designed for Volvo Penta 280 Series sterndrives. Each kit includes an outdrive ring anode and a transom bar anode, together with mounting hardware. The anodes help protect submerged metallic drive components against galvanic corrosion.

Three versions are available: zinc, aluminium and magnesium. Each kit contains one anode from the Tecnoseal 00703 series and one from the 00707 series, matched by material. The ring anode measures 156 mm in overall length and 35 mm in height, while the transom bar measures 188 mm in length, 41 mm in width and 22 mm in height. The kits have the same component configuration, with different materials and total listed weights.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Sterndrive Anode Kit
Compatible Manufacturer	Volvo Penta
Compatible Series	280 Series
Available Materials	Zinc, Aluminium, Magnesium
Included Anodes	1 Outdrive Ring Anode + 1 Transom Bar Anode
Mounting Hardware	Included

Available Kits and Cross-References

Tecnoseal Kit Code	Material	Kit Weight	Osculati Reference
KITVOLVO280	Zinc	1.94 kg (4.28 lbs)	43.340.00
KITVOLVO280/AL	Aluminium	0.87 kg (1.92 lbs)	43.340.01
KITVOLVO280-MG	Magnesium	0.87 kg (1.92 lbs)	43.340.02

Kit Contents

Kit	Ring Anode	Transom Bar Anode
Zinc KITVOLVO280	1 × 00703	1 × 00707
Aluminium KITVOLVO280/AL	1 × 00703AL	1 × 00707AL
Magnesium KITVOLVO280-MG	1 × 00703MG	1 × 00707MG

Outdrive Ring Anode Dimensions (00703 Series)

Overall Length (l)	156 mm (6.14 in)
Height (h)	35 mm (1.38 in)
Dimension (i)	80 mm (3.15 in)
Diameter (Ø)	120 mm (4.72 in)
Diameter (Ø1)	61 mm (2.40 in)
Diameter (Ø2)	104 mm (4.09 in)
Diameter (Ø3)	9 mm (0.35 in)

Transom Bar Anode Dimensions (00707 Series)

Length (l)	188 mm (7.40 in)
Width (a)	41 mm (1.61 in)
Height (h)	22 mm (0.87 in)
Dimension (i)	145 mm (5.71 in)
Diameter (Ø)	15 mm (0.59 in)
Diameter (Ø1)	9 mm (0.35 in)

Product Codes and EAN

Tecnoseal Kit Code	EAN
KITVOLVO280	8033837068587
KITVOLVO280/AL	8033837069249
KITVOLVO280-MG	8059617815356

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Drive: 280 Series Sterndrive
Zinc Kit: Tecnoseal KITVOLVO280 / Osculati 43.340.00
Aluminium Kit: Tecnoseal KITVOLVO280/AL / Osculati 43.340.01
Magnesium Kit: Tecnoseal KITVOLVO280-MG / Osculati 43.340.02

Key Features

Two-anode kit for Volvo Penta 280 Series sterndrives.
Includes one outdrive ring anode and one transom bar anode.
Mounting hardware included.
Available in zinc, aluminium and magnesium.
Provides sacrificial corrosion protection for submerged sterndrive components.
Ring anode overall length: 156 mm.
Transom bar dimensions: 188 × 41 × 22 mm.
Available packaging options include branded box, blister pack, polybag and skin pack.
Osculati cross-references: 43.340.00, 43.340.01 and 43.340.02.

Compatibility Note: Verify the Volvo Penta drive model and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
