Tecnoseal Volvo Penta 290 Duo Prop Sterndrive Anode Kit with Mounting Hardware

Name: Tecnoseal Volvo Penta 290 Duo Prop Sterndrive Anode Kit with Mounting Hardware
SKU: Tecnoseal KITVOLVODP290

ID 1405371

$ 79.92

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

400 g
630 g
1.40 kg

The Tecnoseal KITVOLVODP290 series is a sacrificial anode kit designed for Volvo Penta 290 Duo Prop sterndrives. Each kit includes one outdrive ring anode from the 00704BIS series and one transom bar anode from the 00708 series, together with mounting hardware. Available in zinc (KITVOLVODP290, 1.40 kg), aluminium (KITVOLVODP290/AL, 0.63 kg) and magnesium (KITVOLVODP290-MG, 0.40 kg), the kits help protect submerged metallic sterndrive components against galvanic corrosion. The ring anode measures 146 mm in overall length and 30 mm in height, while the transom bar measures 132 × 46 × 25 mm. Each kit contains two anodes of the selected material, with mounting hardware included.

Description
Ask a Question

Tecnoseal Volvo Penta 290 Duo Prop Sterndrive Anode Kit with Mounting Hardware

The Tecnoseal KITVOLVODP290 series includes sacrificial anode kits designed for Volvo Penta 290 Duo Prop sterndrives. Each kit contains an outdrive ring anode and a transom bar anode, together with mounting hardware. These anodes help protect submerged metallic sterndrive components against galvanic corrosion.

Three material versions are available: zinc, aluminium and magnesium. Each kit includes one Tecnoseal 00704BIS series ring anode and one 00708 series transom bar anode, both made from the selected material. The ring anode measures 146 mm in overall length and 30 mm in height, while the transom bar measures 132 mm in length, 46 mm in width and 25 mm in height. All three kits share the same component configuration, with different weights depending on the anode material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Sterndrive Anode Kit
Compatible Manufacturer	Volvo Penta
Compatible Drive	290 Duo Prop Series
Available Materials	Zinc, Aluminium, Magnesium
Included Anodes	1 Outdrive Ring Anode + 1 Transom Bar Anode
Total Anodes	2 pcs
Mounting Hardware	Included

Available Kits and Components

Tecnoseal Kit Code	Material	Included Components	Kit Weight
KITVOLVODP290	Zinc	1 × 00704BIS + 1 × 00708	1.40 kg (3.09 lbs)
KITVOLVODP290/AL	Aluminium	1 × 00704BISAL + 1 × 00708AL	0.63 kg (1.39 lbs)
KITVOLVODP290-MG	Magnesium	1 × 00704BISMG + 1 × 00708MG	0.40 kg (0.88 lbs)

Outdrive Ring Anode Dimensions (00704BIS Series)

Overall Length (l)	146 mm (5.75 in)
Height (h)	30 mm (1.18 in)
Dimension (i)	91 mm (3.58 in)
Diameter (Ø)	111 mm (4.37 in)
Diameter (Ø1)	85 mm (3.35 in)
Diameter (Ø2)	9 mm (0.35 in)

Transom Bar Anode Dimensions (00708 Series)

Length (l)	132 mm (5.20 in)
Width (a)	46 mm (1.81 in)
Height (h)	25 mm (0.98 in)
Dimension (i)	86 mm (3.39 in)
Diameter (Ø)	8.50 mm (0.33 in)
Diameter (Ø1)	14 mm (0.55 in)

Product Codes and EAN

Tecnoseal Kit Code	EAN
KITVOLVODP290	8033837068624
KITVOLVODP290/AL	8033837069270
KITVOLVODP290-MG	8059617815417

Kit Contents

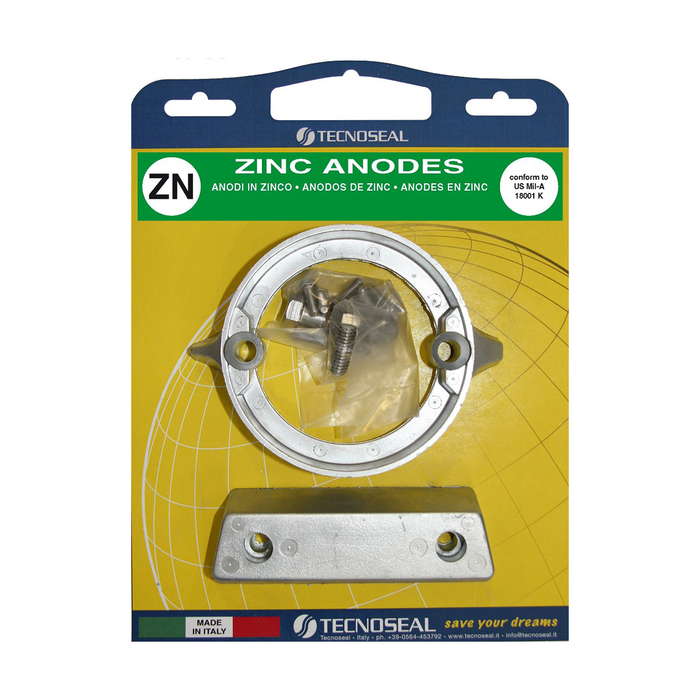

Zinc Kit – KITVOLVODP290: 1 × Tecnoseal 00704BIS zinc outdrive ring anode and 1 × Tecnoseal 00708 zinc transom bar anode.
Aluminium Kit – KITVOLVODP290/AL: 1 × Tecnoseal 00704BISAL aluminium outdrive ring anode and 1 × Tecnoseal 00708AL aluminium transom bar anode.
Magnesium Kit – KITVOLVODP290-MG: 1 × Tecnoseal 00704BISMG magnesium outdrive ring anode and 1 × Tecnoseal 00708MG magnesium transom bar anode.
Mounting hardware included with each kit.

Key Features

Two-anode kit for Volvo Penta 290 Duo Prop sterndrives.
Includes one outdrive ring anode and one transom bar anode.
Available in zinc, aluminium and magnesium versions.
Mounting hardware included.
Helps protect submerged metallic sterndrive components against galvanic corrosion.
Ring anode overall length: 146 mm.
Transom bar dimensions: 132 × 46 × 25 mm.
Available packaging options include branded box, blister pack, polybag and skin pack.

Compatibility Note: Verify the Volvo Penta drive model and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
