Tecnoseal Volvo Penta 290 Series Plus Sterndrive Anode Kit with Mounting Hardware

ID 1405367

$ 112.55

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

750 g
560 g
1.50 kg

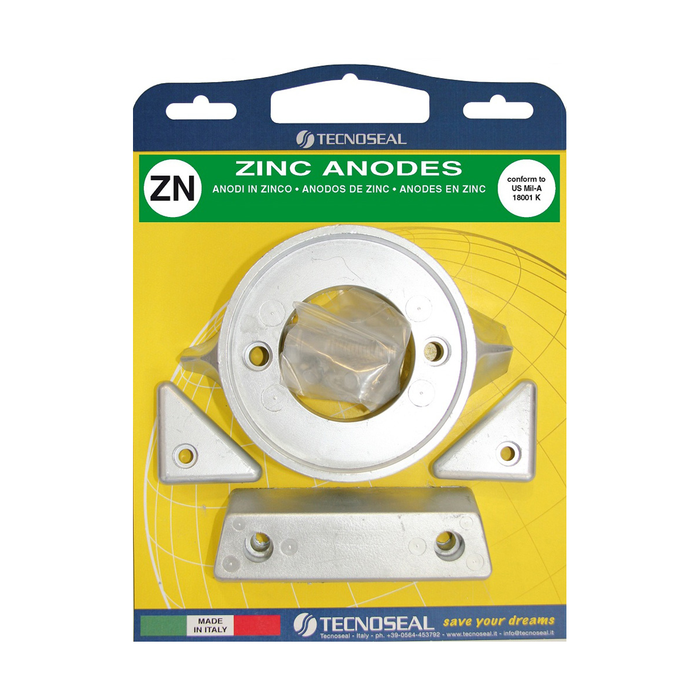

The Tecnoseal KITVOLVO290-C series consists of sacrificial anode kits designed for Volvo Penta 290 Series sterndrives. Each Plus kit includes one outdrive ring anode (00703 series), one transom bar anode (00708 series) and two triangular anode plates (00717 series), together with mounting hardware. Three material versions are available: zinc (KITVOLVO290-C, 1.50 kg), aluminium (KITVOLVO290-AL-C, 0.75 kg) and magnesium (KITVOLVO290-MG-C, 0.56 kg). The ring anode measures 156 mm in overall length and 35 mm in height, the transom bar measures 132 × 46 × 25 mm, and each triangular plate measures 65 × 38 × 13 mm. The kit contains four sacrificial anodes to help protect compatible submerged sterndrive components against galvanic corrosion.

Description
Ask a Question

Tecnoseal Volvo Penta 290 Series Plus Sterndrive Anode Kit with Mounting Hardware

The Tecnoseal KITVOLVO290-C series includes sacrificial anode kits designed for Volvo Penta 290 Series sterndrives. Each Plus kit contains one outdrive ring anode, one transom bar anode and two triangular anode plates, together with mounting hardware. The anodes help protect submerged metallic sterndrive components against galvanic corrosion.

Three material versions are available: zinc, aluminium and magnesium. Each kit contains one Tecnoseal 00703 series ring anode, one 00708 series transom bar anode and two 00717 series triangular anode plates, all made from the selected material. The ring anode measures 156 mm in overall length and 35 mm in height, the transom bar measures 132 × 46 × 25 mm, and each triangular plate measures 65 × 38 × 13 mm.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Sterndrive Anode Kit
Series	290 Series Plus
Compatible Manufacturer	Volvo Penta
Compatible Drive	290 Series
Available Materials	Zinc, Aluminium, Magnesium
Included Anodes	1 Ring Anode + 1 Transom Bar Anode + 2 Triangular Anode Plates
Total Anodes	4 pcs
Mounting Hardware	Included

Available Kits and Cross-References

Tecnoseal Kit Code	Material	Weight	Osculati Reference
KITVOLVO290-C	Zinc	1.50 kg (3.31 lbs)	43.343.00
KITVOLVO290-AL-C	Aluminium	0.75 kg (1.65 lbs)	43.343.01
KITVOLVO290-MG-C	Magnesium	0.56 kg (1.23 lbs)	43.343.02

Kit Contents

Kit	Ring Anode	Transom Bar Anode	Triangular Plates
Zinc KITVOLVO290-C	1 × 00703	1 × 00708	2 × 00717
Aluminium KITVOLVO290-AL-C	1 × 00703AL	1 × 00708AL	2 × 00717AL
Magnesium KITVOLVO290-MG-C	1 × 00703MG	1 × 00708MG	2 × 00717MG

Outdrive Ring Anode Dimensions (00703 Series)

Overall Length (l)	156 mm (6.14 in)
Height (h)	35 mm (1.38 in)
Dimension (i)	80 mm (3.15 in)
Diameter (Ø)	120 mm (4.72 in)
Diameter (Ø1)	61 mm (2.40 in)
Diameter (Ø2)	104 mm (4.09 in)
Diameter (Ø3)	9 mm (0.35 in)

Transom Bar Anode Dimensions (00708 Series)

Length (l)	132 mm (5.20 in)
Width (a)	46 mm (1.81 in)
Height (h)	25 mm (0.98 in)
Dimension (i)	86 mm (3.39 in)
Diameter (Ø)	8.50 mm (0.33 in)
Diameter (Ø1)	14 mm (0.55 in)

Triangular Anode Plate Dimensions (00717 Series)

Length (l)	65 mm (2.56 in)
Width (a)	38 mm (1.50 in)
Height (h)	13 mm (0.51 in)
Diameter (Ø)	11 mm (0.43 in)
Diameter (Ø1)	6.50 mm (0.26 in)
Quantity	2 pcs per kit

Product Codes and EAN

Tecnoseal Kit Code	EAN
KITVOLVO290-C	8059617815387
KITVOLVO290-AL-C	8059617815394
KITVOLVO290-MG-C	8059617815400

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Drive: 290 Series Sterndrive
Zinc Kit: Tecnoseal KITVOLVO290-C / Osculati 43.343.00
Aluminium Kit: Tecnoseal KITVOLVO290-AL-C / Osculati 43.343.01
Magnesium Kit: Tecnoseal KITVOLVO290-MG-C / Osculati 43.343.02

Key Features

Four-anode kit for Volvo Penta 290 Series sterndrives.
Includes one outdrive ring anode, one transom bar anode and two triangular anode plates.
Available in zinc, aluminium and magnesium versions.
Mounting hardware included.
Helps protect submerged metallic drive components against galvanic corrosion.
Ring anode overall length: 156 mm.
Transom bar dimensions: 132 × 46 × 25 mm.
Triangular plate dimensions: 65 × 38 × 13 mm each.
Available packaging options include branded box, blister pack, polybag and skin pack.
Osculati cross-references: 43.343.00, 43.343.01 and 43.343.02.

Compatibility Note: Verify the Volvo Penta drive model and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
