Tecnoseal Volvo Penta 280 Duo Prop Sterndrive Anode Kit with Mounting Hardware

ID 1405359

$ 83.86

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

720 g
490 g
1.56 kg

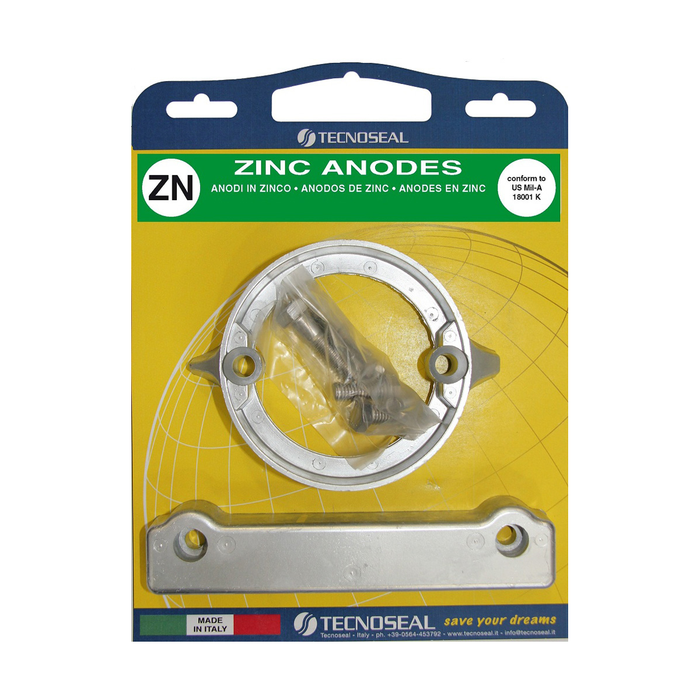

The Tecnoseal KITVOLVODP280 series consists of sacrificial anode kits designed for Volvo Penta 280 Duo Prop sterndrives. Each kit includes one outdrive ring anode from the 00704BIS series and one transom bar anode from the 00707 series, together with mounting hardware. Available in zinc (KITVOLVODP280, 1.56 kg), aluminium (KITVOLVODP280/AL, 0.72 kg) and magnesium (KITVOLVODP280-MG, 0.49 kg), the kits provide corrosion protection for compatible submerged sterndrive components. The ring anode measures 146 mm in overall length and 30 mm in height, while the transom bar measures 188 × 41 × 22 mm. Each kit contains two anodes of the same material and the necessary mounting hardware.

Description
Ask a Question

Tecnoseal Volvo Penta 280 Duo Prop Sterndrive Anode Kit with Mounting Hardware

The Tecnoseal KITVOLVODP280 series includes sacrificial anode kits designed for Volvo Penta 280 Duo Prop sterndrives. Each kit contains an outdrive ring anode and a transom bar anode, together with mounting hardware. These anodes help protect submerged metallic sterndrive components against galvanic corrosion.

Three material versions are available: zinc, aluminium and magnesium. Each kit includes one anode from the Tecnoseal 00704BIS series and one from the 00707 series, both made from the selected material. The outdrive ring anode measures 146 mm in overall length and 30 mm in height, while the transom bar measures 188 mm in length, 41 mm in width and 22 mm in height.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Sterndrive Anode Kit
Compatible Manufacturer	Volvo Penta
Compatible Drive	280 Duo Prop Series
Available Materials	Zinc, Aluminium, Magnesium
Included Anodes	1 Outdrive Ring Anode + 1 Transom Bar Anode
Mounting Hardware	Included

Available Kits and Cross-References

Tecnoseal Kit Code	Material	Weight	Osculati Reference
KITVOLVODP280	Zinc	1.56 kg (3.44 lbs)	43.341.00
KITVOLVODP280/AL	Aluminium	0.72 kg (1.59 lbs)	43.341.01
KITVOLVODP280-MG	Magnesium	0.49 kg (1.08 lbs)	43.341.02

Kit Contents

Kit	Transom Bar Anode	Outdrive Ring Anode
Zinc KITVOLVODP280	1 × 00707	1 × 00704BIS
Aluminium KITVOLVODP280/AL	1 × 00707AL	1 × 00704BISAL
Magnesium KITVOLVODP280-MG	1 × 00707MG	1 × 00704BISMG

Outdrive Ring Anode Dimensions (00704BIS Series)

Overall Length (l)	146 mm (5.75 in)
Height (h)	30 mm (1.18 in)
Dimension (i)	91 mm (3.58 in)
Diameter (Ø)	111 mm (4.37 in)
Diameter (Ø1)	85 mm (3.35 in)
Diameter (Ø2)	9 mm (0.35 in)

Transom Bar Anode Dimensions (00707 Series)

Length (l)	188 mm (7.40 in)
Width (a)	41 mm (1.61 in)
Height (h)	22 mm (0.87 in)
Dimension (i)	145 mm (5.71 in)
Diameter (Ø)	15 mm (0.59 in)
Diameter (Ø1)	9 mm (0.35 in)

Product Codes and EAN

Tecnoseal Kit Code	EAN
KITVOLVODP280	8033837068594
KITVOLVODP280/AL	8033837069256
KITVOLVODP280-MG	8059617815363

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Drive: 280 Duo Prop Sterndrive
Zinc Kit: Tecnoseal KITVOLVODP280 / Osculati 43.341.00
Aluminium Kit: Tecnoseal KITVOLVODP280/AL / Osculati 43.341.01
Magnesium Kit: Tecnoseal KITVOLVODP280-MG / Osculati 43.341.02

Key Features

Two-anode kit for Volvo Penta 280 Duo Prop sterndrives.
Includes one outdrive ring anode and one transom bar anode.
Available in zinc, aluminium and magnesium.
Mounting hardware included.
Helps protect submerged metallic drive components against galvanic corrosion.
Ring anode overall length: 146 mm.
Transom bar dimensions: 188 × 41 × 22 mm.
Available packaging options include branded box, blister pack, polybag and skin pack.
Osculati cross-references: 43.341.00, 43.341.01 and 43.341.02.

Compatibility Note: Verify the Volvo Penta drive model and existing anode dimensions before ordering. Select the appropriate anode material for the vessel's operating water conditions.
