Tecnoseal 23520859 23520860 Volvo Penta Trim Tab Anode for DPI Drive

ID 1405352

$ 107.87

1-2 weeks delivery time

Type:

Magnesium
Aluminium

Item:

450 g
710 g

The Tecnoseal 00748 series consists of sacrificial trim tab anodes compatible with Volvo Penta drive applications, corresponding to OEM part numbers 23520859 and 23520860. The anodes feature a tapered plate-shaped body with two mounting holes and measure 155 mm in length (l), 112 mm in width (a), 63 mm at the narrower end (b) and 40 mm in height (h). The mounting hole spacing (i) is 35 mm, with a hole diameter (Ø1) of 8.5 mm. Available in zinc (00748, 1.80 kg), aluminium (00748AL, 0.71 kg, Osculati 43.556.01) and magnesium (00748MG, 0.45 kg, Osculati 43.558.01), all three versions share identical dimensions and mounting geometry. These sacrificial anodes help protect compatible submerged Volvo Penta drive components against galvanic corrosion.

Description
Ask a Question

Tecnoseal 23520859 23520860 Volvo Penta Trim Tab Anode for DPI Drive

The Tecnoseal 00748 series includes sacrificial trim tab anodes compatible with Volvo Penta drive applications, including the DPI sterndrive application identified in the corresponding Osculati references. These anodes correspond to Volvo Penta OEM part numbers 23520859 and 23520860 and help protect submerged metallic drive components against galvanic corrosion. Three material versions are available: zinc, aluminium and magnesium.

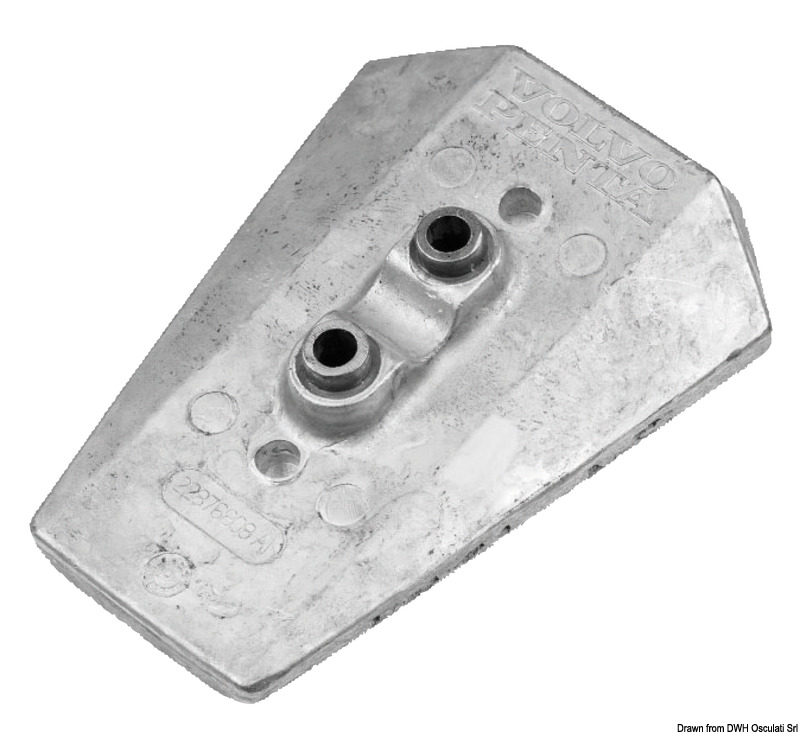

Each anode features a tapered plate-shaped body with two mounting holes. The body measures 155 mm in length (l), 112 mm in width (a), 63 mm at the narrower end (b) and 40 mm in height (h). The mounting hole spacing (i) is 35 mm, with a mounting hole diameter (Ø1) of 8.5 mm. All three versions share identical dimensions and mounting geometry, with different weights according to the selected material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Compatible Manufacturer	Volvo Penta
Application	Volvo Penta Drive / DPI Sterndrive
Volvo Penta OEM References	23520859, 23520860
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	155 mm (6.10 in)
Width (a)	112 mm (4.41 in)
Narrow-End Width (b)	63 mm (2.48 in)
Height (h)	40 mm (1.57 in)
Mounting Hole Spacing (i)	35 mm (1.38 in)
Mounting Hole Diameter (Ø1)	8.5 mm (0.33 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00748	Zinc	1.80 kg (3.97 lbs)	Not specified
00748AL	Aluminium	0.71 kg (1.57 lbs)	43.556.01
00748MG	Magnesium	0.45 kg (0.99 lbs)	43.558.01

Product Codes and EAN

Tecnoseal Code	EAN
00748	8052530702796
00748AL	8052530702802
00748MG	8052530702819

Compatibility and References

Compatible Brand: Volvo Penta
Application: Trim Tab / DPI Sterndrive
Volvo Penta OEM References: 23520859, 23520860
Zinc: Tecnoseal 00748
Aluminium: Tecnoseal 00748AL / Osculati 43.556.01
Magnesium: Tecnoseal 00748MG / Osculati 43.558.01

Key Features

Sacrificial anode for compatible Volvo Penta trim tab and DPI drive applications.
Available in zinc, aluminium and magnesium.
Helps protect submerged metallic drive components against galvanic corrosion.
Tapered plate-shaped construction with two mounting holes.
Overall length: 155 mm.
Width: 112 mm at the wider end and 63 mm at the narrower end.
Height: 40 mm.
Mounting hole spacing: 35 mm.
Mounting hole diameter: 8.5 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM references: 23520859 and 23520860.
Osculati references: 43.556.01 (aluminium) and 43.558.01 (magnesium).

Compatibility Note: Verify the Volvo Penta OEM reference and mounting dimensions against the existing drive anode before ordering.
