ID
1405351
$ 51.72
1-2 weeks delivery time
-
+
The Tecnoseal 00746 is a pair of zinc sacrificial anodes designed for Volvo Penta QL trim tab systems, corresponding to OEM part number 41100049. Each anode features a rectangular bar-shaped body with two recessed mounting holes, measuring 95 mm in length, 25 mm in width and 20 mm in height. The mounting hole spacing is 64.5 mm, with a recess diameter of 12.5 mm and a through-hole diameter of 7 mm. Supplied as a pair, these anodes help protect compatible trim tab components against galvanic corrosion. The listed catalogue weight is 0.28 kg (0.62 lbs).
- Description
- Ask a Question
-

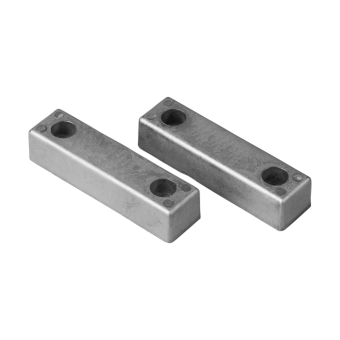

Tecnoseal 41100049 Volvo Penta QL Trim Tab Zinc Anodes 95 mm (Pair)
The Tecnoseal 00746 is a set of two zinc sacrificial anodes designed for Volvo Penta QL trim tab systems. The anodes correspond to Volvo Penta OEM part number 41100049 and help protect compatible metallic trim tab components against galvanic corrosion. The product is supplied as a pair.

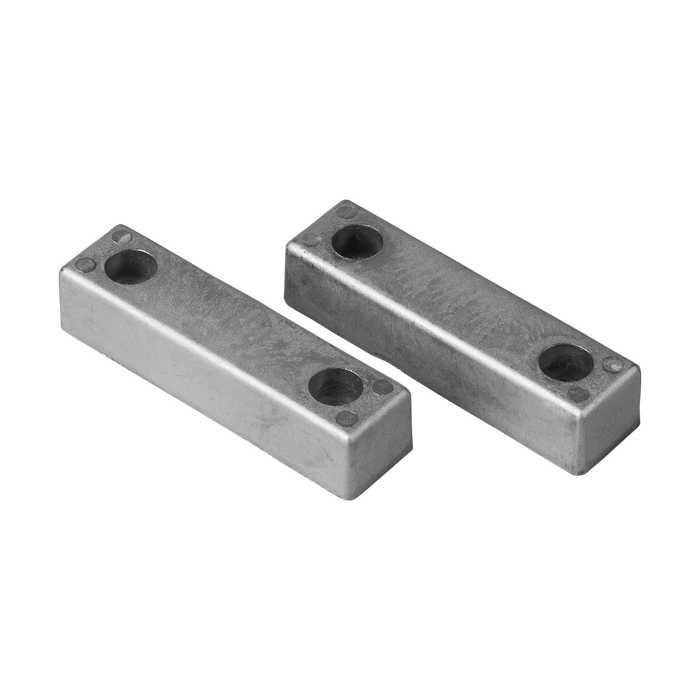

Each anode features a rectangular bar-shaped body with two recessed mounting holes. It measures 95 mm in length (l), 25 mm in width (a) and 20 mm in height (h). The centre-to-centre mounting hole spacing (i) is 64.5 mm, with a recess diameter (Ø) of 12.5 mm and a through-hole diameter (Ø1) of 7 mm. The listed catalogue weight is 0.28 kg (0.62 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 00746 Product Type QL Trim Tab Anodes Material Zinc Compatible Manufacturer Volvo Penta Application QL Trim Tab System Volvo Penta OEM Reference 41100049 Quantity 2 anodes (1 pair) Length (l) 95 mm (3.74 in) Width (a) 25 mm (0.98 in) Height (h) 20 mm (0.79 in) Mounting Hole Spacing (i) 64.50 mm (2.54 in) Recess Diameter (Ø) 12.50 mm (0.49 in) Through-Hole Diameter (Ø1) 7 mm (0.28 in) Catalogue Weight 0.28 kg (0.62 lbs) EAN 8058774835719
Compatibility and References
- Compatible Brand: Volvo Penta
- Compatible System: QL Trim Tabs
- Volvo Penta OEM Part Number: 41100049
- Tecnoseal Part Number: 00746
- Supplied Quantity: 2 zinc anodes
Key Features
- Zinc sacrificial anodes for Volvo Penta QL trim tab systems.
- Supplied as a pair (2 pieces).
- Help protect metallic trim tab components against galvanic corrosion.
- Rectangular bar-shaped construction.
- Two recessed mounting holes per anode.
- Length: 95 mm.
- Width: 25 mm.
- Height: 20 mm.
- Mounting hole spacing: 64.5 mm.
- Recess diameter: 12.5 mm.
- Through-hole diameter: 7 mm.
- Volvo Penta OEM reference: 41100049.
Compatibility Note: Verify OEM part number 41100049 and the mounting dimensions against the existing Volvo Penta QL trim tab anodes before ordering.
-
