ID
1405063
$ 19.16
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
Item:
- 20 g
- 70 g
The Tecnoseal 01914 series includes sacrificial cylinder anodes designed for Selva 80-100HP marine engines, helping protect compatible engine components against galvanic corrosion. Each anode features a cylindrical body with a square-shaped end and an M6 internal mounting thread. It measures 32 mm in overall length (l), 23 mm in diameter (Ø) and 15 mm along dimension h1, with additional dimensions a = 5 mm, b = 17 mm and c = 10 mm. Available in zinc (01914, 0.07 kg), aluminium (01914AL, 0.027 kg) and magnesium (01914MG, 0.02 kg), the series is also listed under Tecnoseal references 01146 and 00846.
- Description
- Ask a Question
-

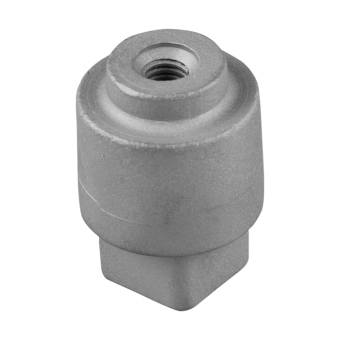

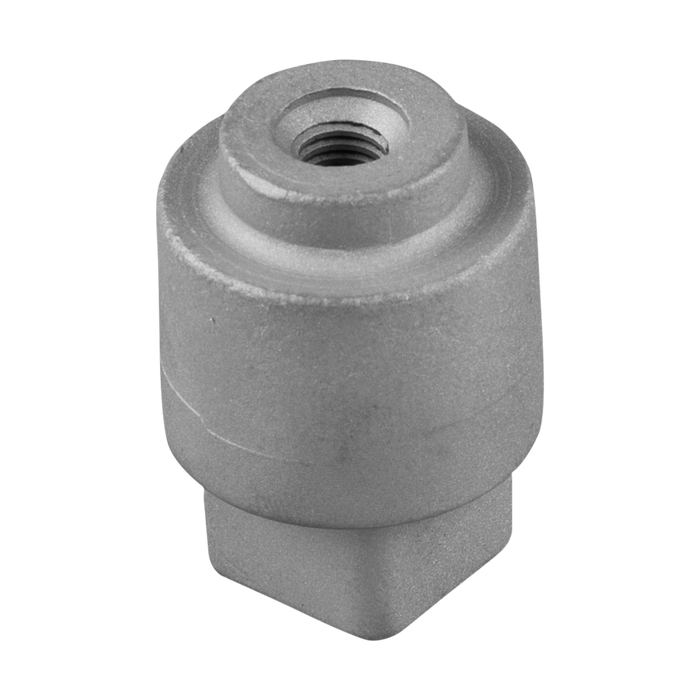

Tecnoseal Selva 80-100HP Cylinder Anode Ø23 mm M6
The Tecnoseal 01914 series includes sacrificial cylinder anodes designed for Selva 80-100HP marine engines. These anodes help protect compatible metallic engine components against galvanic corrosion and are available in zinc, aluminium and magnesium.
Each anode features a cylindrical body with a square-shaped end and an internal M6 mounting thread. It measures 32 mm in overall length and 23 mm in outer diameter. Additional dimensions include a = 5 mm, b = 17 mm, c = 10 mm and h1 = 15 mm. All three material versions have identical dimensions but different weights.
Technical Specifications
Manufacturer Tecnoseal Product Type Cylinder Engine Anode Engine Brand Selva Compatible Engines 80-100 HP Available Materials Zinc, Aluminium, Magnesium Overall Length (l) 32 mm (1.26 in) Dimension a 5 mm (0.20 in) Dimension b 17 mm (0.67 in) Dimension c 10 mm (0.39 in) Dimension h1 15 mm (0.59 in) Outer Diameter (Ø) 23 mm (0.91 in) Internal Thread (m) M6
Available Variants
Tecnoseal Code Material Weight 01914 Zinc 0.07 kg (0.15 lbs) 01914AL Aluminium 0.027 kg (0.06 lbs) 01914MG Magnesium 0.02 kg (0.04 lbs)
Compatibility and References
- Engine Manufacturer: Selva
- Compatible Engines: 80-100 HP
- Application: Marine Engine Corrosion Protection
- Zinc Version: Tecnoseal 01914
- Aluminium Version: Tecnoseal 01914AL
- Magnesium Version: Tecnoseal 01914MG
- Same As: Tecnoseal 01146, 00846
Key Features
- Sacrificial cylinder anode for Selva 80-100HP engines.
- Available in zinc, aluminium and magnesium.
- Helps protect compatible metallic engine components against galvanic corrosion.
- Cylindrical body with square-shaped end.
- Overall length: 32 mm.
- Outer diameter: 23 mm.
- Internal M6 mounting thread.
- Additional dimensions: a = 5 mm, b = 17 mm, c = 10 mm and h1 = 15 mm.
- Identical dimensions across all three material versions.
- Equivalent Tecnoseal references: 01146 and 00846.
-
