Tecnoseal Scania Zinc Pencil Anodes Ø17x45 mm with 1/2" BSPP Brass Plugs

Tecnoseal Scania Zinc Pencil Anodes Ø17x45 mm with 1/2" BSPP Brass Plugs

Tecnoseal Scania zinc pencil anodes are complete sacrificial anode assemblies designed for compatible Scania marine engine cooling systems and heat exchangers. Each assembly combines a cylindrical zinc element with a brass mounting plug, providing replaceable corrosion protection for metallic components exposed to cooling water.

The range includes two models, Tecnoseal 02200T and 02201T, both featuring a zinc rod measuring 17 mm (0.67 in) in diameter and 45 mm (1.77 in) in length. Their brass mounting plugs use a 1/2" GAS (BSPP) parallel external thread and have a 17 mm (0.67 in) head dimension.

The two models differ in the internal connection used to attach the zinc rod to the brass plug. The 02200T is associated with an M12x1 connection, while the 02201T uses an M6 connection and corresponds to Scania original part number 1331818.

Both assemblies weigh 0.13 kg (0.29 lbs), use the Tecnoseal 4T pencil configuration and are supplied complete with their brass mounting plugs.

Key Features

• Manufacturer: Tecnoseal
• Compatible Brand: Scania
• Product Type: Sacrificial pencil anode with brass plug
• Anode Material: Zinc
• Plug Material: Brass
• Configuration: Complete with Brass Plug
• Available Models: 02200T, 02201T
• Zinc Rod Diameter: 17 mm
• Zinc Rod Length: 45 mm
• External Plug Thread: 1/2" GAS (BSPP)
• Internal Anode Connections: M12x1 and M6
• Plug Head Dimension: 17 mm
• Pencil Type: 4T
• Weight: 0.13 kg per assembly

Available Models and Technical Specifications

Individual Model Specifications

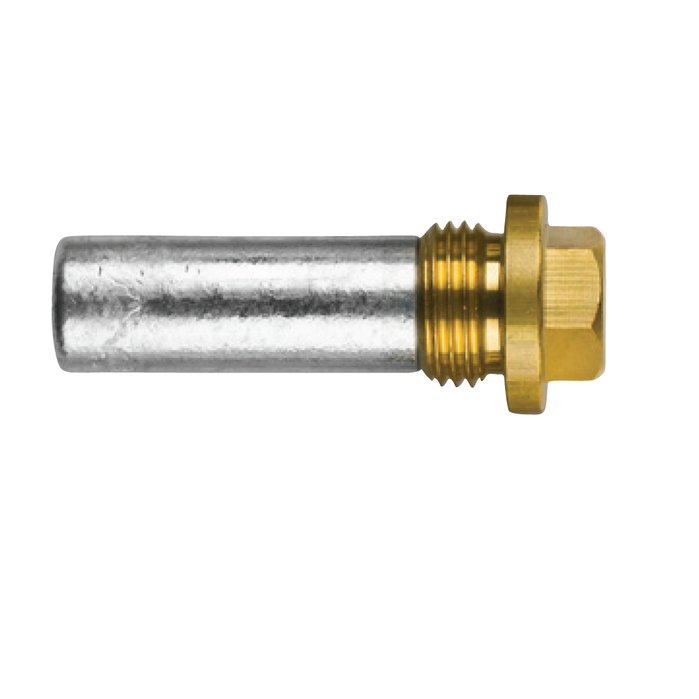

Tecnoseal 02200T – Scania Zinc Pencil Anode Ø17x45 mm with 1/2" BSPP Brass Plug

The Tecnoseal 02200T features a cylindrical zinc pencil anode measuring 17 mm (0.67 in) in diameter and 45 mm (1.77 in) in length. It is supplied with a brass mounting plug featuring a 1/2" GAS (BSPP) parallel external thread and a 17 mm (0.67 in) head dimension.

The assembly uses an M12x1 connection between the zinc rod and brass plug, corresponding to the Tecnoseal 02200 zinc anode and 02200TP brass plug. Weighing 0.13 kg (0.29 lbs), it uses the 4T pencil configuration and is supplied as a complete replacement assembly.

• Product Code: 02200T
• Anode Material: Zinc
• Plug Material: Brass
• Diameter (Ø): 17 mm (0.67 in)
• Zinc Rod Length (l): 45 mm (1.77 in)
• External Plug Thread (a): 1/2" GAS (BSPP)
• Internal Anode Connection: M12x1
• Plug Head Dimension (c): 17 mm (0.67 in)
• Weight: 0.13 kg (0.29 lbs)
• Pencil Type: 4T
• EAN: 8052744987583
• Supply: Complete with brass plug

Tecnoseal 02201T – Scania Zinc Pencil Anode Ø17x45 mm with 1/2" BSPP Brass Plug

The Tecnoseal 02201T combines a 17 mm (0.67 in) diameter, 45 mm (1.77 in) long zinc pencil anode with a brass mounting plug featuring a 1/2" GAS (BSPP) parallel external thread. The plug head measures 17 mm (0.67 in).

Unlike the 02200T version, the 02201T uses an M6 internal connection for the zinc element, corresponding to the Tecnoseal 02201 anode and 02201TP brass plug. The complete assembly weighs 0.13 kg (0.29 lbs), uses the 4T configuration and corresponds to Scania original part number 1331818.

• Product Code: 02201T
• Original Scania Part Number: 1331818
• Anode Material: Zinc
• Plug Material: Brass
• Diameter (Ø): 17 mm (0.67 in)
• Zinc Rod Length (l): 45 mm (1.77 in)
• External Plug Thread (a): 1/2" GAS (BSPP)
• Internal Anode Connection: M6
• Plug Head Dimension (c): 17 mm (0.67 in)
• Weight: 0.13 kg (0.29 lbs)
• Pencil Type: 4T
• EAN: 8052744987590
• Supply: Complete with brass plug

Component Configuration

Each Tecnoseal Scania assembly combines a corresponding zinc pencil anode and brass mounting plug:

Application and Compatibility

These Tecnoseal zinc pencil anodes are listed for compatible Scania marine engine cooling system applications. Both models share the same zinc rod dimensions and external brass plug thread but have different internal anode connections.

• Scania marine engine cooling systems
• Compatible marine engine heat exchangers
• Replacement of complete sacrificial zinc pencil anode assemblies
• Cooling system fittings with a matching 1/2" GAS (BSPP) parallel threaded connection

Model Selection

Select the appropriate Tecnoseal Scania assembly according to the original anode specification and the connection between the zinc rod and brass mounting plug.

Both models measure 17 x 45 mm and use 1/2" BSPP external mounting threads. The 02200T uses an M12x1 internal anode connection, while the 02201T features an M6 connection and corresponds to Scania original part number 1331818.

The 1/2" GAS (BSPP) thread is parallel and should not be confused with a tapered BSPT connection. Confirm the original assembly and mounting requirements before ordering.

Supply: One zinc pencil anode complete with brass mounting plug.
