Tecnoseal Scania Brass Plugs 1/2" BSPP for Pencil Anodes M12x1 & M6

Name: Tecnoseal Scania Brass Plugs 1/2" BSPP for Pencil Anodes M12x1 & M6
SKU: Tecnoseal 02200tp

ID 1406017

$ 38.97

1-2 weeks delivery time

Size:

1/2 BSPP

Item:

M6
M12x1

Tecnoseal Scania brass mounting plugs are designed for compatible marine engine cooling systems using replaceable zinc pencil anodes. The range includes 02200TP with an M12x1 internal connection for Tecnoseal 02200 and 02201TP with an M6 internal connection for Tecnoseal 02201. Both versions feature a 1/2-inch GAS (BSPP) parallel external mounting thread, a 17 mm (0.67 in) head dimension and the Tecnoseal 4TP plug configuration. The 02200TP weighs 0.05 kg (0.11 lbs), while the 02201TP weighs 0.06 kg (0.13 lbs). Both models are manufactured from brass and supplied individually without zinc anodes.

Description
Ask a Question

Tecnoseal Scania Brass Plugs 1/2" BSPP for Pencil Anodes – M12x1 & M6

Tecnoseal Scania brass mounting plugs are replacement components designed for compatible marine engine cooling systems and heat exchangers using sacrificial zinc pencil anodes. Each plug provides the threaded mounting connection between the engine cooling system and a replaceable zinc anode.

The range includes two models, Tecnoseal 02200TP and 02201TP, both featuring a 1/2" GAS (BSPP) parallel external mounting thread and a 17 mm (0.67 in) head dimension. Their brass construction allows the mounting plugs to be used with the corresponding replaceable zinc elements.

The main difference between the two versions is the internal connection thread. The Tecnoseal 02200TP has an M12x1 connection for the 02200 zinc pencil anode, while the 02201TP features an M6 connection for the 02201 zinc pencil anode.

Both plugs use the Tecnoseal 4TP configuration and are supplied individually without zinc anodes. The 02200TP weighs 0.05 kg (0.11 lbs), while the 02201TP weighs 0.06 kg (0.13 lbs).

Key Features

Manufacturer: Tecnoseal
Compatible Brand: Scania
Product Type: Brass mounting plug for pencil anode
Material: Brass
Configuration: Brass Plug Only
Available Models: 02200TP, 02201TP
External Mounting Thread: 1/2" GAS (BSPP)
Internal Connection Threads: M12x1 and M6
Plug Head Dimension: 17 mm
Brass Plug Type: 4TP
Weight Range: 0.05–0.06 kg

Available Models and Technical Specifications

Tecnoseal Code	External Thread (a)	Internal Thread (b)	Head (c)	Weight	Compatible Anode
02200TP	1/2" BSPP	M12x1	17 mm	0.05 kg / 0.11 lbs	02200
02201TP	1/2" BSPP	M6	17 mm	0.06 kg / 0.13 lbs	02201

Individual Model Specifications

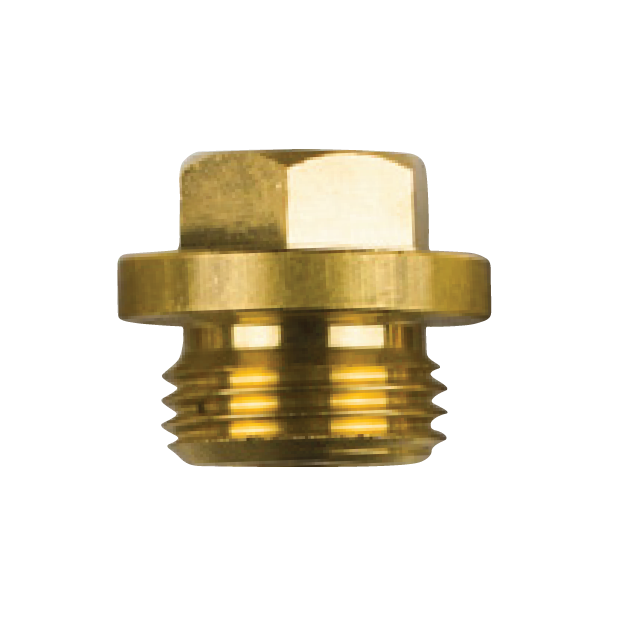

Tecnoseal 02200TP – Scania Brass Plug 1/2" BSPP with M12x1 Internal Thread

The Tecnoseal 02200TP is a brass mounting plug designed for the Tecnoseal 02200 zinc pencil anode. It features a 1/2" GAS (BSPP) parallel external mounting thread and an M12x1 internal connection for attaching the corresponding sacrificial zinc element.

The plug has a 17 mm (0.67 in) head dimension and weighs 0.05 kg (0.11 lbs). It uses the Tecnoseal 4TP configuration and is supplied as an individual brass component without the zinc anode.

Product Code: 02200TP
Material: Brass
External Mounting Thread (a): 1/2" GAS (BSPP)
Internal Connection Thread (b): M12x1
Head Dimension (c): 17 mm (0.67 in)
Weight: 0.05 kg (0.11 lbs)
Brass Plug Type: 4TP
Compatible Anode: Tecnoseal 02200
EAN: 8033837067658
Supply: Brass plug only

Tecnoseal 02201TP – Scania Brass Plug 1/2" BSPP with M6 Internal Thread

The Tecnoseal 02201TP is a brass mounting plug intended for the Tecnoseal 02201 zinc pencil anode. Like the 02200TP, it features a 1/2" GAS (BSPP) parallel external mounting thread, but uses an M6 internal connection for the corresponding zinc element.

The plug head measures 17 mm (0.67 in), and the component weighs 0.06 kg (0.13 lbs). It uses the 4TP configuration and is supplied separately without a sacrificial zinc anode.

Product Code: 02201TP
Material: Brass
External Mounting Thread (a): 1/2" GAS (BSPP)
Internal Connection Thread (b): M6
Head Dimension (c): 17 mm (0.67 in)
Weight: 0.06 kg (0.13 lbs)
Brass Plug Type: 4TP
Compatible Anode: Tecnoseal 02201
EAN: 8033837067672
Supply: Brass plug only

Compatible Zinc Pencil Anodes

Each brass plug is designed for a corresponding Tecnoseal Scania zinc pencil anode:

Brass Plug	Compatible Zinc Anode	Anode Dimensions	Connection
02200TP	02200	Ø17 x 45 mm	M12x1
02201TP	02201	Ø17 x 45 mm	M6

Application and Compatibility

Scania marine engine cooling systems
Compatible marine engine heat exchangers
Replacement brass mounting plugs for sacrificial zinc pencil anodes
Cooling system fittings requiring a 1/2" GAS (BSPP) parallel external mounting thread

Model Selection and Installation

Select the correct Tecnoseal Scania brass plug according to the internal mounting thread required by the existing zinc pencil anode. The 02200TP has an M12x1 internal thread, while the 02201TP uses an M6 connection.

Both models share the same 1/2" GAS (BSPP) external mounting thread and 17 mm head dimension, but their internal anode connections differ. They should not be considered interchangeable unless the corresponding zinc anode and mounting specifications match.

Before ordering, confirm the existing plug's external and internal thread specifications. The 1/2" BSPP thread is parallel and must not be confused with a tapered BSPT connection.

Supply: One brass mounting plug without zinc pencil anode.
