Tecnoseal Sen-Dure Zinc Pencil Anodes with Brass Plugs

Name: Tecnoseal Sen-Dure Zinc Pencil Anodes with Brass Plugs
SKU: Tecnoseal tec-sd1

ID 1406023

$ 26.53

1-2 weeks delivery time

Size:

16x25
9.5x19
12.7x31.8
6.35x51
9.5x44
10x31.8
9.5x12.7
9.5x63
12.7x25
16x41.3

Item:

3/8 NPT
1/8 NPT
1/4 NPT
1/2 NPT

Tecnoseal Sen-Dure zinc pencil anodes are supplied complete with brass mounting plugs for compatible marine cooling systems and heat exchangers. The range includes ten models, TEC-SD1 through TEC-SD10, with zinc rod diameters from 6.35 to 16 mm and lengths from 12.7 to 63 mm. Depending on the model, the brass plugs feature 1/8-inch, 1/4-inch, 3/8-inch or 1/2-inch NPT mounting threads and head dimensions from 11 to 25 mm. Each assembly uses the Tecnoseal 2T configuration and weighs between 0.03 and 0.13 kg. The models are supplied individually as complete zinc anode and brass plug assemblies.

Description
Ask a Question

Tecnoseal Sen-Dure Zinc Pencil Anodes with Brass Plugs – 1/8", 1/4", 3/8" & 1/2" NPT

Tecnoseal Sen-Dure zinc pencil anodes are complete sacrificial anode assemblies designed for compatible marine cooling systems and heat exchangers. Each model combines a cylindrical zinc anode with a brass mounting plug, helping protect metallic components exposed to cooling water against galvanic corrosion.

The range includes ten models, from TEC-SD1 to TEC-SD10, offering different zinc rod diameters, lengths and threaded mounting connections. The smallest zinc rod measures 6.35 mm in diameter, while the largest versions have a 16 mm diameter. Rod lengths range from 12.7 to 63 mm, allowing selection according to the dimensions of the original component.

The brass plugs feature NPT tapered mounting threads in four sizes: 1/8", 1/4", 3/8" and 1/2". Their head dimensions range from 11 to 25 mm. Each assembly uses the Tecnoseal 2T pencil configuration and is supplied complete with its brass mounting plug.

The individual assemblies weigh between 0.03 and 0.13 kg. Selecting the correct version requires checking the original zinc rod dimensions, mounting thread and brass plug head size.

Key Features

Manufacturer: Tecnoseal
Compatible Brand: Sen-Dure
Product Type: Sacrificial pencil anode with brass plug
Anode Material: Zinc
Plug Material: Brass
Configuration: Complete with Brass Plug
Available Models: TEC-SD1 to TEC-SD10
Zinc Rod Diameters: 6.35–16 mm
Zinc Rod Lengths: 12.7–63 mm
External Plug Threads: 1/8", 1/4", 3/8" and 1/2" NPT
Plug Head Dimensions: 11–25 mm
Pencil Type: 2T
Weight Range: 0.03–0.13 kg

Available Models and Technical Specifications

Tecnoseal Code	Diameter (Ø)	Length (l)	Thread (a)	Head (c)	Weight
TEC-SD1	6.35 mm	51 mm	1/8" NPT	11 mm	0.03 kg / 0.07 lbs
TEC-SD2	9.5 mm	44 mm	1/4" NPT	12.7 mm	0.04 kg / 0.09 lbs
TEC-SD3	9.5 mm	19 mm	1/4" NPT	12.7 mm	0.03 kg / 0.07 lbs
TEC-SD4	10 mm	31.8 mm	1/4" NPT	14 mm	0.03 kg / 0.07 lbs
TEC-SD5	9.5 mm	12.7 mm	1/4" NPT	14 mm	0.03 kg / 0.07 lbs
TEC-SD6	9.5 mm	63 mm	1/4" NPT	12.7 mm	0.05 kg / 0.11 lbs
TEC-SD7	12.7 mm	25 mm	3/8" NPT	17.5 mm	0.07 kg / 0.15 lbs
TEC-SD8	12.7 mm	31.8 mm	3/8" NPT	19 mm	0.07 kg / 0.15 lbs
TEC-SD9	16 mm	41.3 mm	1/2" NPT	25 mm	0.13 kg / 0.29 lbs
TEC-SD10	16 mm	25 mm	1/2" NPT	22 mm	0.12 kg / 0.26 lbs

Individual Model Specifications

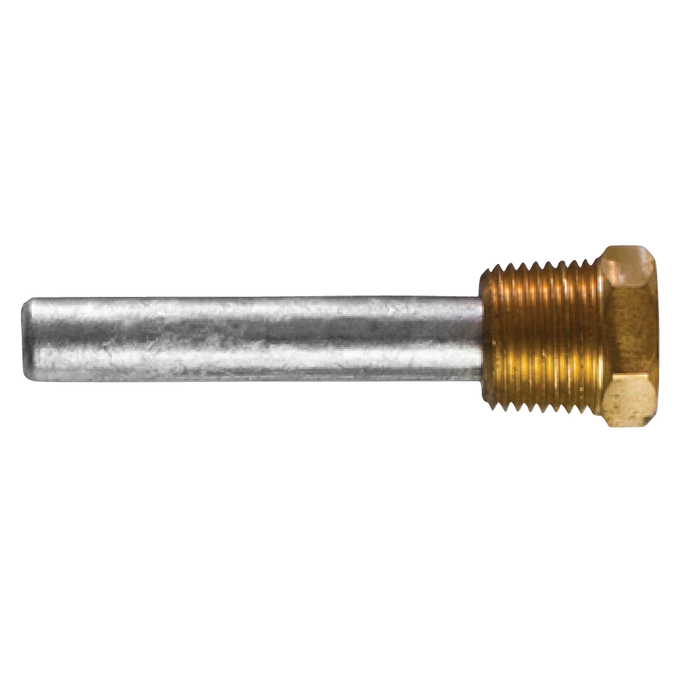

Tecnoseal TEC-SD1 – Sen-Dure Zinc Pencil Anode Ø6.35x51 mm with 1/8" NPT Brass Plug

The Tecnoseal TEC-SD1 features a slender zinc rod measuring 6.35 mm (1/4 in) in diameter and 51 mm (2.01 in) in length. Its brass plug uses a 1/8" NPT mounting thread and has an 11 mm (0.43 in) head dimension. The complete assembly weighs 0.03 kg (0.07 lbs).

Product Code: TEC-SD1
Original Part Number: 357-7066
Equivalent Reference: TEC-E00
Diameter (Ø): 6.35 mm
Length (l): 51 mm
Mounting Thread (a): 1/8" NPT
Head Dimension (c): 11 mm
Weight: 0.03 kg (0.07 lbs)
EAN: 8058774838840

Tecnoseal TEC-SD2 – Sen-Dure Zinc Pencil Anode Ø9.5x44 mm with 1/4" NPT Brass Plug

The Tecnoseal TEC-SD2 combines a 9.5 mm (0.37 in) diameter zinc rod with a body length of 44 mm (1.73 in). Its brass mounting plug features a 1/4" NPT thread and a 12.7 mm (0.50 in) head dimension. The assembly weighs 0.04 kg (0.09 lbs), making it suitable for compatible Sen-Dure installations requiring these dimensions.

Product Code: TEC-SD2
Original Part Number: 292-1
Equivalent Reference: TEC-E0
Diameter (Ø): 9.5 mm
Length (l): 44 mm
Mounting Thread (a): 1/4" NPT
Head Dimension (c): 12.7 mm
Weight: 0.04 kg (0.09 lbs)
EAN: 8058774838857

Tecnoseal TEC-SD3 – Sen-Dure Zinc Pencil Anode Ø9.5x19 mm with 1/4" NPT Brass Plug

The Tecnoseal TEC-SD3 is a compact zinc pencil anode measuring 9.5 mm (0.37 in) in diameter and 19 mm (0.75 in) in length. Its brass plug features a 1/4" NPT thread and a 12.7 mm (0.50 in) head dimension. The complete assembly weighs 0.03 kg (0.07 lbs).

Product Code: TEC-SD3
Original Part Number: 292-2
Equivalent Reference: TEC-E0B
Diameter (Ø): 9.5 mm
Length (l): 19 mm
Mounting Thread (a): 1/4" NPT
Head Dimension (c): 12.7 mm
Weight: 0.03 kg (0.07 lbs)
EAN: 8058774838864

Tecnoseal TEC-SD4 – Sen-Dure Zinc Pencil Anode Ø10x31.8 mm with 1/4" NPT Brass Plug

The Tecnoseal TEC-SD4 features a cylindrical zinc rod measuring 10 mm (0.39 in) in diameter and 31.8 mm (1.25 in) in length. Its brass mounting plug uses a 1/4" NPT tapered thread and has a 14 mm (0.55 in) head dimension. The assembly weighs 0.03 kg (0.07 lbs).

Product Code: TEC-SD4
Original Part Number: 292-3
Equivalent Tecnoseal Reference: 01092
Diameter (Ø): 10 mm
Length (l): 31.8 mm
Mounting Thread (a): 1/4" NPT
Head Dimension (c): 14 mm
Weight: 0.03 kg (0.07 lbs)
EAN: 8058774838871

Tecnoseal TEC-SD5 – Sen-Dure Zinc Pencil Anode Ø9.5x12.7 mm with 1/4" NPT Brass Plug

The Tecnoseal TEC-SD5 is the shortest pencil anode in this Sen-Dure selection, featuring a 9.5 mm (0.37 in) diameter zinc rod measuring 12.7 mm (0.50 in) in length. Its brass mounting plug has a 1/4" NPT thread and a 14 mm (0.55 in) head dimension. The complete assembly weighs 0.03 kg (0.07 lbs).

Product Code: TEC-SD5
Original Part Number: 292-4
Diameter (Ø): 9.5 mm
Length (l): 12.7 mm
Mounting Thread (a): 1/4" NPT
Head Dimension (c): 14 mm
Weight: 0.03 kg (0.07 lbs)
EAN: 8058774838888

Tecnoseal TEC-SD6 – Sen-Dure Zinc Pencil Anode Ø9.5x63 mm with 1/4" NPT Brass Plug

The Tecnoseal TEC-SD6 features a longer zinc rod measuring 9.5 mm (0.37 in) in diameter and 63 mm in length. Its brass mounting plug uses a 1/4" NPT thread with a 12.7 mm (0.50 in) head dimension. Weighing 0.05 kg (0.11 lbs), this model provides a longer sacrificial zinc element for compatible Sen-Dure cooling system installations.

Product Code: TEC-SD6
Original Part Number: 292-5
Equivalent Reference: TEC-E0A
Diameter (Ø): 9.5 mm
Length (l): 63 mm
Mounting Thread (a): 1/4" NPT
Head Dimension (c): 12.7 mm
Weight: 0.05 kg (0.11 lbs)
EAN: 8058774838895

Tecnoseal TEC-SD7 – Sen-Dure Zinc Pencil Anode Ø12.7x25 mm with 3/8" NPT Brass Plug

The Tecnoseal TEC-SD7 combines a 12.7 mm (0.50 in) diameter zinc rod with a 25 mm (0.98 in) body length. Its brass mounting plug features a 3/8" NPT thread and a 17.5 mm (0.69 in) head dimension. The complete assembly weighs 0.07 kg (0.15 lbs).

Product Code: TEC-SD7
Original Part Number: 288-2
Equivalent Reference: TEC-E1G
Diameter (Ø): 12.7 mm
Length (l): 25 mm
Mounting Thread (a): 3/8" NPT
Head Dimension (c): 17.5 mm
Weight: 0.07 kg (0.15 lbs)
EAN: 8058774838901

Tecnoseal TEC-SD8 – Sen-Dure Zinc Pencil Anode Ø12.7x31.8 mm with 3/8" NPT Brass Plug

The Tecnoseal TEC-SD8 features a 12.7 mm (0.50 in) diameter zinc rod measuring 31.8 mm (1.25 in) in length. Its brass plug uses a 3/8" NPT mounting thread and has a 19 mm (0.75 in) head dimension. The assembly weighs 0.07 kg (0.15 lbs), offering a longer zinc body than the TEC-SD7 while retaining the same external thread size.

Product Code: TEC-SD8
Original Part Number: 288-5
Equivalent Reference: TEC-E1F
Diameter (Ø): 12.7 mm
Length (l): 31.8 mm
Mounting Thread (a): 3/8" NPT
Head Dimension (c): 19 mm
Weight: 0.07 kg (0.15 lbs)
EAN: 8058774838918

Tecnoseal TEC-SD9 – Sen-Dure Zinc Pencil Anode Ø16x41.3 mm with 1/2" NPT Brass Plug

The Tecnoseal TEC-SD9 features a 16 mm (0.63 in) diameter zinc rod measuring 41.3 mm (1.63 in) in length. Its brass mounting plug uses a 1/2" NPT tapered thread and has a 25 mm (0.98 in) head dimension. Weighing 0.13 kg (0.29 lbs), the TEC-SD9 is the heaviest assembly in this range.

Product Code: TEC-SD9
Original Part Number: 281-1
Diameter (Ø): 16 mm
Length (l): 41.3 mm
Mounting Thread (a): 1/2" NPT
Head Dimension (c): 25 mm
Weight: 0.13 kg (0.29 lbs)
EAN: 8058774838925

Tecnoseal TEC-SD10 – Sen-Dure Zinc Pencil Anode Ø16x25 mm with 1/2" NPT Brass Plug

The Tecnoseal TEC-SD10 features a cylindrical zinc body measuring 16 mm (0.63 in) in diameter and 25 mm (0.98 in) in length. Its brass mounting plug uses a 1/2" NPT thread with a 22 mm (0.87 in) head dimension. The complete assembly weighs 0.12 kg (0.26 lbs).

Compared with the TEC-SD9, the TEC-SD10 has a shorter zinc rod and a smaller brass plug head while retaining the same 1/2" NPT mounting thread.

Product Code: TEC-SD10
Original Part Number: 281-2
Equivalent Reference: TEC-E2A
Diameter (Ø): 16 mm
Length (l): 25 mm
Mounting Thread (a): 1/2" NPT
Head Dimension (c): 22 mm
Weight: 0.12 kg (0.26 lbs)
EAN: 8058774838932

Application and Compatibility

These Tecnoseal zinc pencil anodes are listed for Sen-Dure marine applications. They are intended for compatible cooling-water installations requiring sacrificial zinc elements mounted through threaded brass plugs.

Sen-Dure marine cooling system applications
Compatible marine heat exchangers
Replacement of complete zinc pencil anode assemblies
Cooling system fittings with matching NPT threaded connections

Model Selection

Select the appropriate Tecnoseal Sen-Dure anode by comparing the original component's zinc rod diameter, length, mounting thread and brass plug head dimension.

The TEC-SD1 uses a 1/8" NPT thread, while TEC-SD2 through TEC-SD6 feature 1/4" NPT connections. The TEC-SD7 and TEC-SD8 use 3/8" NPT threads, and the larger TEC-SD9 and TEC-SD10 have 1/2" NPT mounting connections.

Models sharing the same thread size may have different zinc rod dimensions and brass plug head sizes. They should not be considered interchangeable without verifying the existing installation.

NPT threads are tapered and must not be confused with parallel NPS or BSPP threads. Confirm both the thread type and size before ordering.

Supply: Each model is supplied individually as one zinc sacrificial pencil anode complete with brass mounting plug.
