Tecnoseal Volkswagen Marine Zinc Pencil Anodes M8 & M10

Tecnoseal Volkswagen Marine Zinc Pencil Anodes – M8 & M10

Tecnoseal Volkswagen Marine (VM) zinc pencil anodes are sacrificial corrosion protection components designed for compatible marine engine cooling systems and heat exchangers. These replaceable zinc elements help protect metallic cooling system components against galvanic corrosion when exposed to cooling water.

The range includes three models, Tecnoseal 02060, 02061 and 02064, with different body dimensions and mounting configurations. The 02060 and 02061 feature cylindrical zinc bodies with a single M8 threaded extension, while the 02064 uses a double-ended arrangement with M8 and M10 threaded connections.

The Tecnoseal 02060 measures 14 mm in diameter and 40 mm in body length. The 02061 has the same 14 mm diameter but a shorter 20 mm body. Both use the T1 pencil configuration and feature a 10 mm threaded extension.

The Tecnoseal 02064 features a 14.5 mm diameter zinc body measuring 20 mm in length, with a 36 mm dimension indicated as l1 in the manufacturer's drawing. It uses the T3 configuration with threaded connections extending from opposite sides of the zinc body.

All three models are supplied individually as zinc sacrificial anodes without brass mounting plugs.

Key Features

• Manufacturer: Tecnoseal
• Compatible Brand: Volkswagen Marine (VM)
• Product Type: Sacrificial pencil anode
• Material: Zinc
• Configuration: Anode Only
• Available Models: 02060, 02061 and 02064
• Body Diameters: 14 mm and 14.5 mm
• Body Lengths: 20 mm and 40 mm
• Mounting Threads: M8 and M10
• Pencil Types: T1 and T3
• Weight Range: 0.03–0.05 kg

Available Models and Technical Specifications

Individual Model Specifications

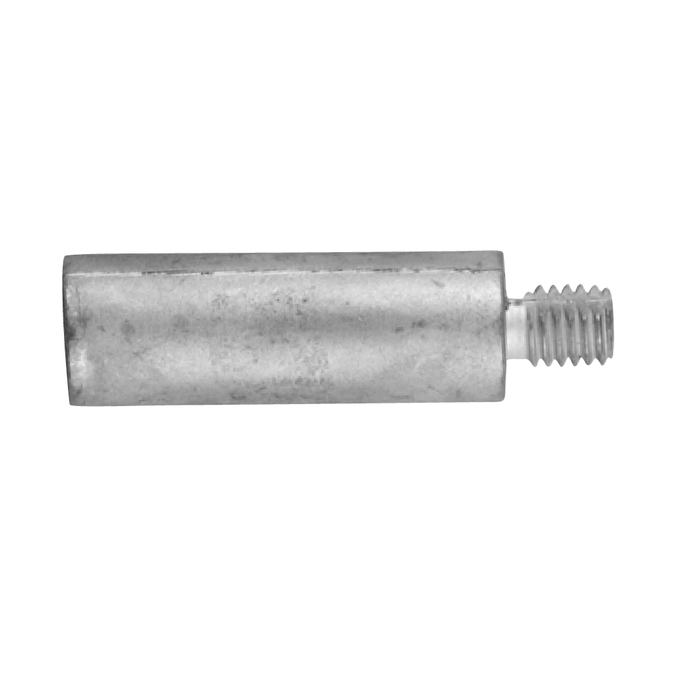

Tecnoseal 02060 – Volkswagen Marine Zinc Pencil Anode Ø14x40 mm M8

The Tecnoseal 02060 is a zinc pencil anode designed for compatible Volkswagen Marine engine applications. It features a cylindrical zinc body measuring 14 mm (0.55 in) in diameter and 40 mm (1.57 in) in length, together with an M8 threaded mounting extension measuring 10 mm (0.39 in).

The anode weighs 0.05 kg (0.11 lbs) and uses the Tecnoseal T1 configuration. It corresponds to Volkswagen Marine original part number 11232001G and is also listed as equivalent to Tecnoseal 02017.

• Product Code: 02060
• Original Part Number: 11232001G
• Equivalent Reference: Tecnoseal 02017
• Material: Zinc
• Diameter (Ø): 14 mm / 0.55 in
• Body Length (l): 40 mm / 1.57 in
• Threaded Extension (l1): 10 mm / 0.39 in
• Thread (b): M8
• Weight: 0.05 kg / 0.11 lbs
• Pencil Type: T1
• EAN: 8033837067467
• Supply: Zinc anode only

Tecnoseal 02061 – Volkswagen Marine Zinc Pencil Anode Ø14x20 mm M8

The Tecnoseal 02061 is a shorter zinc pencil anode for compatible Volkswagen Marine cooling system installations. It has a cylindrical zinc body measuring 14 mm (0.55 in) in diameter and 20 mm (0.79 in) in length, with a 10 mm (0.39 in) M8 threaded extension.

This model uses the Tecnoseal T1 configuration and weighs 0.03 kg (0.07 lbs). It corresponds to Volkswagen Marine original part number 3123200 and is supplied without a brass mounting plug.

• Product Code: 02061
• Original Part Number: 3123200
• Material: Zinc
• Diameter (Ø): 14 mm / 0.55 in
• Body Length (l): 20 mm / 0.79 in
• Threaded Extension (l1): 10 mm / 0.39 in
• Thread (b): M8
• Weight: 0.03 kg / 0.07 lbs
• Pencil Type: T1
• EAN: 8033837067481
• Supply: Zinc anode only

Tecnoseal 02064 – Volkswagen Marine Zinc Pencil Anode Ø14.5x20 mm M8/M10

The Tecnoseal 02064 features a double-ended mounting arrangement, distinguishing it from the standard T1 pencil anodes. Its cylindrical zinc body measures 14.5 mm (0.57 in) in diameter and 20 mm (0.79 in) in length, with a 36 mm (1.42 in) dimension identified as l1 in the manufacturer catalogue.

The anode has two threaded connections, M8 and M10, located on opposite sides of the zinc body. This T3 configuration is intended for compatible Volkswagen Marine applications requiring a double-ended threaded connection.

Weighing 0.03 kg (0.07 lbs), the Tecnoseal 02064 is supplied as a zinc anode only without a separate brass mounting plug.

• Product Code: 02064
• Material: Zinc
• Diameter (Ø): 14.5 mm / 0.57 in
• Body Length (l): 20 mm / 0.79 in
• Dimension (l1): 36 mm / 1.42 in
• Thread (b): M8
• Thread (m): M10
• Weight: 0.03 kg / 0.07 lbs
• Pencil Type: T3
• EAN: 8033837067504
• Supply: Zinc anode only

Application and Compatibility

These Tecnoseal zinc pencil anodes are listed for Volkswagen Marine (VM) applications. They are intended for compatible marine engine cooling system installations using replaceable sacrificial zinc elements.

• Volkswagen Marine engine cooling systems
• Compatible marine engine heat exchangers
• Replacement of sacrificial zinc pencil anodes
• Installations requiring M8 or M8/M10 threaded mounting connections

Model Selection

Select the appropriate Tecnoseal Volkswagen Marine anode according to the original part number, cylindrical zinc body dimensions and mounting configuration.

The 02060 and 02061 both use an M8 threaded extension and have a 14 mm body diameter. Their main difference is the zinc body length: 40 mm for 02060 and 20 mm for 02061.

The 02064 has a different T3 design, with a 14.5 mm diameter zinc body and M8/M10 threaded connections on opposite sides. It should not be considered interchangeable with the T1 models without confirming the original installation requirements.

Supply: One zinc sacrificial pencil anode per selected model, without brass mounting plug.
