Tecnoseal Westerbeke Zinc Pencil Anodes with Brass Plugs – 1/8", 1/4" & 3/8" NPT

Name: Tecnoseal Westerbeke Zinc Pencil Anodes with Brass Plugs – 1/8", 1/4" & 3/8" NPT
SKU: Tecnoseal tec-e00

ID 1406050

$ 16.45

1-2 weeks delivery time

Size:

6.35x51
9.5x44
12.7x51
12.7x38

Item:

3/8 NPT
1/8 NPT
1/4 NPT

Tecnoseal Westerbeke zinc pencil anodes are supplied complete with brass mounting plugs for compatible marine engine and generator cooling systems. The range includes TEC-E00 with a Ø6.35 x 51 mm zinc rod and 1/8-inch NPT thread, TEC-E1 with Ø12.7 x 51 mm and 3/8-inch NPT thread, TEC-E1E with Ø12.7 x 38 mm and 3/8-inch NPT thread, and TEC-E0 with Ø9.5 x 44 mm and 1/4-inch NPT thread. Brass plug head dimensions range from 11 to 17.5 mm, and the complete assemblies weigh between 0.03 and 0.07 kg. All four models use the Tecnoseal 2T configuration and are supplied individually with their brass mounting plugs. Select the correct version according to the original Westerbeke part number, zinc rod dimensions and mounting thread.

Description
Ask a Question

Tecnoseal Westerbeke Zinc Pencil Anodes with Brass Plugs – 1/8", 1/4" & 3/8" NPT

Tecnoseal Westerbeke zinc pencil anodes are sacrificial corrosion protection components supplied complete with brass mounting plugs. Designed for compatible Westerbeke marine cooling system applications, these replaceable zinc elements help protect metallic components exposed to cooling water against galvanic corrosion.

The range includes four models: TEC-E00, TEC-E1, TEC-E1E and TEC-E0. Their cylindrical zinc rods measure from 6.35 mm to 12.7 mm in diameter and from 38 mm to 51 mm in length. Depending on the model, the brass mounting plugs feature 1/8", 1/4" or 3/8" NPT tapered external threads.

The TEC-E00 has a 6.35 mm diameter zinc rod measuring 51 mm in length and a 1/8" NPT mounting thread. The TEC-E0 features a 9.5 mm diameter rod measuring 44 mm in length with a 1/4" NPT thread. The larger TEC-E1 and TEC-E1E models both have 12.7 mm diameter zinc rods and 3/8" NPT connections but differ in rod length: 51 mm and 38 mm respectively.

All four models use the Tecnoseal 2T configuration and are supplied individually as complete zinc anode and brass plug assemblies. Their weights range from 0.03 to 0.07 kg.

Key Features

Manufacturer: Tecnoseal
Compatible Brand: Westerbeke
Product Type: Sacrificial pencil anode with brass plug
Anode Material: Zinc
Plug Material: Brass
Configuration: Complete with Brass Plug
Available Models: TEC-E00, TEC-E1, TEC-E1E and TEC-E0
Zinc Rod Diameters: 6.35, 9.5 and 12.7 mm
Zinc Rod Lengths: 38, 44 and 51 mm
External Plug Threads: 1/8", 1/4" and 3/8" NPT
Plug Head Dimensions: 11, 12.7 and 17.5 mm
Pencil Type: 2T
Weight Range: 0.03–0.07 kg

Available Models and Technical Specifications

Tecnoseal Code	Diameter (Ø)	Length (l)	Thread (a)	Head (c)	Weight
TEC-E00	6.35 mm	51 mm	1/8" NPT	11 mm	0.03 kg / 0.07 lbs
TEC-E1	12.7 mm	51 mm	3/8" NPT	17.5 mm	0.07 kg / 0.15 lbs
TEC-E1E	12.7 mm	38 mm	3/8" NPT	17.5 mm	0.07 kg / 0.15 lbs
TEC-E0	9.5 mm	44 mm	1/4" NPT	12.7 mm	0.04 kg / 0.09 lbs

Individual Model Specifications

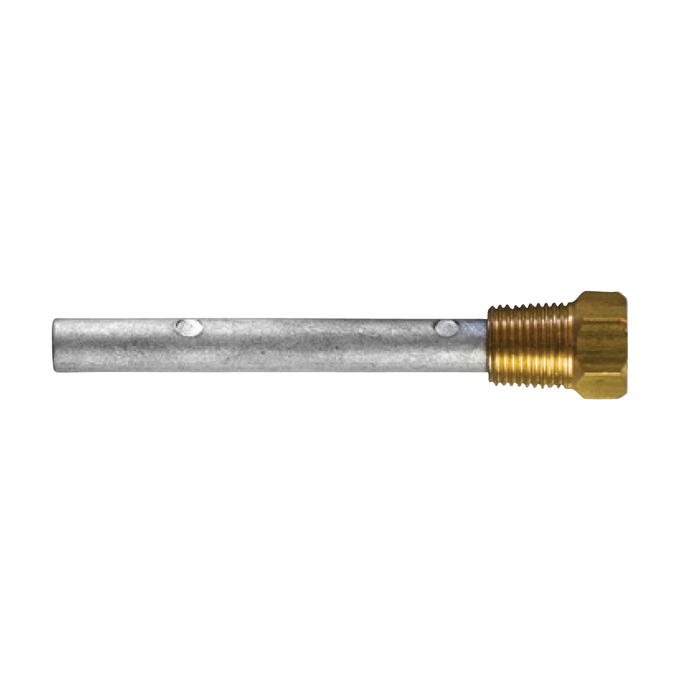

Tecnoseal TEC-E00 – Westerbeke Zinc Pencil Anode Ø6.35x51 mm with 1/8" NPT Brass Plug

The Tecnoseal TEC-E00 features a cylindrical zinc rod measuring 6.35 mm (1/4 in) in diameter and 51 mm (2.01 in) in length. Its brass mounting plug has a 1/8" NPT tapered external thread and an 11 mm (7/16 in) head dimension.

Weighing 0.03 kg (0.07 lbs), the assembly uses the Tecnoseal 2T configuration and corresponds to Westerbeke original part number 301069. It is also listed as equivalent to Tecnoseal TEC-SD1.

Product Code: TEC-E00
Original Westerbeke Part Number: 301069
Equivalent Reference: TEC-SD1
Diameter (Ø): 6.35 mm / 1/4 in
Length (l): 51 mm / 2.01 in
External Thread (a): 1/8" NPT
Plug Head (c): 11 mm / 7/16 in
Weight: 0.03 kg / 0.07 lbs
Pencil Type: 2T
EAN: 8059617819064
Supply: Complete with brass plug

Tecnoseal TEC-E1 – Westerbeke Zinc Pencil Anode Ø12.7x51 mm with 3/8" NPT Brass Plug

The Tecnoseal TEC-E1 combines a 12.7 mm (1/2 in) diameter zinc rod with a 51 mm (2.01 in) body length. It is supplied with a brass mounting plug featuring a 3/8" NPT thread and a 17.5 mm (11/16 in) head dimension.

The complete assembly weighs 0.07 kg (0.15 lbs), uses the Tecnoseal 2T pencil configuration and corresponds to Westerbeke original part number 36889.

Product Code: TEC-E1
Original Westerbeke Part Number: 36889
Diameter (Ø): 12.7 mm / 1/2 in
Length (l): 51 mm / 2.01 in
External Thread (a): 3/8" NPT
Plug Head (c): 17.5 mm / 11/16 in
Weight: 0.07 kg / 0.15 lbs
Pencil Type: 2T
EAN: 8059617819088
Supply: Complete with brass plug

Tecnoseal TEC-E1E – Westerbeke Zinc Pencil Anode Ø12.7x38 mm with 3/8" NPT Brass Plug

The Tecnoseal TEC-E1E features a 12.7 mm (1/2 in) diameter zinc rod measuring 38 mm (1.50 in) in length. Its brass plug uses a 3/8" NPT external mounting thread with a 17.5 mm (11/16 in) head dimension.

This model shares the diameter and mounting specifications of the TEC-E1 but features a shorter zinc element. It weighs 0.07 kg (0.15 lbs), uses the Tecnoseal 2T configuration and corresponds to Westerbeke original part number 301068.

Product Code: TEC-E1E
Original Westerbeke Part Number: 301068
Diameter (Ø): 12.7 mm / 1/2 in
Length (l): 38 mm / 1.50 in
External Thread (a): 3/8" NPT
Plug Head (c): 17.5 mm / 11/16 in
Weight: 0.07 kg / 0.15 lbs
Pencil Type: 2T
EAN: 8052744984261
Supply: Complete with brass plug

Tecnoseal TEC-E0 – Westerbeke Zinc Pencil Anode Ø9.5x44 mm with 1/4" NPT Brass Plug

The Tecnoseal TEC-E0 features a cylindrical zinc rod measuring 9.5 mm (3/8 in) in diameter and 44 mm (1.73 in) in length. Its brass mounting plug has a 1/4" NPT tapered external thread and a 12.7 mm (1/2 in) head dimension.

Weighing 0.04 kg (0.09 lbs), the assembly uses the Tecnoseal 2T configuration. It is listed with Westerbeke original part numbers 260085-5, 267928 and 11885, and is equivalent to Tecnoseal TEC-SD2.

Product Code: TEC-E0
Original Westerbeke Part Numbers: 260085-5, 267928, 11885
Equivalent Reference: TEC-SD2
Diameter (Ø): 9.5 mm / 3/8 in
Length (l): 44 mm / 1.73 in
External Thread (a): 1/4" NPT
Plug Head (c): 12.7 mm / 1/2 in
Weight: 0.04 kg / 0.09 lbs
Pencil Type: 2T
EAN: 8059617819071
Supply: Complete with brass plug

Original Part Numbers and Cross-References

Tecnoseal Code	Original Westerbeke Part Number	Equivalent Tecnoseal Reference
TEC-E00	301069	TEC-SD1
TEC-E1	36889	–
TEC-E1E	301068	–
TEC-E0	260085-5, 267928, 11885	TEC-SD2

Application and Compatibility

These Tecnoseal zinc pencil anodes are listed for Westerbeke marine applications and intended for compatible cooling system installations using replaceable sacrificial zinc elements with brass mounting plugs.

Compatible Westerbeke marine engine cooling systems
Marine generator cooling systems using matching anodes
Compatible heat exchangers
Replacement of complete zinc pencil anode assemblies
Installations requiring 1/8", 1/4" or 3/8" NPT threaded connections

Model Selection

Select the appropriate Tecnoseal Westerbeke pencil anode by matching the original part number, zinc rod diameter, body length and brass plug mounting thread.

The TEC-E00 features a 6.35 mm diameter zinc rod with a 1/8" NPT mounting thread. The TEC-E0 has a 9.5 mm diameter zinc rod with a 1/4" NPT connection. The TEC-E1 and TEC-E1E both use 12.7 mm diameter zinc rods and 3/8" NPT threads, but differ in body length: 51 mm and 38 mm respectively.

Models sharing the same threaded connection may have different zinc rod dimensions. Confirm the original component and available installation clearance before ordering.

NPT threads are tapered and must not be confused with parallel threaded connections such as BSPP.

Supply: One zinc sacrificial pencil anode complete with brass mounting plug.
