Tecnoseal Volkswagen Marine Brass Plugs M18x1.5 with M8 Thread for Pencil Anodes

ID 1406044

$ 30.57

1-2 weeks delivery time

Size:

M18x1.5

Item:

02060TP
02061TP

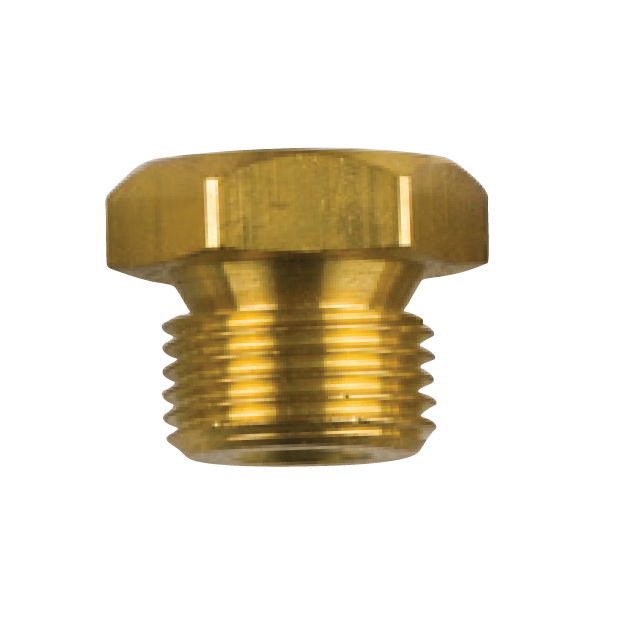

Tecnoseal Volkswagen Marine brass mounting plugs 02060TP and 02061TP are designed for replaceable zinc pencil anodes in compatible marine engine cooling systems. Both models feature an M18x1.5 external mounting thread, an M8 internal connection for the zinc anode and a 22 mm (0.87 in) plug head dimension. Each plug weighs 0.04 kg (0.09 lbs), uses the Tecnoseal 2TP configuration and is supplied individually without a sacrificial zinc element. The 02060TP is associated with Tecnoseal zinc anode 02060, while the 02061TP corresponds to anode 02061. Both plugs are listed as equivalent to Tecnoseal 02017TP and to each other.

Description
Ask a Question

Tecnoseal Volkswagen Marine Brass Plugs M18x1.5 with M8 Thread for Pencil Anodes

Tecnoseal Volkswagen Marine brass mounting plugs are replacement fittings designed for compatible marine engine cooling systems using sacrificial zinc pencil anodes. They provide the threaded connection between the engine cooling system and the replaceable zinc element.

The range includes Tecnoseal 02060TP and 02061TP. Both plugs feature an M18x1.5 external mounting thread and an M8 internal connection for attaching the zinc pencil anode. The plug head measures 22 mm (0.87 in), and each component weighs 0.04 kg (0.09 lbs).

Both models use the Tecnoseal 2TP brass plug configuration. The 02060TP is associated with the 02060 zinc anode, while the 02061TP corresponds to the 02061 zinc anode. According to the Tecnoseal catalogue, the two brass plugs are interchangeable and are also listed as equivalent to Tecnoseal 02017TP.

These components are manufactured from brass and supplied individually without sacrificial zinc elements.

Key Features
- Manufacturer: Tecnoseal
- Compatible Brand: Volkswagen Marine (VM)
- Product Type: Brass mounting plug for pencil anode
- Material: Brass
- Configuration: Brass Plug Only
- Available Models: 02060TP, 02061TP
- External Mounting Thread (a): M18x1.5
- Internal Anode Connection (b): M8
- Plug Head Dimension (c): 22 mm
- Brass Plug Type: 2TP
- Weight: 0.04 kg per plug
- Equivalent Reference: Tecnoseal 02017TP
Available Models and Technical Specifications

Tecnoseal Code External Thread (a) Internal Thread (b) Head (c) Weight Plug Type

02060TP M18x1.5 M8 22 mm 0.04 kg / 0.09 lbs 2TP

02061TP M18x1.5 M8 22 mm 0.04 kg / 0.09 lbs 2TP

Individual Model Specifications

Tecnoseal 02060TP – Volkswagen Marine Brass Plug M18x1.5 / M8

The Tecnoseal 02060TP is a brass mounting plug designed for compatible Volkswagen Marine cooling systems using the Tecnoseal 02060 zinc pencil anode. It features an M18x1.5 external thread for installation into the cooling system fitting and an M8 internal connection for attaching the zinc rod.

The plug head measures 22 mm (0.87 in), and the component weighs 0.04 kg (0.09 lbs). It uses the Tecnoseal 2TP configuration and is supplied separately without the zinc anode.
- Product Code: 02060TP
- Material: Brass
- External Mounting Thread (a): M18x1.5
- Internal Connection Thread (b): M8
- Head Dimension (c): 22 mm / 0.87 in
- Weight: 0.04 kg / 0.09 lbs
- Brass Plug Type: 2TP
- Associated Zinc Anode: Tecnoseal 02060
- Equivalent References: 02061TP, 02017TP
- EAN: 8033837067474
- Supply: Brass plug only
Tecnoseal 02061TP – Volkswagen Marine Brass Plug M18x1.5 / M8

The Tecnoseal 02061TP is a brass mounting plug intended for compatible Volkswagen Marine cooling systems using the Tecnoseal 02061 zinc pencil anode. It shares the same dimensions and threaded connections as the 02060TP, with an M18x1.5 external mounting thread, an M8 internal anode connection and a 22 mm (0.87 in) head dimension.

Weighing 0.04 kg (0.09 lbs), the plug uses the Tecnoseal 2TP configuration and is supplied individually without a zinc element. The manufacturer lists it as equivalent to both 02060TP and 02017TP.
- Product Code: 02061TP
- Material: Brass
- External Mounting Thread (a): M18x1.5
- Internal Connection Thread (b): M8
- Head Dimension (c): 22 mm / 0.87 in
- Weight: 0.04 kg / 0.09 lbs
- Brass Plug Type: 2TP
- Associated Zinc Anode: Tecnoseal 02061
- Equivalent References: 02060TP, 02017TP
- EAN: 8033837067498
- Supply: Brass plug only
Compatible Zinc Pencil Anodes

The brass plugs can be used with corresponding Tecnoseal Volkswagen Marine pencil anodes featuring M8 threaded connections.

Brass Plug Associated Zinc Anode Anode Dimensions

02060TP 02060 Ø14 x 40 mm

02061TP 02061 Ø14 x 20 mm

Equivalent Part Numbers

According to the Tecnoseal catalogue, the following brass plug references are equivalent:
- 02060TP
- 02061TP
- 02017TP
All three references share the same specified mounting connections for the listed applications. The 02060TP and 02061TP have identical external and internal threads, head dimensions and weights.

Model Selection and Installation

Both Tecnoseal models feature an M18x1.5 external mounting thread and M8 internal connection for the sacrificial zinc pencil anode. Since their dimensions are identical, either reference may be selected when the original application specifies an equivalent plug.

Before ordering, verify the external thread, internal anode connection and existing engine cooling system fitting.

Supply: One brass mounting plug without zinc pencil anode.
