Tecnoseal Volkswagen Marine Zinc Pencil Anodes Ø14 mm with M18x1.5 Brass Plug

ID 1406047

$ 53.37

1-2 weeks delivery time

Size:

14x40
14x20

Item:

80 g
70 g

Tecnoseal Volkswagen Marine zinc pencil anodes 02060T and 02061T are supplied complete with brass mounting plugs for compatible marine engine cooling systems and heat exchangers. Both versions have a 14 mm (0.55 in) diameter zinc rod and an M18x1.5 external mounting thread with a 22 mm (0.87 in) plug head. The 02060T features a 40 mm (1.57 in) long zinc rod and weighs 0.08 kg (0.18 lbs), while the shorter 02061T measures 20 mm (0.79 in) in length and weighs 0.07 kg (0.15 lbs). Both assemblies use the Tecnoseal 2T configuration. The 02061T is listed with Volkswagen Marine original part number 11232002 and additional BMW, Mercury and Yanmar cross-references.

Description
Ask a Question

Tecnoseal Volkswagen Marine Zinc Pencil Anodes Ø14 mm with M18x1.5 Brass Plug

Tecnoseal Volkswagen Marine zinc pencil anodes are sacrificial corrosion protection assemblies designed for compatible marine engine cooling systems and heat exchangers. Each assembly combines a replaceable cylindrical zinc element with a brass mounting plug, helping protect metallic components exposed to cooling water against galvanic corrosion.

The range includes two models, Tecnoseal 02060T and 02061T. Both have a zinc rod diameter of 14 mm (0.55 in) and feature brass mounting plugs with an M18x1.5 external thread and a 22 mm (0.87 in) head dimension.

The main difference between the models is the length of the zinc element. The Tecnoseal 02060T measures 40 mm (1.57 in) in length and weighs 0.08 kg (0.18 lbs), while the shorter 02061T measures 20 mm (0.79 in) and weighs 0.07 kg (0.15 lbs).

Both models use the Tecnoseal 2T pencil configuration and are supplied as complete zinc anode and brass mounting plug assemblies.

Key Features
- Manufacturer: Tecnoseal
- Compatible Brand: Volkswagen Marine (VM)
- Product Type: Sacrificial pencil anode with brass plug
- Anode Material: Zinc
- Plug Material: Brass
- Configuration: Complete with Brass Plug
- Available Models: 02060T and 02061T
- Zinc Rod Diameter: 14 mm
- Available Rod Lengths: 20 mm and 40 mm
- External Plug Thread: M18x1.5
- Plug Head Dimension: 22 mm
- Pencil Type: 2T
- Weight Range: 0.07–0.08 kg
Available Models and Technical Specifications

Tecnoseal Code Diameter (Ø) Length (l) External Thread (a) Head (c) Weight

02060T 14 mm 40 mm M18x1.5 22 mm 0.08 kg / 0.18 lbs

02061T 14 mm 20 mm M18x1.5 22 mm 0.07 kg / 0.15 lbs

Individual Model Specifications

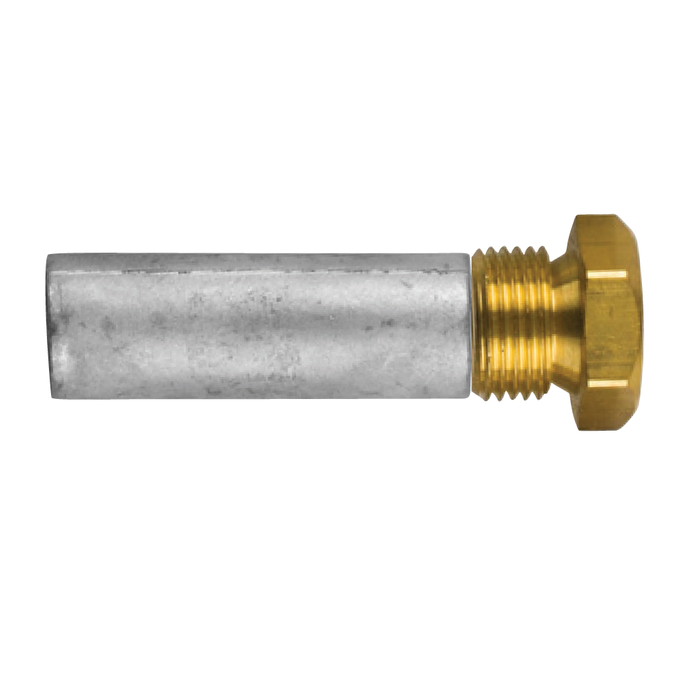

Tecnoseal 02060T – Volkswagen Marine Zinc Pencil Anode Ø14x40 mm with M18x1.5 Brass Plug

The Tecnoseal 02060T features a cylindrical zinc sacrificial anode measuring 14 mm (0.55 in) in diameter and 40 mm (1.57 in) in length. It is supplied complete with a brass mounting plug featuring an M18x1.5 external thread and a 22 mm (0.87 in) head dimension.

The complete assembly weighs 0.08 kg (0.18 lbs) and uses the Tecnoseal 2T pencil configuration. It provides a replacement zinc element and mounting plug for compatible Volkswagen Marine engine cooling systems.
- Product Code: 02060T
- Anode Material: Zinc
- Plug Material: Brass
- Diameter (Ø): 14 mm / 0.55 in
- Zinc Rod Length (l): 40 mm / 1.57 in
- External Plug Thread (a): M18x1.5
- Plug Head Dimension (c): 22 mm / 0.87 in
- Weight: 0.08 kg / 0.18 lbs
- Pencil Type: 2T
- EAN: 8052744987538
- Supply: Complete with brass plug
Tecnoseal 02061T – Volkswagen Marine Zinc Pencil Anode Ø14x20 mm with M18x1.5 Brass Plug

The Tecnoseal 02061T is the shorter version of the Volkswagen Marine zinc pencil anode assembly. It features a 14 mm (0.55 in) diameter zinc rod measuring 20 mm (0.79 in) in length, together with a brass mounting plug using an M18x1.5 external thread.

The plug head measures 22 mm (0.87 in), and the complete assembly weighs 0.07 kg (0.15 lbs). This model uses the Tecnoseal 2T configuration and is listed with original equipment and replacement references for Volkswagen Marine, BMW, Mercury and Yanmar applications.
- Product Code: 02061T
- Anode Material: Zinc
- Plug Material: Brass
- Diameter (Ø): 14 mm / 0.55 in
- Zinc Rod Length (l): 20 mm / 0.79 in
- External Plug Thread (a): M18x1.5
- Plug Head Dimension (c): 22 mm / 0.87 in
- Weight: 0.07 kg / 0.15 lbs
- Pencil Type: 2T
- EAN: 8052744987545
- Supply: Complete with brass plug
Original Part Numbers and Cross-References

The Tecnoseal 02061T is listed in the manufacturer catalogue with the following original part numbers and cross-references:

Manufacturer Reference Number

Volkswagen Marine 11232002

BMW 1165 1763 331

Mercury 8M0151541

Mercury 879194217

Mercury 811487

Yanmar 120650-13420

These references are associated with Tecnoseal 02061T. Confirm the original equipment part number and installation dimensions before ordering.

Application and Compatibility

The Tecnoseal 02060T and 02061T are intended for compatible marine engine cooling system installations requiring replaceable zinc pencil anodes with M18x1.5 threaded brass mounting plugs.
- Volkswagen Marine engine cooling systems
- Compatible marine engine heat exchangers
- Replacement of complete zinc pencil anode assemblies
- Applications with matching M18x1.5 threaded mounting fittings
The 02061T also carries BMW, Mercury and Yanmar cross-references listed in the manufacturer catalogue. Compatibility should be confirmed using the original part number and dimensions.

Model Selection

Both models have the same 14 mm zinc rod diameter, M18x1.5 external mounting thread and 22 mm brass plug head dimension. The difference is the zinc rod length.

Choose the Tecnoseal 02060T for installations requiring a 40 mm zinc element or the 02061T for installations requiring a shorter 20 mm element.

Before ordering, verify the existing mounting connection, available clearance and original part number. Although the external mounting specifications are identical, the different rod lengths must be matched to the intended application.

Supply: One zinc pencil anode complete with brass mounting plug.
