Tecnoseal Universal Zinc Pencil Anodes Ø14 mm with 1/2" BSPT Brass Plug

ID 1406037

$ 53.05

1-2 weeks delivery time

Size:

14x45
14x71

Item:

100 g
120 g

Tecnoseal universal zinc pencil anodes are supplied complete with brass mounting plugs for compatible marine engine cooling systems and heat exchangers. The range includes 02960T with a 14 mm diameter and 45 mm length, weighing 0.10 kg (0.22 lbs), and 02961T with the same 14 mm diameter and a longer 71 mm body, weighing 0.12 kg (0.26 lbs). Both models feature a 1/2-inch GAS (BSPT) tapered external mounting thread, a 13 mm (0.51 in) brass plug head dimension and the Tecnoseal 1T pencil configuration. The zinc elements provide sacrificial corrosion protection for metallic components exposed to cooling water. Each model is supplied individually as a complete zinc anode and brass plug assembly.

Description
Ask a Question

Tecnoseal Universal Zinc Pencil Anodes Ø14 mm with 1/2" BSPT Brass Plug

Tecnoseal universal zinc pencil anodes are complete sacrificial anode assemblies designed for compatible marine engine cooling systems and heat exchangers. Each assembly combines a cylindrical zinc element with a brass mounting plug, helping protect metallic components exposed to cooling water against galvanic corrosion.

The range includes two models, Tecnoseal 02960T and 02961T. Both have a zinc rod diameter of 14 mm (0.55 in), but differ in length. The 02960T measures 45 mm (1.77 in), while the 02961T features a longer 71 mm (2.80 in) zinc rod.

Both models are fitted with brass mounting plugs featuring a 1/2" GAS (BSPT) tapered external thread and a 13 mm (0.51 in) head dimension. They use the Tecnoseal 1T pencil configuration and are supplied complete with their brass plugs.

The shorter 02960T assembly weighs 0.10 kg (0.22 lbs), while the longer 02961T weighs 0.12 kg (0.26 lbs). These dimensions allow selection according to the available installation space and the specifications of the original anode.

Key Features
- Manufacturer: Tecnoseal
- Product Type: Universal sacrificial pencil anode
- Anode Material: Zinc
- Plug Material: Brass
- Configuration: Complete with Brass Plug
- Available Models: 02960T, 02961T
- Zinc Rod Diameter: 14 mm
- Available Rod Lengths: 45 mm and 71 mm
- External Mounting Thread: 1/2" GAS (BSPT)
- Plug Head Dimension: 13 mm
- Pencil Type: 1T
- Weight Range: 0.10–0.12 kg
- Application: Compatible marine cooling systems and heat exchangers
Available Models and Technical Specifications

Tecnoseal Code Diameter (Ø) Length (l) Thread (a) Head (c) Weight

02960T 14 mm 45 mm 1/2" BSPT 13 mm 0.10 kg / 0.22 lbs

02961T 14 mm 71 mm 1/2" BSPT 13 mm 0.12 kg / 0.26 lbs

Individual Model Specifications

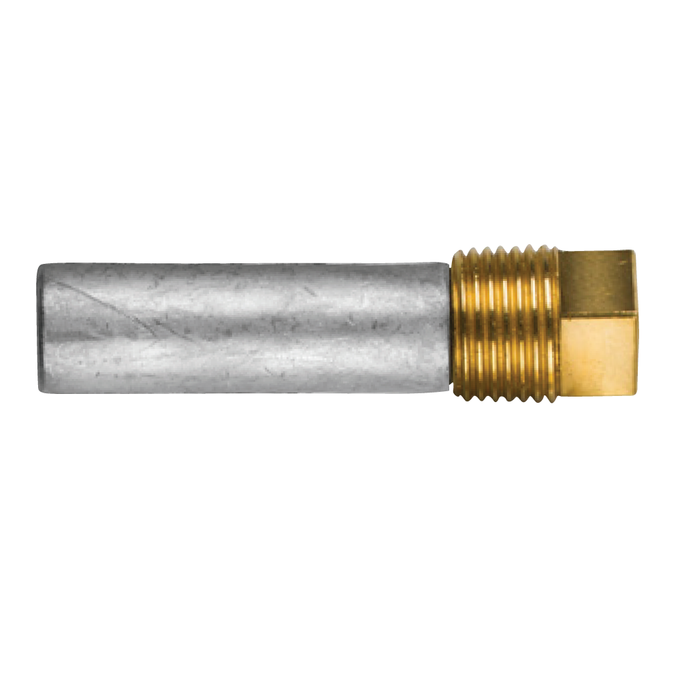

Tecnoseal 02960T – Universal Zinc Pencil Anode Ø14x45 mm with 1/2" BSPT Brass Plug

The Tecnoseal 02960T features a cylindrical zinc rod measuring 14 mm (0.55 in) in diameter and 45 mm (1.77 in) in length. It is supplied with a brass mounting plug featuring a 1/2" GAS (BSPT) tapered external thread and a 13 mm (0.51 in) head dimension.

The complete assembly weighs 0.10 kg (0.22 lbs) and uses the Tecnoseal 1T pencil configuration. Its shorter zinc body makes it suitable for compatible marine cooling system installations requiring a 45 mm sacrificial element.
- Product Code: 02960T
- Anode Material: Zinc
- Plug Material: Brass
- Diameter (Ø): 14 mm / 0.55 in
- Zinc Rod Length (l): 45 mm / 1.77 in
- External Plug Thread (a): 1/2" GAS (BSPT)
- Plug Head Dimension (c): 13 mm / 0.51 in
- Weight: 0.10 kg / 0.22 lbs
- Pencil Type: 1T
- EAN: 8052744987606
- Supply: Complete with brass plug
Tecnoseal 02961T – Universal Zinc Pencil Anode Ø14x71 mm with 1/2" BSPT Brass Plug

The Tecnoseal 02961T is a longer version of the universal zinc pencil anode, featuring a cylindrical zinc rod measuring 14 mm (0.55 in) in diameter and 71 mm (2.80 in) in length. Its brass mounting plug has a 1/2" GAS (BSPT) tapered external thread and a 13 mm (0.51 in) head dimension.

Weighing 0.12 kg (0.26 lbs), the 02961T provides a longer sacrificial zinc element than the 02960T while retaining the same diameter and brass plug mounting specifications. It uses the Tecnoseal 1T configuration and is supplied as a complete assembly.
- Product Code: 02961T
- Anode Material: Zinc
- Plug Material: Brass
- Diameter (Ø): 14 mm / 0.55 in
- Zinc Rod Length (l): 71 mm / 2.80 in
- External Plug Thread (a): 1/2" GAS (BSPT)
- Plug Head Dimension (c): 13 mm / 0.51 in
- Weight: 0.12 kg / 0.26 lbs
- Pencil Type: 1T
- EAN: 8052744987613
- Supply: Complete with brass plug
Application and Compatibility

These Tecnoseal universal zinc pencil anodes are intended for compatible marine cooling system applications requiring a complete sacrificial anode assembly with a 1/2" BSPT threaded brass mounting plug.
- Compatible marine engine cooling systems
- Marine heat exchangers with matching anode fittings
- Replacement of complete sacrificial zinc pencil anode assemblies
- Installations requiring a 1/2" GAS (BSPT) tapered mounting thread
Model Selection

Both Tecnoseal models feature a 14 mm diameter zinc rod and the same 1/2" BSPT brass mounting connection. The main difference is the length of the sacrificial zinc element.

Choose the Tecnoseal 02960T for installations requiring a 45 mm rod or the 02961T for installations requiring a 71 mm rod. Confirm that the selected length provides sufficient clearance within the cooling system or heat exchanger.

The 1/2" GAS (BSPT) connection is a tapered pipe thread and should not be confused with a 1/2" BSPP parallel thread. Verify the existing mounting connection and original anode dimensions before ordering.

Supply: One zinc sacrificial pencil anode complete with brass mounting plug.
