Tecnoseal Scania Zinc Pencil Anodes Ø17x45 mm M12x1 & M6

Tecnoseal Scania Zinc Pencil Anodes Ø17x45 mm – M12x1 & M6

Tecnoseal Scania zinc pencil anodes are sacrificial corrosion protection components designed for compatible Scania marine engine cooling systems and heat exchangers. Manufactured from zinc, these replaceable anodes help protect metallic components exposed to cooling water against galvanic corrosion.

The range includes two models, Tecnoseal 02200 and 02201, both featuring cylindrical zinc bodies measuring 17 mm (0.67 in) in diameter and 45 mm (1.77 in) in length. Each anode has a 10 mm (0.39 in) threaded mounting extension, allowing installation into a compatible existing mounting fitting.

The main difference between the models is the mounting thread. The Tecnoseal 02200 uses an M12x1 connection, while the 02201 features an M6 thread and corresponds to Scania original part number 1331818. Both models weigh 0.08 kg (0.18 lbs), use the T1 pencil configuration and are supplied without brass mounting plugs.

Key Features

• Manufacturer: Tecnoseal
• Compatible Brand: Scania
• Product Type: Sacrificial pencil anode
• Material: Zinc
• Application: Marine engine cooling systems and heat exchangers
• Configuration: Anode Only
• Available Models: 02200, 02201
• Body Diameter: 17 mm
• Body Length: 45 mm
• Threaded Extension Length: 10 mm
• Available Threads: M12x1 and M6
• Pencil Type: T1
• Weight: 0.08 kg per anode

Available Models and Technical Specifications

Individual Model Specifications

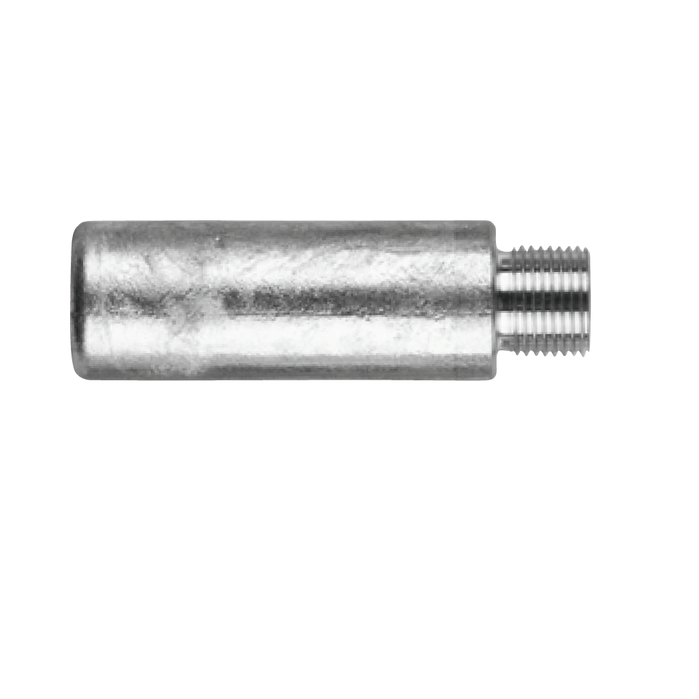

Tecnoseal 02200 – Scania Zinc Pencil Anode Ø17x45 mm M12x1

The Tecnoseal 02200 is a zinc pencil anode with a cylindrical body measuring 17 mm (0.67 in) in diameter and 45 mm (1.77 in) in length. Its integrated threaded mounting extension measures 10 mm (0.39 in) and uses an M12x1 connection.

Weighing 0.08 kg (0.18 lbs), this anode provides a replaceable sacrificial zinc element for compatible Scania marine engine cooling systems. It uses the Tecnoseal T1 pencil configuration and is supplied without a brass mounting plug.

• Product Code: 02200
• Material: Zinc
• Diameter (Ø): 17 mm (0.67 in)
• Body Length (l): 45 mm (1.77 in)
• Threaded Extension (l1): 10 mm (0.39 in)
• Mounting Thread (b): M12x1
• Weight: 0.08 kg (0.18 lbs)
• Pencil Type: T1
• EAN: 8033837067641
• Supply: Zinc anode only

Tecnoseal 02201 – Scania Zinc Pencil Anode Ø17x45 mm M6

The Tecnoseal 02201 features a 17 mm (0.67 in) diameter zinc body measuring 45 mm (1.77 in) in length. Its threaded mounting extension is 10 mm (0.39 in) long and uses an M6 connection, distinguishing it from the M12x1 version.

This model corresponds to Scania original part number 1331818 and weighs 0.08 kg (0.18 lbs). It uses the Tecnoseal T1 configuration and is supplied as a separate zinc sacrificial anode without a brass mounting plug.

• Product Code: 02201
• Original Scania Part Number: 1331818
• Material: Zinc
• Diameter (Ø): 17 mm (0.67 in)
• Body Length (l): 45 mm (1.77 in)
• Threaded Extension (l1): 10 mm (0.39 in)
• Mounting Thread (b): M6
• Weight: 0.08 kg (0.18 lbs)
• Pencil Type: T1
• EAN: 8033837067665
• Supply: Zinc anode only

Application and Compatibility

These Tecnoseal zinc pencil anodes are listed for Scania marine engine applications. Both versions have identical zinc body dimensions but different threaded mounting connections.

• Scania marine engine cooling systems
• Compatible marine engine heat exchangers
• Replacement of sacrificial zinc pencil anodes
• Existing mounting fittings with M12x1 or M6 connections, depending on the model

Model Selection

Select the correct Tecnoseal Scania pencil anode according to the threaded mounting connection. Both models measure 17 mm in diameter and 45 mm in body length, with a 10 mm threaded extension.

The 02200 features an M12x1 thread, while the 02201 uses an M6 thread and corresponds to Scania OEM part number 1331818. Despite sharing the same body dimensions, these models are not interchangeable without matching the mounting thread.

Confirm the existing anode dimensions, thread specification and Scania engine requirements before ordering.

Supply: Both models are supplied individually as zinc sacrificial pencil anodes without brass mounting plugs.
