Tecnoseal Ruggerini Zinc Pencil Anode Ø20x23 mm

Name: Tecnoseal Ruggerini Zinc Pencil Anode Ø20x23 mm
SKU: Tecnoseal 02380
Price: 23.806855677163 USD
Availability: InStock

ID 1406013

$ 23.81

1-2 weeks delivery time

- +

Add to cart

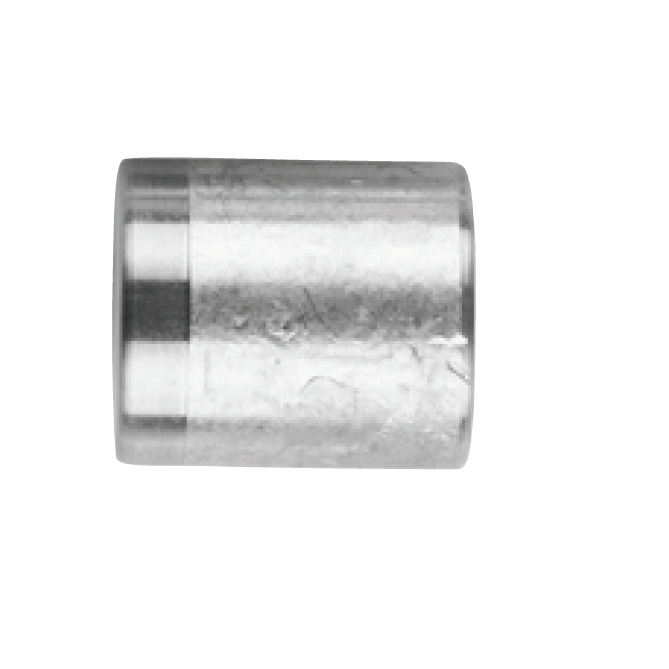

The Tecnoseal 02380 is a cylindrical zinc sacrificial pencil anode designed for compatible Ruggerini marine engine cooling systems. It measures 20 mm (0.79 in) in diameter and 23 mm (0.91 in) in length, weighing 0.05 kg (0.11 lbs). Unlike threaded pencil anodes, this model features the Tecnoseal T4 plain cylindrical configuration without a projecting threaded mounting section. It helps protect metallic cooling system components against galvanic corrosion and is supplied individually as a zinc anode only, without a brass mounting plug.

Description
Ask a Question

Tecnoseal 02380 Ruggerini Zinc Pencil Anode Ø20x23 mm

The Tecnoseal 02380 is a cylindrical zinc sacrificial anode designed for compatible Ruggerini marine engine applications. It provides a replaceable zinc element to help protect metallic components exposed to cooling water against galvanic corrosion.

The anode measures 20 mm (0.79 in) in diameter and 23 mm (0.91 in) in length. Its compact cylindrical body follows the Tecnoseal T4 configuration, without the projecting threaded mounting extension found on T1 and T2 pencil anodes.

Weighing 0.05 kg (0.11 lbs), the Tecnoseal 02380 is supplied as a zinc anode only, without a brass mounting plug. Its dimensions and plain cylindrical configuration should be checked against the existing component before replacement.

Key Features

Manufacturer: Tecnoseal
Product Code: 02380
Compatible Brand: Ruggerini
Product Type: Sacrificial pencil anode
Material: Zinc
Shape: Cylindrical
Configuration: Anode Only
Body Diameter: 20 mm
Body Length: 23 mm
Pencil Type: T4
Weight: 0.05 kg

Technical Specifications

Specification	Value
Product Code	02380
Material	Zinc
Diameter (Ø)	20 mm / 0.79 in
Length (l)	23 mm / 0.91 in
Weight	0.05 kg / 0.11 lbs
Pencil Type	T4
EAN	8033837067832
Supply	Zinc anode only

Application and Compatibility

The Tecnoseal 02380 is listed in the Ruggerini section of the manufacturer catalogue. It is intended for compatible Ruggerini marine engine installations requiring a cylindrical zinc anode measuring 20 mm in diameter and 23 mm in length.

Ruggerini marine engine applications
Compatible marine engine cooling systems
Replacement of cylindrical sacrificial zinc anodes
Installations requiring the Tecnoseal T4 anode configuration

Installation and Replacement

Before ordering, compare the existing anode with the Tecnoseal 02380 dimensions and configuration. The body measures 20 mm in diameter and 23 mm in length and has no projecting threaded mounting section.

The sacrificial zinc element should be inspected periodically and replaced when sufficiently consumed by corrosion. Confirm compatibility with the existing Ruggerini engine installation before fitting.

Supply: One cylindrical zinc sacrificial anode without brass mounting plug.
