Tecnoseal AA301671 Reintjes A292 Zinc Pencil Anode Ø14x83 mm with 3/8" BSPP Brass Plug

Tecnoseal 02962T / AA301671 Reintjes A292 Zinc Pencil Anode Ø14x83 mm with 3/8" BSPP Brass Plug

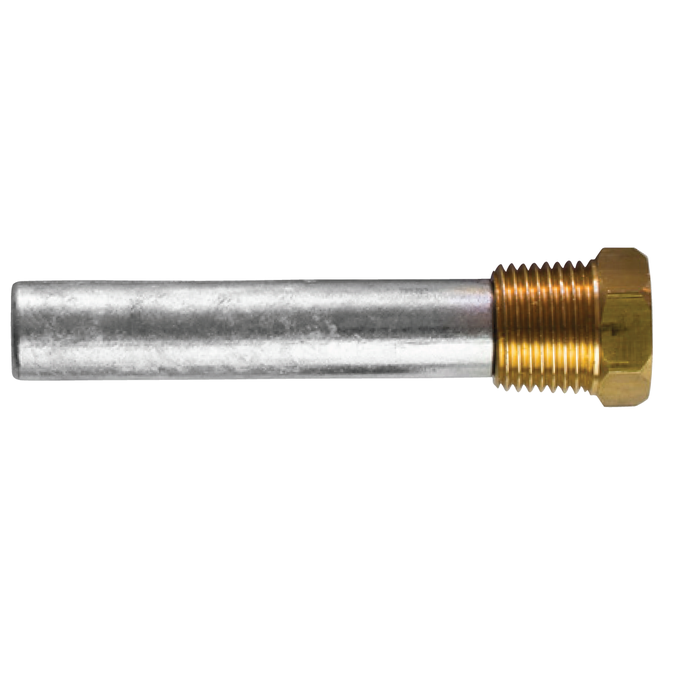

The Tecnoseal 02962T is a zinc sacrificial pencil anode designed for Reintjes marine gearbox applications. It is listed for the Reintjes A292 gearbox, position 292, and corresponds to original part number AA301671. The assembly combines a cylindrical zinc anode with a brass mounting plug to provide sacrificial corrosion protection for compatible components exposed to water.

The zinc rod measures 14 mm (0.55 in) in diameter and 83 mm (3.27 in) in length. The brass mounting plug features a 3/8" GAS (BSPP) parallel threaded connection and a 19 mm (0.75 in) head dimension, allowing installation into the corresponding gearbox fitting.

The complete assembly weighs 0.12 kg (0.26 lbs) and uses the Tecnoseal 2T pencil configuration. Both the zinc anode and brass mounting plug are supplied together, making the 02962T a complete replacement assembly for the specified Reintjes application.

Key Features

• Manufacturer: Tecnoseal
• Product Code: 02962T
• Compatible Brand: Reintjes
• Gearbox: Reintjes A292
• Gearbox Position: 292
• Original Part Number: AA301671
• Product Type: Sacrificial pencil anode with brass plug
• Anode Material: Zinc
• Plug Material: Brass
• Configuration: Complete with Brass Plug
• Zinc Rod Diameter: 14 mm
• Zinc Rod Length: 83 mm
• External Plug Thread: 3/8" GAS (BSPP)
• Plug Head Dimension: 19 mm
• Pencil Type: 2T
• Weight: 0.12 kg

Technical Specifications

Reintjes Gearbox Compatibility

The Tecnoseal 02962T is listed in the Reintjes section of the manufacturer catalogue with the following replacement references:

• Gearbox: Reintjes A292
• Gearbox Position: 292
• Original Part Number: AA301671
• Tecnoseal Replacement Code: 02962T

Confirm the gearbox designation, original part number and mounting dimensions before ordering to ensure compatibility with the existing installation.

Application and Replacement

The Tecnoseal 02962T is intended for compatible Reintjes marine gearbox installations requiring a complete zinc pencil anode assembly with a 3/8" BSPP threaded brass plug.

The sacrificial zinc element provides corrosion protection for metal components exposed to water. During routine gearbox maintenance, inspect the existing anode and replace it when sufficiently consumed.

The 02962T is supplied complete with its brass plug, allowing replacement of the zinc rod and mounting fitting together.

Installation and Model Selection

Before ordering, compare the existing assembly with the Tecnoseal 02962T dimensions. The zinc rod measures 14 mm in diameter and 83 mm in length. Its brass mounting plug uses a 3/8" GAS (BSPP) parallel thread and has a 19 mm head dimension.

Pay particular attention to the thread specification. The 3/8" GAS (BSPP) connection is a parallel thread and should not be confused with a 3/8" BSPT tapered mounting thread.

Supply: One zinc pencil anode complete with brass mounting plug.
