The Tecnoseal Bukh Pencil Anode is a zinc sacrificial anode assembly available as a replacement zinc element (02053), a separate brass mounting plug (02053TP), or a complete assembly (02053T). The zinc element measures 10 mm in diameter and 18 mm in length, with an 8 mm additional section (l1) and an 8.5 mm connection dimension (b). The brass plug features a 1/4" GAS CONICO (BSPT) tapered thread, an 8.5 mm connection dimension and a 17 mm head dimension. The zinc anode weighs 0.02 kg (0.04 lbs), while the brass plug weighs 0.05 kg (0.11 lbs). Additional Tecnoseal catalogue references are 02070 and 02351.
- Description
- Ask a Question
-
Tecnoseal Bukh Pencil Anode Ø10 x 18 mm with Optional 1/4" BSPT Brass Plug
The Tecnoseal Bukh Pencil Anode is a zinc sacrificial anode designed for corrosion protection of compatible marine engine components. It is available as a zinc anode only (02053), a separate brass plug (02053TP), or a complete zinc anode and brass plug assembly (02053T). The Tecnoseal catalogue also lists references 02070 and 02351 under "same as".
The zinc pencil anode measures 10 mm in diameter and 18 mm in length, with an additional section (l1) measuring 8 mm and a connection dimension (b) of 8.5 mm. The separately available brass plug features a 1/4" GAS CONICO (BSPT) tapered thread, an 8.5 mm connection dimension and a 17 mm hexagonal head dimension.
Technical Specifications
Manufacturer Tecnoseal Product Type Pencil Anode / Brass Plug Assembly Application Bukh Marine Engines Anode Material Zinc Plug Material Brass Additional Catalogue References 02070, 02351 Available Configurations Anode Only, Brass Plug Only, Complete Assembly
Available Versions
Tecnoseal Part Number Configuration Catalogue Weight 02053 Zinc Pencil Anode Only 0.02 kg (0.04 lbs) 02053TP Brass Plug Only 0.05 kg (0.11 lbs) 02053T Complete Zinc Anode with Brass Plug Not specified in the supplied catalogue extract

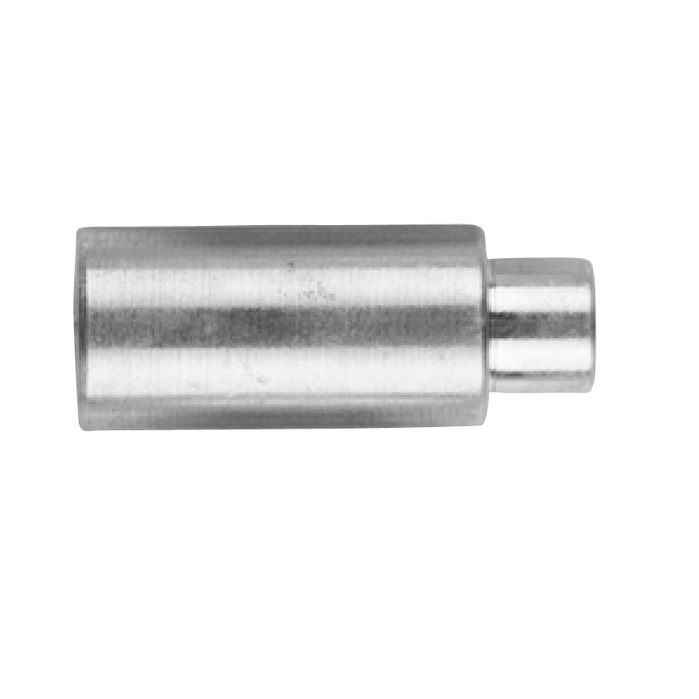

Zinc Pencil Anode Dimensions – Tecnoseal 02053
Dimension Measurement Diameter (Ø) 10 mm (0.39") Length (l) 18 mm (0.71") Additional Length (l1) 8 mm (0.31") Connection Dimension (b) 8.5 mm (0.33") Weight 0.02 kg (20 g)
Brass Plug Specifications – Tecnoseal 02053TP
Specification Measurement Material Brass External Thread (a) 1/4" GAS CONICO (BSPT) Connection Dimension (b) 8.5 mm (0.33") Hexagonal Head Dimension (c) 17 mm (0.67") Weight 0.05 kg (50 g)
Available Configurations
- Tecnoseal 02053: Zinc pencil anode only, without brass plug.
- Tecnoseal 02053TP: Brass mounting plug only, without zinc anode.
- Tecnoseal 02053T: Complete assembly consisting of zinc pencil anode and brass plug.
Key Features
- Zinc sacrificial pencil anode for Bukh marine engine applications.
- Replacement zinc element diameter: 10 mm.
- Zinc element length: 18 mm.
- Additional zinc element length: 8 mm.
- Brass plug with 1/4" GAS CONICO (BSPT) tapered thread.
- Brass plug hexagonal head dimension: 17 mm.
- Available as anode only, brass plug only or complete assembly.
- Additional Tecnoseal catalogue references: 02070 and 02351.
-
