The Tecnoseal 02054 is a zinc sacrificial collar anode designed for Bukh DV8L and DV10L saildrive units, corresponding to original OEM part number 008E8207. It features a circular, stepped collar with an outer diameter of 65 mm, a height of 12 mm, an inner diameter of 38 mm and an additional catalogue dimension (i) of 48 mm. Two mounting holes with a diameter of 5.5 mm are positioned on opposite sides of the collar. Weighing 0.12 kg (0.26 lbs), the anode provides sacrificial corrosion protection for compatible Bukh saildrive components.
- Description
- Ask a Question
-

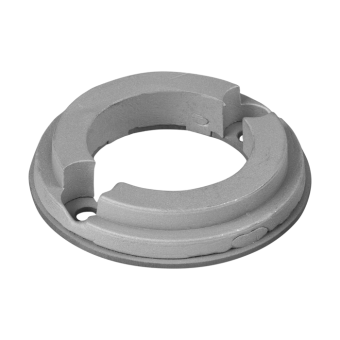

Tecnoseal 008E8207 Zinc Bukh Saildrive Collar Anode for DV8L and DV10L
The Tecnoseal 02054 is a zinc sacrificial collar anode designed for Bukh DV8L and DV10L saildrive units. It corresponds to original Bukh OEM part number 008E8207 and provides sacrificial corrosion protection for compatible saildrive components.

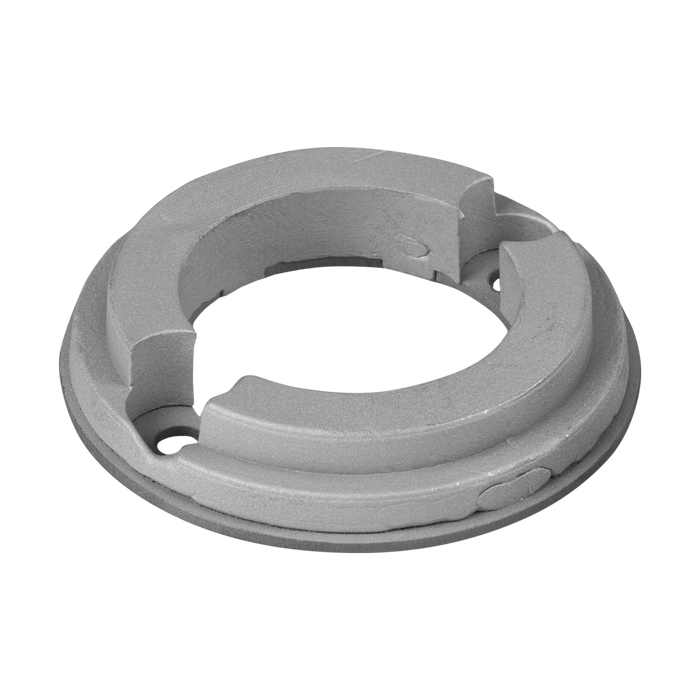

The anode features a circular collar-shaped body with a stepped profile, a central opening and two mounting holes positioned on opposite sides. Its outer diameter is 65 mm, overall height is 12 mm and inner diameter is 38 mm. The catalogue specifies an additional dimension (i) of 48 mm. Each mounting hole has a diameter of 5.5 mm. The zinc anode weighs 0.12 kg (0.26 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 02054 OEM Reference Bukh 008E8207 Product Type Saildrive Collar Anode Material Zinc Compatibility Bukh DV8L, DV10L Construction Stepped circular collar with two mounting holes Weight 0.12 kg (0.26 lbs)
Dimensions
Dimension Measurement Outer Diameter (Ø) 65 mm (2.56") Height (h) 12 mm (0.47") Additional Dimension (i) 48 mm (1.89") Inner Diameter (Ø1) 38 mm (1.50") Mounting Hole Diameter (Ø2) 5.5 mm (0.22")
Key Features
- Zinc sacrificial collar anode for Bukh saildrive applications.
- Compatible with Bukh DV8L and DV10L saildrives.
- Corresponds to original Bukh OEM part number 008E8207.
- Circular stepped collar design with a central opening.
- Two mounting holes positioned on opposite sides of the collar.
- Outer diameter: 65 mm.
- Inner diameter: 38 mm.
- Height: 12 mm.
- Additional catalogue dimension (i): 48 mm.
- Mounting hole diameter: 5.5 mm.
- Weight: 0.12 kg (120 g).
-
