The Tecnoseal Bukh Pencil Anode is designed for Bukh DV10, DV20 and DV24 marine engines, corresponding to original OEM part number 00E0450 (2-62050). Three configurations are available: zinc pencil anode only (02050), brass plug only (02050TP), and complete zinc pencil anode with brass plug (02050T). The zinc anode measures 12 mm in diameter and 35 mm in length, with an M5 connection and an 8 mm threaded section indicated in the catalogue. The brass plug features a 3/8" GAS (BSPP) external thread, an M5 connection and a 22 mm head dimension. The individual catalogue weights are 0.03 kg for the anode, 0.04 kg for the brass plug and 0.07 kg for the complete assembly.
- Description
- Ask a Question
-
Tecnoseal Bukh Pencil Anode Ø12 x 35 mm with Optional 3/8" BSPP Brass Plug – DV10, DV20, DV24
The Tecnoseal Bukh Pencil Anode is designed for Bukh DV10, DV20 and DV24 marine engines. It corresponds to original Bukh OEM part number 00E0450 (2-62050). The zinc pencil anode provides sacrificial corrosion protection for compatible engine components and is available separately or as a complete assembly with a brass mounting plug.
The product is offered in three configurations: zinc anode only (02050), brass plug only (02050TP), and complete zinc anode with brass plug (02050T). The zinc element measures 12 mm in diameter and 35 mm in length, with an M5 threaded connection. The brass plug features a 3/8" GAS (BSPP) thread, an M5 connection and a 22 mm head dimension.
Technical Specifications
Manufacturer Tecnoseal Product Type Pencil Anode / Brass Plug Assembly OEM Reference Bukh 00E0450 (2-62050) Engine Compatibility Bukh DV10, DV20, DV24 Anode Material Zinc Plug Material Brass Available Configurations Anode Only, Brass Plug Only, Complete Assembly
Available Versions
Tecnoseal Part Number Configuration Weight 02050 Zinc Pencil Anode Only 0.03 kg (0.07 lbs) 02050TP Brass Plug Only 0.04 kg (0.09 lbs) 02050T Zinc Pencil Anode Complete with Brass Plug 0.07 kg (0.15 lbs)

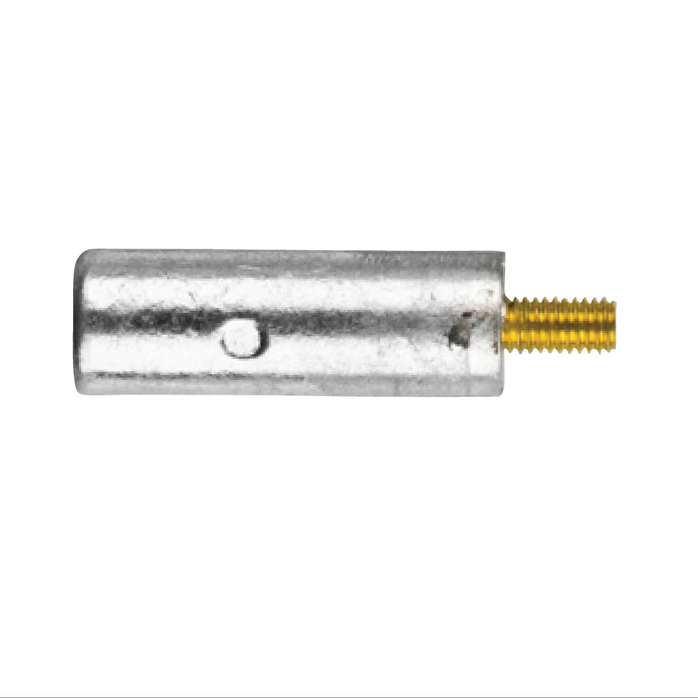

Zinc Pencil Anode Dimensions – Tecnoseal 02050
Dimension Measurement Diameter (Ø) 12 mm (0.47") Length (l) 35 mm (1.38") Threaded Section (l1) 8 mm (0.31") Connection Thread (b) M5 Weight 30 g
Brass Plug Specifications – Tecnoseal 02050TP
Specification Measurement Material Brass External Thread (a) 3/8" GAS (BSPP) Anode Connection (b) M5 Head Dimension (c) 22 mm (0.87") Weight 40 g
Complete Assembly – Tecnoseal 02050T
- Included Components: Zinc pencil anode and brass plug.
- Zinc Anode Diameter: 12 mm.
- Zinc Anode Length: 35 mm.
- Brass Plug External Thread: 3/8" GAS (BSPP).
- Connection Thread: M5.
- Brass Plug Head Dimension: 22 mm.
- Total Catalogue Weight: 0.07 kg (70 g).
Key Features
- Designed for Bukh DV10, DV20 and DV24 marine engines.
- Corresponds to original Bukh OEM reference 00E0450 (2-62050).
- Zinc pencil anode for sacrificial corrosion protection.
- Three purchasing configurations: anode only, brass plug only or complete assembly.
- Zinc anode dimensions: Ø12 x 35 mm.
- M5 connection between the anode and brass plug.
- Brass plug with 3/8" GAS (BSPP) external thread.
- Individual catalogue weights: 30 g, 40 g and 70 g.
-
